Manifold for Pixis Epoch LA300A
Click on the part subgroup below to get genuine part numbers.

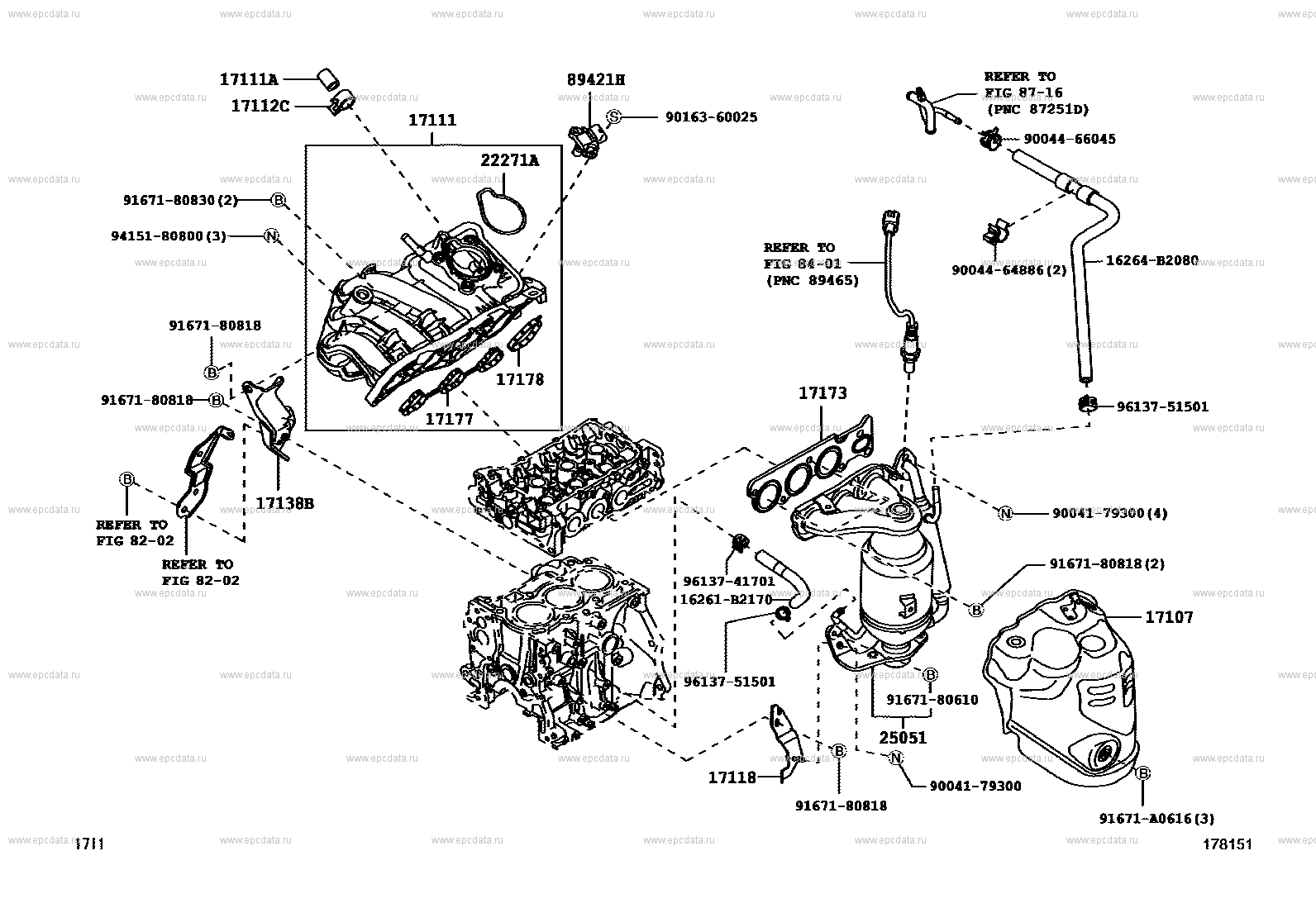

Scheme 1
| (1204-1306) |
Click part number in the scheme or in the list: ** 82-02** 84-01 17107 INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT 17111 MANIFOLD, INTAKE 17111A PLUG, NO.1 17112C CLIP(FOR INTAKE MANIFOLD) 17118 STAY, MANIFOLD 17138B STAY, INTAKE MANIFOLD 17173 GASKET, EXHAUST MANIFOLD TO HEAD 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17178 GASKET, INTAKE MANIFOLD TO HEAD, NO.2 22271A GASKET, THROTTLE BODY 25051 CONVERTER SUB-ASSY, EXHAUST MANIFOLD 89421H SENSOR, VACUUM 9004179300 ** Std Part 9016360025 ** Std Part 9167180818 ** Std Part 9167180822 ** Std Part 91671A0616 ** Std Part 9167180830 ** Std Part 9415180800 ** Std Part |
Scheme 2
| (1306-1307) |
Click part number in the scheme or in the list: ** 84-0117107 INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT 17111 MANIFOLD, INTAKE 17111A PLUG, NO.1 17112C CLIP(FOR INTAKE MANIFOLD) 17118 STAY, MANIFOLD 17173 GASKET, EXHAUST MANIFOLD TO HEAD 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17178 GASKET, INTAKE MANIFOLD TO HEAD, NO.2 22271A GASKET, THROTTLE BODY 25051 CONVERTER SUB-ASSY, EXHAUST MANIFOLD 89421H SENSOR, VACUUM 9004179300 ** Std Part 9016360025 ** Std Part 9167180818 ** Std Part 91671A0616 ** Std Part 9167180830 ** Std Part 9415180800 ** Std Part ** 82-02 17138B STAY, INTAKE MANIFOLD |
Scheme 3
