Heating & air conditioning - cooler unit for Passo KGC30
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(1002- ) ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 88539J HOSE, DRAIN COOLER88897K GROMMET, (FOR COOLER PIPE) 88899B1010 ** Std Part 9004119184 ** Std Part 9004120075 ** Std Part 9004179142 ** Std Part 88899B2010 ** Std Part 87139D ELEMENT, AIR REFINER 88548B CASE, AIR FILTER |

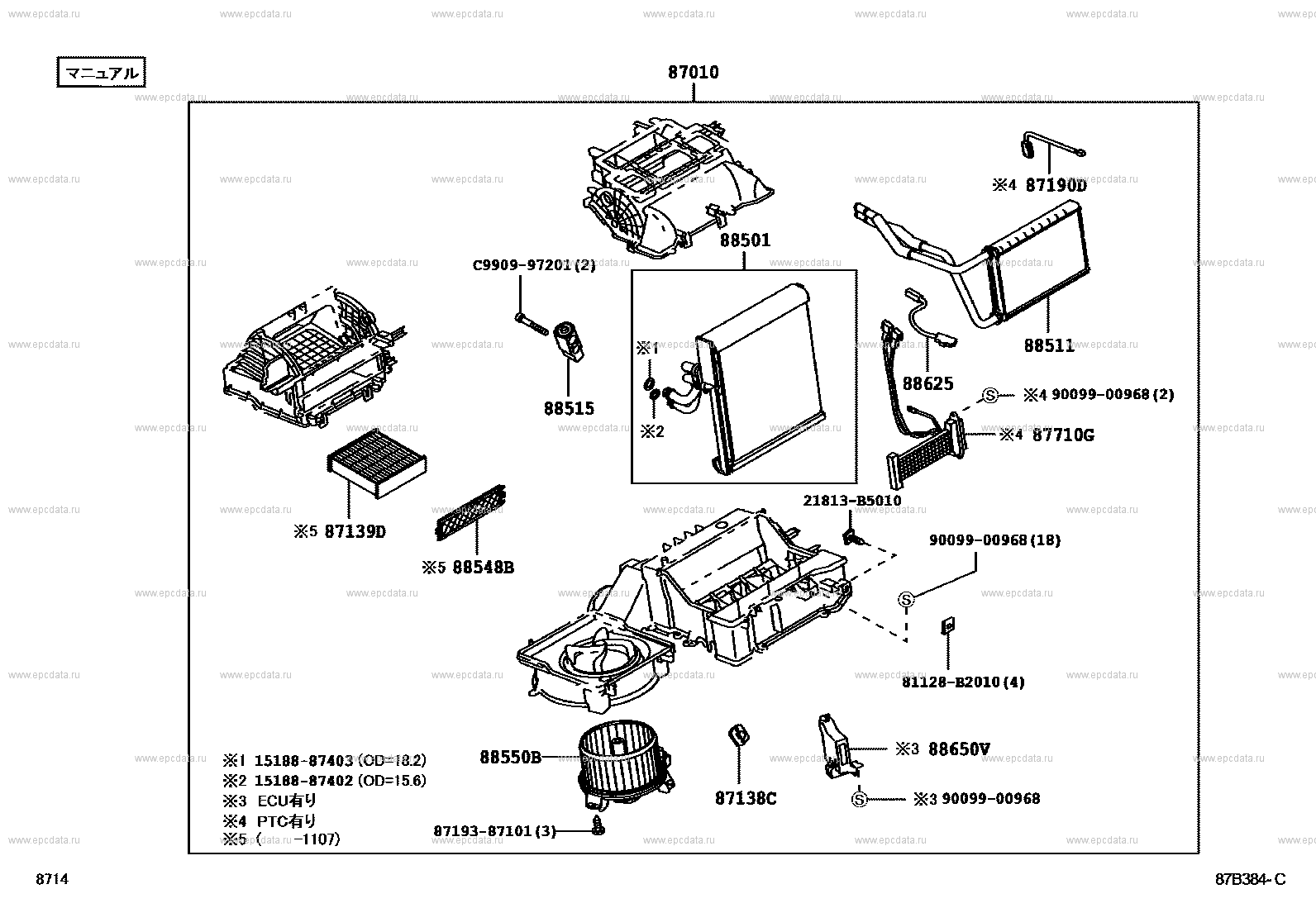

Scheme 2
|
(1002- )KGC30 ; (1002- )KGC35..X ﾏﾆｭｱﾙ ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 87010 UNIT ASSY, AIR CONDITIONER87138C RESISTOR, BLOWER 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 88511 CORE, EVAPORATOR 88515 VALVE, COOLER EXPANSION 88548B CASE, AIR FILTER 88550B MOTOR ASSY, BLOWER 88625 THERMISTOR, COOLER, NO.1 88650V AMPLIFIER ASSY, AIR CONDITIONER, NO.2 87710G QUICK HEATER ASSY 87190D SWITCH ASSY, TEMPERATURE CONTROL 1518887402 ** Std Part 1518887403 ** Std Part 21813B5010 ** Std Part 8719387101 ** Std Part 9009900968 ** Std Part C990997201 ** Std Part 81128B2010 ** Std Part 87139D ELEMENT, AIR REFINER |
Scheme 3
|
(1002- ) ｵｰﾄ ILLUST NO. 3 OF 3 |
Click part number in the scheme or in the list: 87010 UNIT ASSY, AIR CONDITIONER87138C RESISTOR, BLOWER 87139D ELEMENT, AIR REFINER 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 88511 CORE, EVAPORATOR 88515 VALVE, COOLER EXPANSION 88548B CASE, AIR FILTER 88550B MOTOR ASSY, BLOWER 88625 THERMISTOR, COOLER, NO.1 88650E AMPLIFIER ASSY, AIR CONDITIONER, NO.1 88650V AMPLIFIER ASSY, AIR CONDITIONER, NO.2 88660B SERVO ASSY, AIR CONDITIONER, NO.2 88660A SERVO ASSY, AIR CONDITIONER, NO.1 1518887402 ** Std Part 1518887403 ** Std Part 21813B5010 ** Std Part 8719387101 ** Std Part 9009900968 ** Std Part C990997201 ** Std Part 88660B1030 ** Std Part 81128B2010 ** Std Part 87710G QUICK HEATER ASSY |
