Vacuum piping for Opa ZCT10

Click on the part subgroup below to get genuine part numbers.

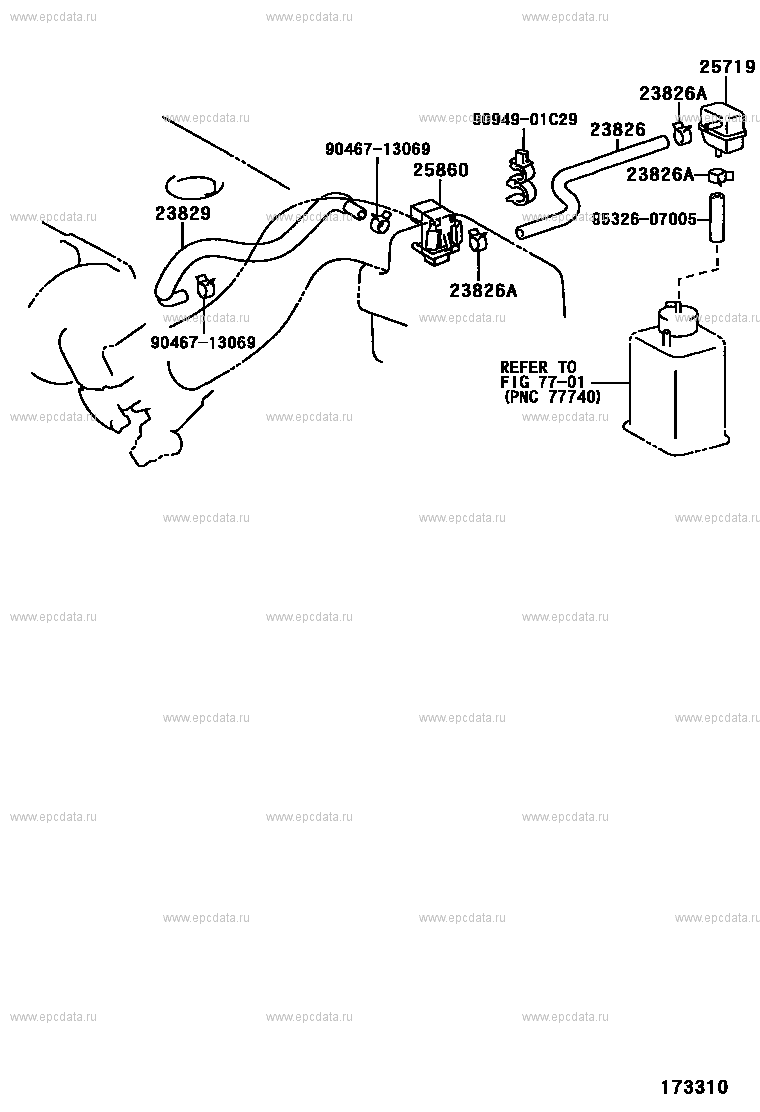

Scheme 1

(0004-0205)1ZZFE Open full size scheme Go to top

Click part number in the scheme or in the list: 25719 TANK, VACUUM SURGE 23826A CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 9094901C29 ** Std Part 23826 HOSE, FUEL VAPOR FEED, NO.1 9046713069 ** Std Part 25860 VALVE ASSY, VACUUM SWITCHING, NO.1 23829 HOSE, FUEL VAPOR FEED, NO.3 9532607005 ** Std Part ** 77-01

Scheme 2

(0205- )1ZZFE Open full size scheme Go to top

Click part number in the scheme or in the list: 9046713069 ** Std Part 23826 HOSE, FUEL VAPOR FEED, NO.1 25860A VALVE, VACUUM SWITCHING, NO.1 23829 HOSE, FUEL VAPOR FEED, NO.3 23826A CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) ** 77-01

Opa ZCT10
