ToyotaNadiaSXN15SXN15H-AHSGKBody and interiorFront seat & seat track

Front seat & seat track for Nadia SXN15

Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5

Click on the part subgroup below to get genuine part numbers.

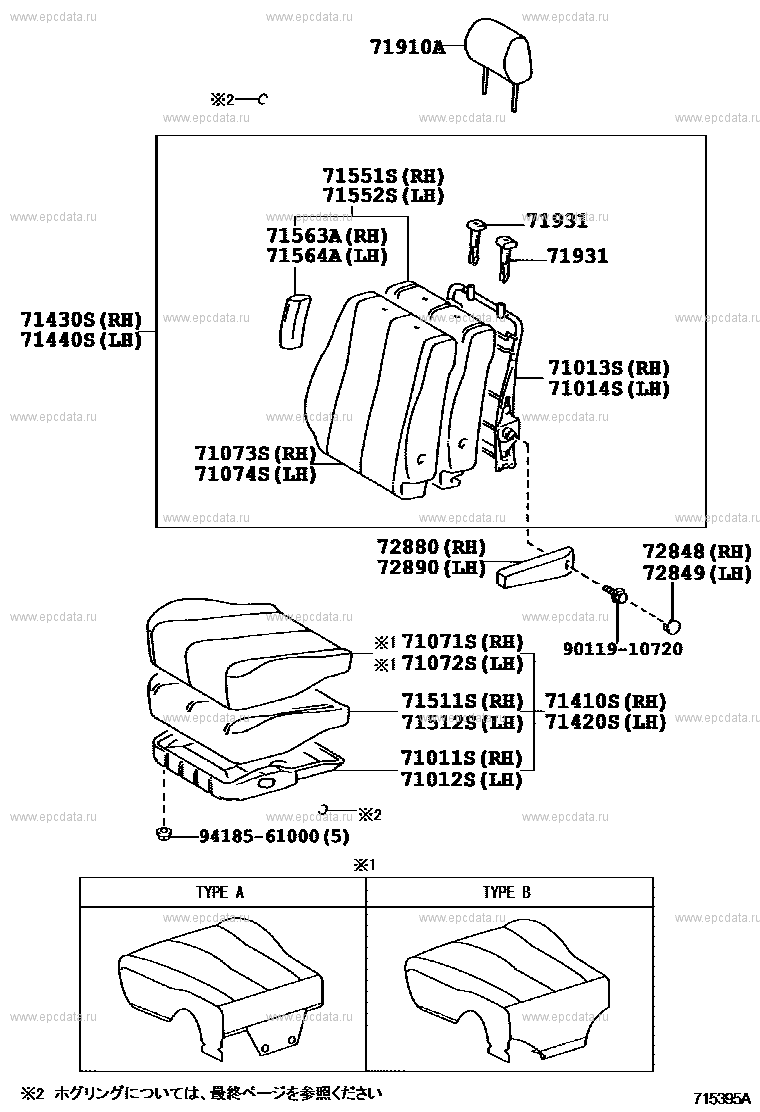

Scheme 1

(9807-0104)
ILLUST NO. 1 OF 3

Click part number in the scheme or in the list:

71910A HEADREST ASSY, FRONT SEAT
71551S PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552S PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71563A PAD, FRONT SEAT BACK SIDE, RH
71564A PAD, FRONT SEAT BACK SIDE, LH
71430S BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440S BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71073S COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71074S COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71931 SUPPORT, FRONT SEAT HEADREST
71013S FRAME SUB-ASSY, FRONT SEAT BACK, RH
71014S FRAME SUB-ASSY, FRONT SEAT BACK, LH
72880 ARMREST ASSY, SEAT, C RH
72890 ARMREST ASSY, SEAT, C LH
72848 CAP, NO.3 SEAT ARMREST
72849 CAP, SEAT ARMREST, NO.2
9011910720 ** Std Part
71410S CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71420S CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71071S COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71072S COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71511S PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512S PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71011S FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71012S FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
9418561000 ** Std Part

Scheme 2

(9807-0104)
ILLUST NO. 2 OF 3

Click part number in the scheme or in the list:

72501D PIPE SUB-ASSY, RECLINING CONNECTING, RH
9151581025 ** Std Part
72501E PIPE SUB-ASSY, RECLINING CONNECTING, LH
72525A HANDLE, RECLINING ADJUSTER RELEASE, RH
72011 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
9016740044 ** Std Part
72129 PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72992 COVER, FRONT SEAT CUSHION, LH
72125A COVER, SEAT TRACK, UPPER REAR
72022 ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
71811D SHIELD, FRONT SEAT CUSHION, RH
71598 PLATE, SEAT COVER
71862 SHIELD, FRONT SEAT CUSHION, INNER LH
71599 PLATE, SEAT COVER, NO.2
72201A HANDLE SUB-ASSY, SEAT TRACK RH
72201B HANDLE SUB-ASSY, SEAT TRACK LH
91511B0816 ** Std Part
72021 ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72012 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
71812D SHIELD, FRONT SEAT CUSHION, LH
71861 SHIELD, FRONT SEAT CUSHION, INNER RH
72991 COVER, FRONT SEAT CUSHION, RH
72526 HANDLE, RECLINING ADJUSTER RELEASE, LH

Scheme 3

(9807-0104)
ｶｲﾃﾝｼｷ ﾌﾛﾝﾄ ｼ-ﾄ ILLUST NO. 3 OF 3

Click part number in the scheme or in the list:

72973C COVER, FRONT SEAT TURN TABLE,NO.1
72973D COVER, FRONT SEAT TURN TABLE, NO.2
71139A COVER, FRONT SEAT LEG, NO.1
71139D COVER, FRONT SEAT LEG NO.1
9046804157 ** Std Part
72948A KNOB, SEAT TURN LOCK
72948B KNOB, SEAT TURN LOCK
** 84-01
72080 TABLE ASSY, FRONT SEAT TURN, RH
71139B COVER, FRONT SEAT LEG, NO.2
71139E COVER, FRONT SEAT LEG NO.2
9011910861 ** Std Part
9033340001 ** Std Part
72090A TABLE ASSY, FRONT SEAT TURN, LH
** 33-11

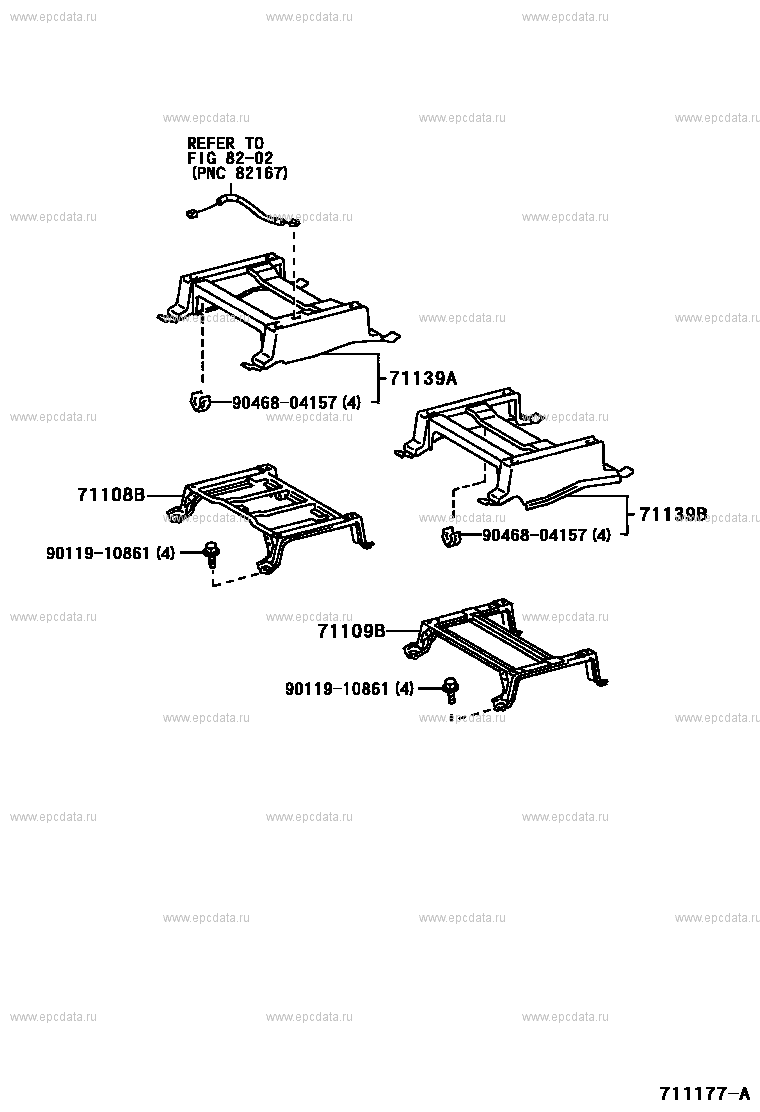

Scheme 4

(9807-0104)
ILLUST NO. 3 OF 3

Click part number in the scheme or in the list:

** 82-02
71139A COVER, FRONT SEAT LEG, NO.1
9046804157 ** Std Part
71108B LEG SUB-ASSY, FRONT SEAT, RH
71139B COVER, FRONT SEAT LEG, NO.2
9011910861 ** Std Part
71109B LEG SUB-ASSY, FRONT SEAT, LH

Scheme 5

(9807- )
ﾎｸﾞﾘﾝｸﾞ

Click part number in the scheme or in the list:

9046818008 ** Std Part
9046816019 ** Std Part
