Wiring & clamp for Nadia SXN10
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(9807- ) ｴﾝｼﾞﾝ ﾙｰﾑ ﾜｲﾔ ILLUST NO. 1 OF 9 |
Click part number in the scheme or in the list: 82818 PROTECTOR, WIRING HARNESS, NO.282111 WIRE, ENGINE ROOM MAIN 82210C FUSIBLE LINK ** 84-01 827113F230 ** Std Part 82823 CAP, TERMINAL, NO.1 82817 PROTECTOR, WIRING HARNESS, NO.1 8271237210 ** Std Part 827111E070 ** Std Part 9011906915 ** Std Part 827113F040 ** Std Part |
Scheme 2
|
(9807-0104)D4 ｴﾝｼﾞﾝ ﾜｲﾔ ILLUST NO. 2 OF 9 |
Click part number in the scheme or in the list: 91621J0612 ** Std Part82121 WIRE, ENGINE ** 82-01 82122 WIRE, ENGINE, NO.2 8271195411 ** Std Part 82123 WIRE, ENGINE, NO.3 9011906390 ** Std Part 9212260612 ** Std Part 9017906311 ** Std Part 9010508225 ** Std Part 8271533140 ** Std Part 8271544190 ** Std Part 8271124420 ** Std Part 8271137050 ** Std Part 8271532450 ** Std Part 8271532460 ** Std Part 8271532470 ** Std Part 8271544070 ** Std Part 8271544140 ** Std Part |
Scheme 3
|
(9807- ) ｶｳﾙ ﾜｲﾔ ILLUST NO. 3 OF 9 |
Click part number in the scheme or in the list: 82132 WIRE, COWL, NO.29015970004 ** Std Part 9356855014 ** Std Part 8271244170 ** Std Part ** 84-01 8271244020 ** Std Part 82210C FUSIBLE LINK 9015970003 ** Std Part ** 86-01 82666B HOLDER, CONNECTOR NO.3 82666C HOLDER, CONNECTOR NO.4 82666A HOLDER, CONNECTOR NO.2 82131 WIRE, COWL |
Scheme 4
|
(9807- ) ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ﾜｲﾔ ILLUST NO. 4 OF 9 |
Click part number in the scheme or in the list: 82141 WIRE, INSTRUMENT PANEL82666F HOLDER, CONNECTOR NO.7 9415080600 ** Std Part |
Scheme 5
|
(9807- ) ﾄﾞｱ & ﾙｰﾌ ﾜｲﾔ ILLUST NO. 5 OF 9 |
Click part number in the scheme or in the list: 82171 WIRE, ROOF, NO.18271112770 ** Std Part 9011906915 ** Std Part 827111A750 ** Std Part 82153 WIRE, REAR DOOR, NO.1 82151 WIRE, FRONT DOOR, RH 827111E260 ** Std Part 82152 WIRE, FRONT DOOR, LH 82154 WIRE, REAR DOOR, NO.2 827111E300 ** Std Part 8271122300 ** Std Part |
Scheme 6
|
(9807- ) ﾌﾛｱ & ﾗﾂｹｰｼﾞ ﾜｲﾔ ILLUST NO. 6 OF 9 |
Click part number in the scheme or in the list: 82162 WIRE, FLOOR, NO.282164 WIRE, FRAME 82161 WIRE, FLOOR 82817A PROTECTOR, WIRING HARNESS, NO.2 8271544180 ** Std Part 82185 WIRE, BACK DOOR, NO.2 8271544160 ** Std Part 82214A WIRE, LAMP 82666G HOLDER, CONNECTOR NO.8 91626B0816 ** Std Part 82184 WIRE, BACK DOOR, NO.1 82163 WIRE, FLOOR, NO.3 9011906915 ** Std Part 82817B PROTECTOR, WIRING HARNESS, NO.3 ** 58-04 827111E300 ** Std Part 9011908848 ** Std Part 8271544390 ** Std Part |
Scheme 7
|

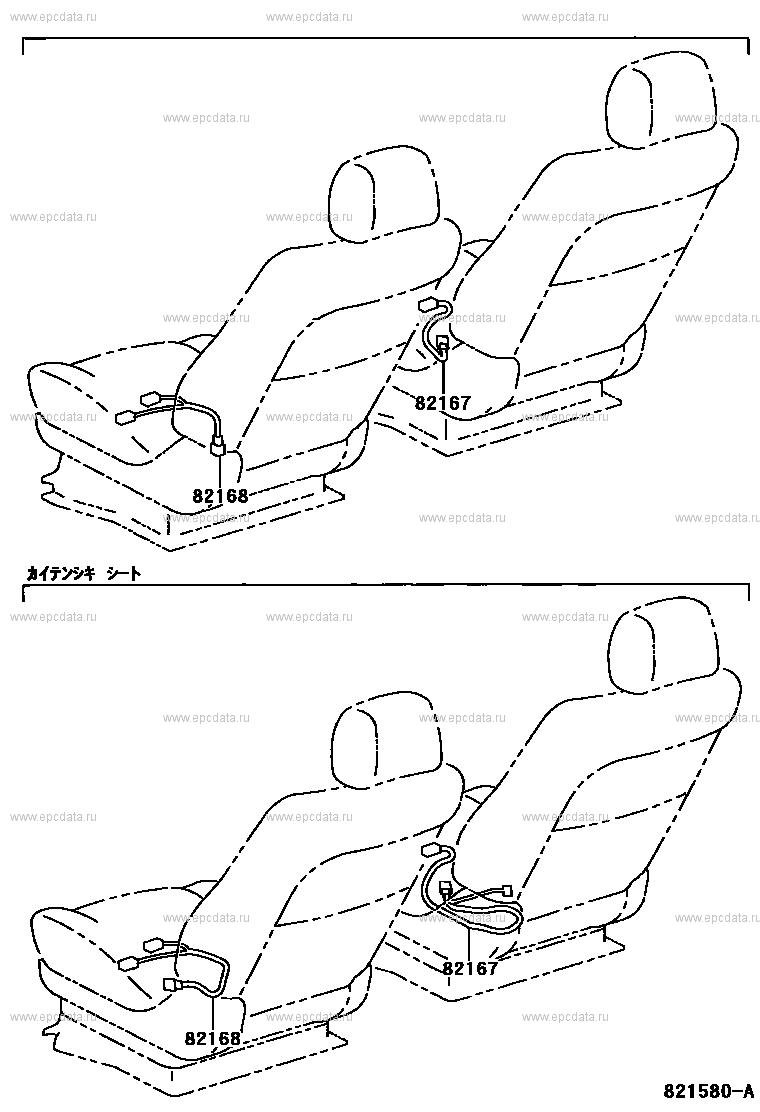

(9807-0104) ｼｰﾄ ﾜｲﾔ ILLUST NO. 7 OF 9 |
Click part number in the scheme or in the list: 82167 WIRE, SEAT, NO.182168 WIRE, SEAT, NO.2 |
Scheme 8
|
(9807-0208)SXN1# ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ ILLUST NO. 8 OF 9 |
Click part number in the scheme or in the list: 9010510197 ** Std Part82001 CABLE, BOND, NO.1 9011906390 ** Std Part |
Scheme 9
|
(9807- ) ｺﾈｸﾀ ILLUST NO. 9 OF 9 |
Click part number in the scheme or in the list: 9098010869 ** Std Part9098011314 ** Std Part 9098011016 ** Std Part 9098011149 ** Std Part 9098011156 ** Std Part 9098011019 ** Std Part 9098010481 ** Std Part 9098011159 ** Std Part 9098011660 ** Std Part 9098010619 ** Std Part 9098010797 ** Std Part 9098011148 ** Std Part |
