Heating & air conditioning - compressor for MR2 SW20
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(8912- ) ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 9411040800 ** Std Part9451100800 ** Std Part 9009907114 ** Std Part 9009907131 ** Std Part 9331915008 ** Std Part 9009907087 ** Std Part 9009935012 ** Std Part 9009910133 ** Std Part 9009907127 ** Std Part 88302 STATOR SUB-ASSY, MAGNET CLUTCH 88403 HUB SUB-ASSY, MAGNET CLUTCH 88301 ROTOR SUB-ASSY, MAGNET CLUTCH 88410 CLUTCH ASSY, MAGNET 88320 COMPRESSOR ASSY, COOLER 88330A WASHER (FOR MAGNET CLUTCH) |

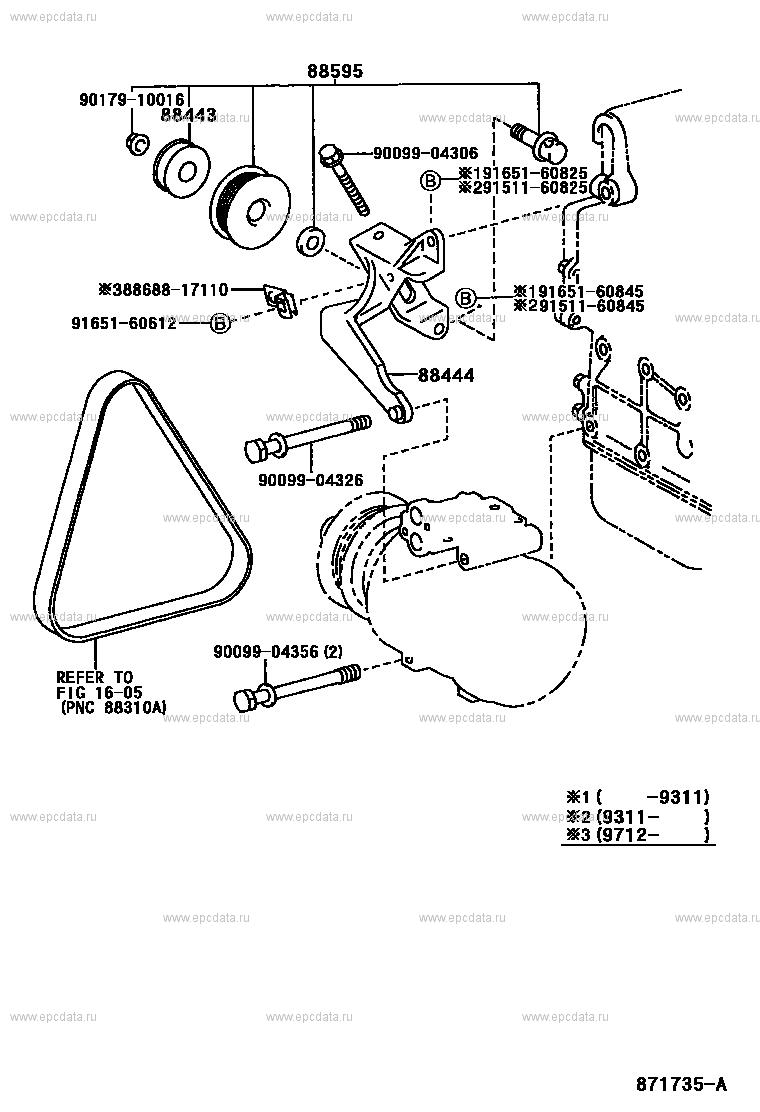

Scheme 2
|
(8912- ) ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 88595 PULLEY, COOLER COMPRESSOR IDLE9017910016 ** Std Part 88443 COLLAR, IDLE PULLEY 9009904306 ** Std Part 9165160825 ** Std Part 9151160825 ** Std Part 8868817110 ** Std Part 9165160845 ** Std Part 9151160845 ** Std Part 9165160612 ** Std Part 88444 BRACKET, IDLE PULLEY 9009904326 ** Std Part 9009904356 ** Std Part ** 16-05 |
