Heating & air conditioning - control & air duct for MR2 SW20

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(8912- ) HEATER CONTROL ILLUST NO. 1 OF 3 Open full size scheme Go to top

Click part number in the scheme or in the list: 9048013015 ** Std Part 55900 CONTROL ASSY, AIR CONDITIONER 55907A CABLE SUB-ASSY, WATER VALVE CONTROL 55934A RETAINER, HEATER CONTROL CABLE 55900B BULB, AIR CONDITIONER CONTROL 55900C CAP, AIR CONDITIONER CONTROL BULB ** 84-01 55905A KNOB, HEATER CONTROL 55905B KNOB, HEATER CONTROL, NO.2 9356755016 ** Std Part 9018305027 ** Std Part

Scheme 2

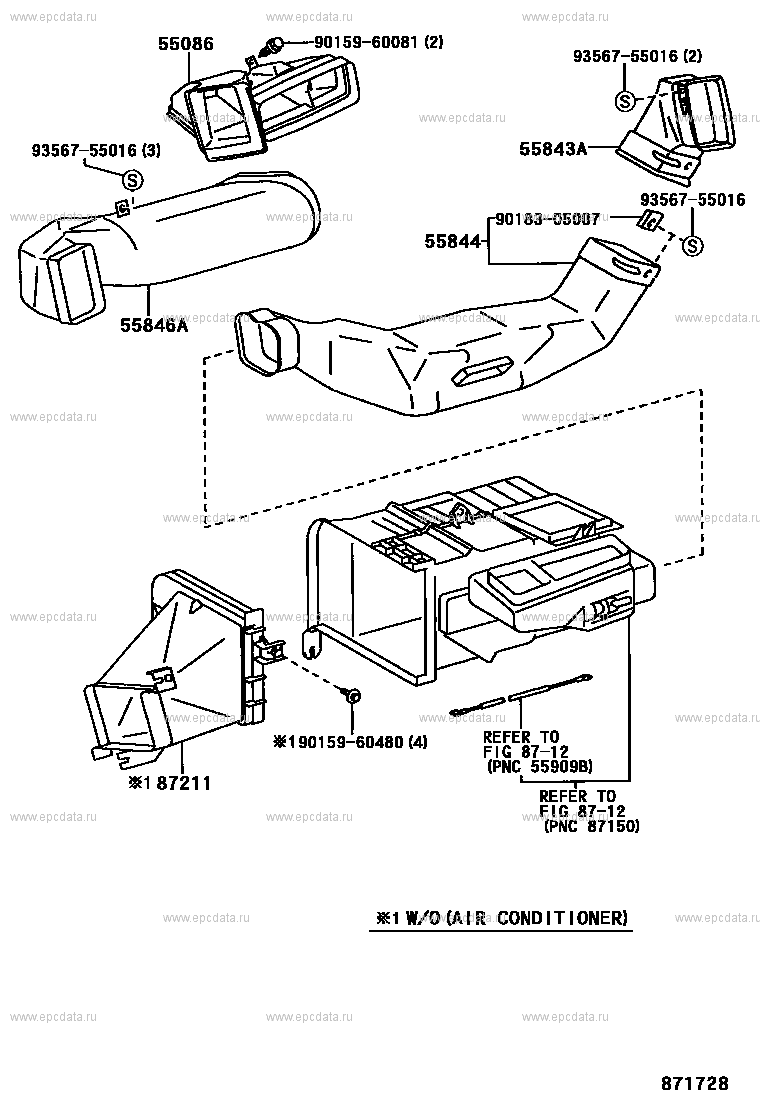

(8912- ) AIR DUCT ILLUST NO. 2 OF 3 Open full size scheme Go to top

Click part number in the scheme or in the list: 9015960081 ** Std Part 55086 DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 9356755016 ** Std Part 55843A DUCT, HEATER TO REGISTER, NO.1 9018305007 ** Std Part 55844 DUCT, HEATER TO REGISTER, NO.2 55846A DUCT, HEATER TO REGISTER, NO.4 9015960480 ** Std Part ** 87-12 87211 DUCT, AIR, NO.1

Scheme 3

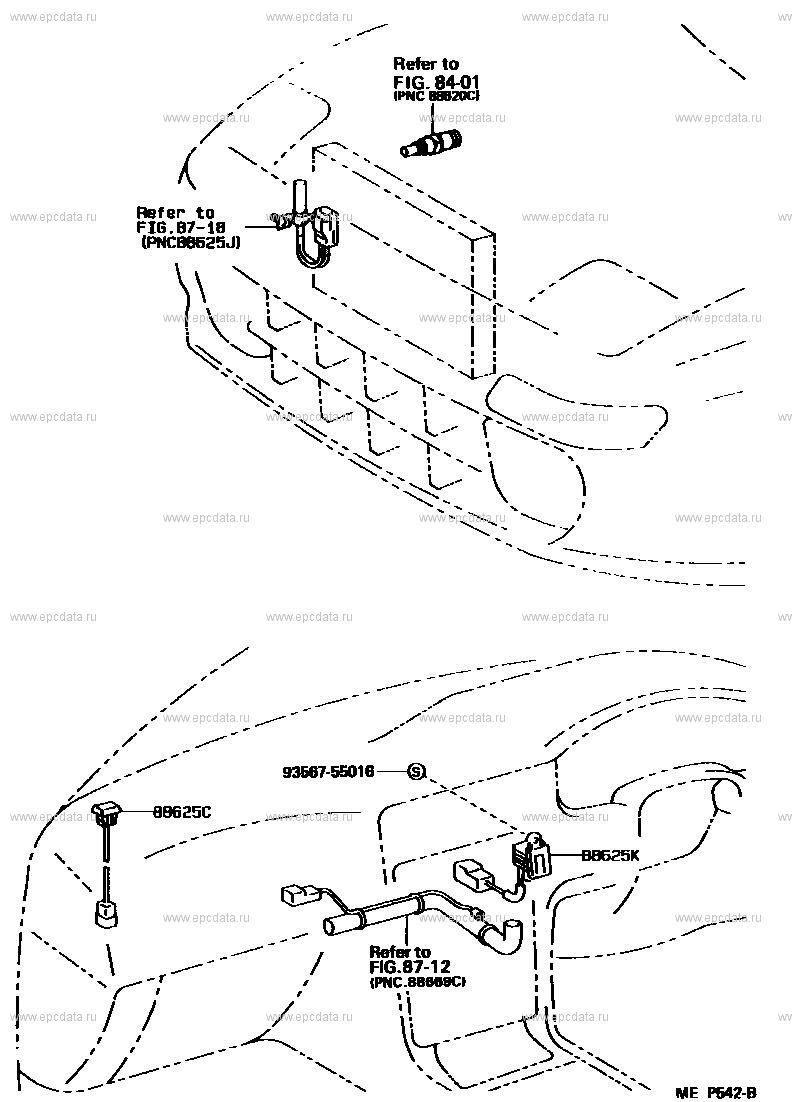

(8912- ) AUTO SENSOR ILLUST NO. 3 OF 3 Open full size scheme Go to top

Click part number in the scheme or in the list: ** 84-01 ** 87-18 9356755016 ** Std Part 88625C THERMISTOR, COOLER 88625K THERMISTOR, COOLER ** 87-12
