Floor pan & lower back panel for MR2 AW11

Click on the part subgroup below to get genuine part numbers.

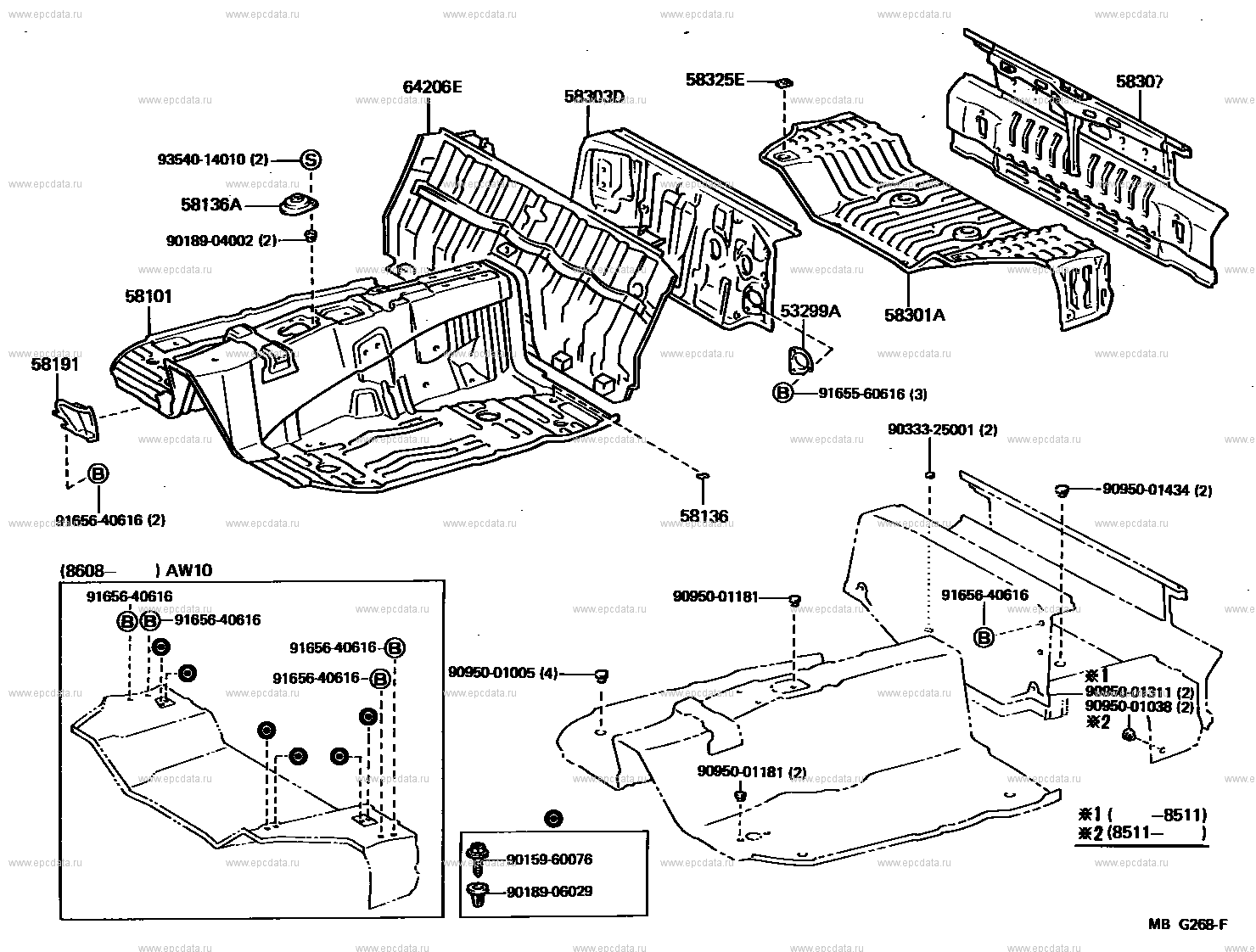

(8406- ) Open full size scheme

Click part number in the scheme or in the list: 58325E COVER, REAR FLOOR SERVICE HOLE 58307 PANEL SUB-ASSY, BODY LOWER BACK 64206E PANEL SUB-ASSY, ROOM PARTITION 58303D PANEL SUB-ASSY, REAR FLOOR PARTITION 9354014010 ** Std Part 58136A COVER, FRONT FLOOR SERVICE HOLE 9018904002 ** Std Part 58101 PAN SUB-ASSY, FRONT FLOOR 53299A PLATE, COOL AIR INTAKE DUCT 58301A PANEL SUB-ASSY, REAR FLOOR 58191 FOOTREST, FRONT FLOOR 9165560616 ** Std Part 9033325001 ** Std Part 9095001434 ** Std Part 58136 COVER, FRONT FLOOR HOLE 9165640616 ** Std Part 9095001181 ** Std Part 9095001005 ** Std Part 9095001311 ** Std Part 9095001038 ** Std Part 9015960076 ** Std Part 9018906029 ** Std Part

MR2 AW11
