Brake tube & clamp for MR2 AW11
Click on the part subgroup below to get genuine part numbers.

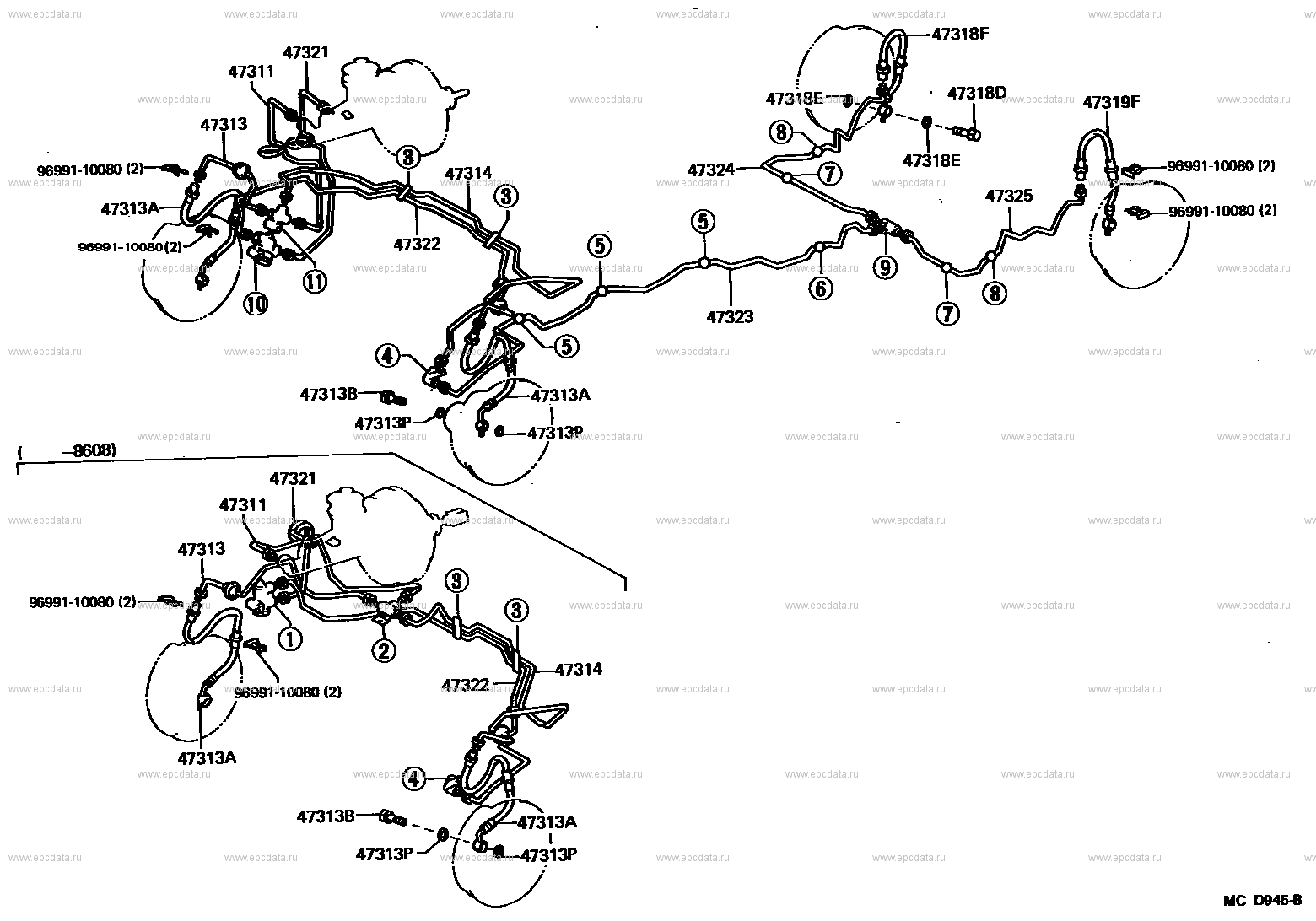

Scheme 1
|
(8406- ) ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 47318F HOSE, FLEXIBLE(FOR REAR RH)47321 TUBE, REAR BRAKE, NO.1 47311 TUBE, FRONT BRAKE, NO.1 47318D BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E GASKET(FOR REAR FLEXIBLE HOSE) 47319F HOSE, FLEXIBLE(FOR REAR LH) 47313 TUBE, FRONT BRAKE, NO.3 9699110080 ** Std Part 47324 TUBE, REAR BRAKE, NO.4 47314 TUBE, FRONT BRAKE, NO.4 47325 TUBE, REAR BRAKE, NO.5 47313A HOSE, FLEXIBLE, NO.1(FOR FRONT) 47322 TUBE, REAR BRAKE, NO.2 47323 TUBE, REAR BRAKE, NO.3 47313B BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P GASKET(FOR FRONT FLEXIBLE HOSE) |
Scheme 2
|
(8406- ) ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 9165140614 ** Std Part47321D WAY, NO.1(FOR REAR BRAKE TUBE) 9046106139 ** Std Part 9046106183 ** Std Part 47150 VALVE ASSY, PROPORTIONING 9046106118 ** Std Part 47311A WAY(FOR FRONT BRAKE TUBE) 9161140840 ** Std Part 9046106184 ** Std Part 9046106182 ** Std Part 9046106966 ** Std Part 9165140640 ** Std Part 47322B WAY, NO.2(FOR REAR BRAKE TUBE) |
