Heating & air conditioning - cooler piping for Masterace YR30G
Click on the part subgroup below to get genuine part numbers.
Scheme 1

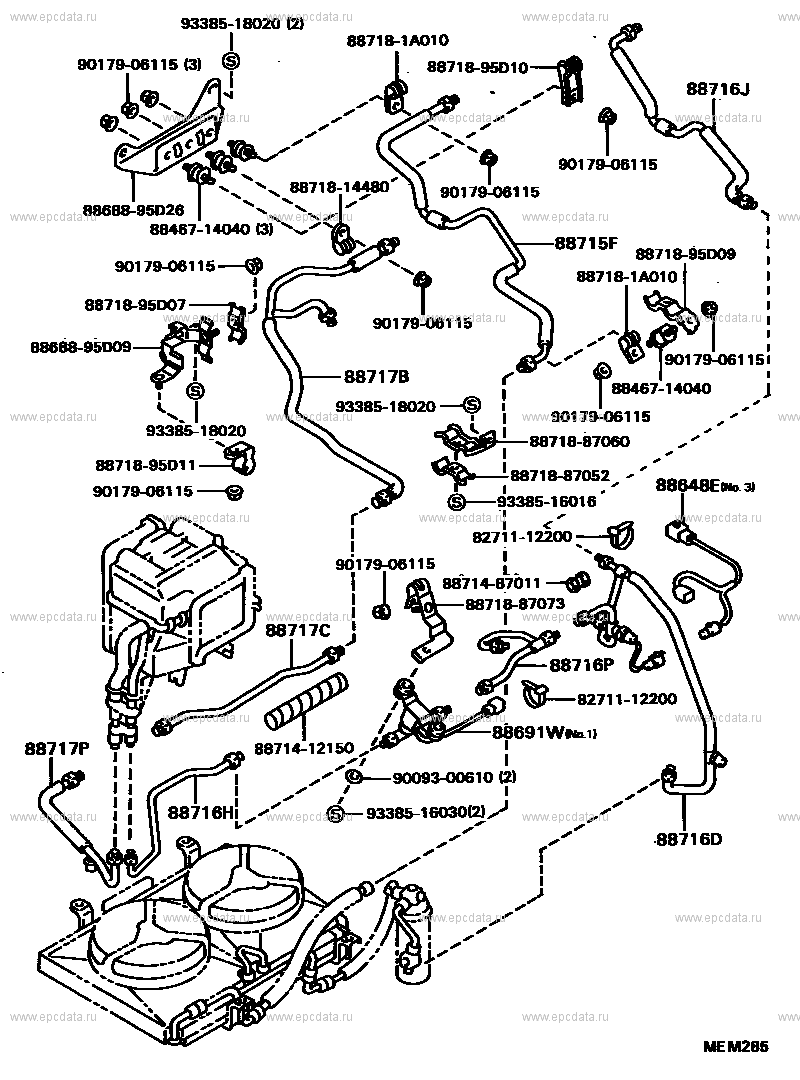

Scheme 2
Scheme 3
|
(8808- )YR30..4FC PIPING(2) ILLUST NO. 2 OF 4 |
Click part number in the scheme or in the list: 88716E PIPE, COOLER REFRIGERANT LIQUID, E88691W VALVE, MAGNET 9338516025 ** Std Part 9048026003 ** Std Part 88716C PIPE, COOLER REFRIGERANT LIQUID, C 88714 HOSE, COOLER REFRIGERANT LIQUID, NO.1 9017908123 ** Std Part 9048036003 ** Std Part 8871887036 ** Std Part 8868895D11 ** Std Part 88717A PIPE, COOLER REFRIGERANT SUCTION, A 8871895D05 ** Std Part 88711 HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 9338518020 ** Std Part 88471 TANK, RECEIVER AIR CONDITIONER 88712 HOSE, COOLER REFRIGERANT SUCTION, NO.1 88717E PIPE, COOLER REFRIGERANT SUCTION, E 8868895D16 ** Std Part 8871487005 ** Std Part 8871895D15 ** Std Part |
Scheme 4
|
(8808- ) RADIATOR PACKING & CAUTION PLATE ILLUST NO. 3 OF 4 |
Click part number in the scheme or in the list: 88891A PACKING A (FOR COOLER)88723B LABEL, COOLER SERVICE CAUTION 88891B PACKING B (FOR COOLER) |
Scheme 5
|
(8808- )E,G,Q COOL BOX ILLUST NO. 4 OF 4 |
Click part number in the scheme or in the list: 8859287002 ** Std Part** 87-14 88717D PIPE, COOLER REFRIGERANT SUCTION, D 9009932110 ** Std Part 88691W VALVE, MAGNET 9048026003 ** Std Part 88716C PIPE, COOLER REFRIGERANT LIQUID, C 9338516016 ** Std Part 88716D PIPE, COOLER REFRIGERANT LIQUID, D 8871887040 ** Std Part 8871887041 ** Std Part 88716H PIPE, COOLER REFRIGERANT LIQUID, H |
