Roof headlining & silencer pad for Mark X GRX125

Click on the part subgroup below to get genuine part numbers.

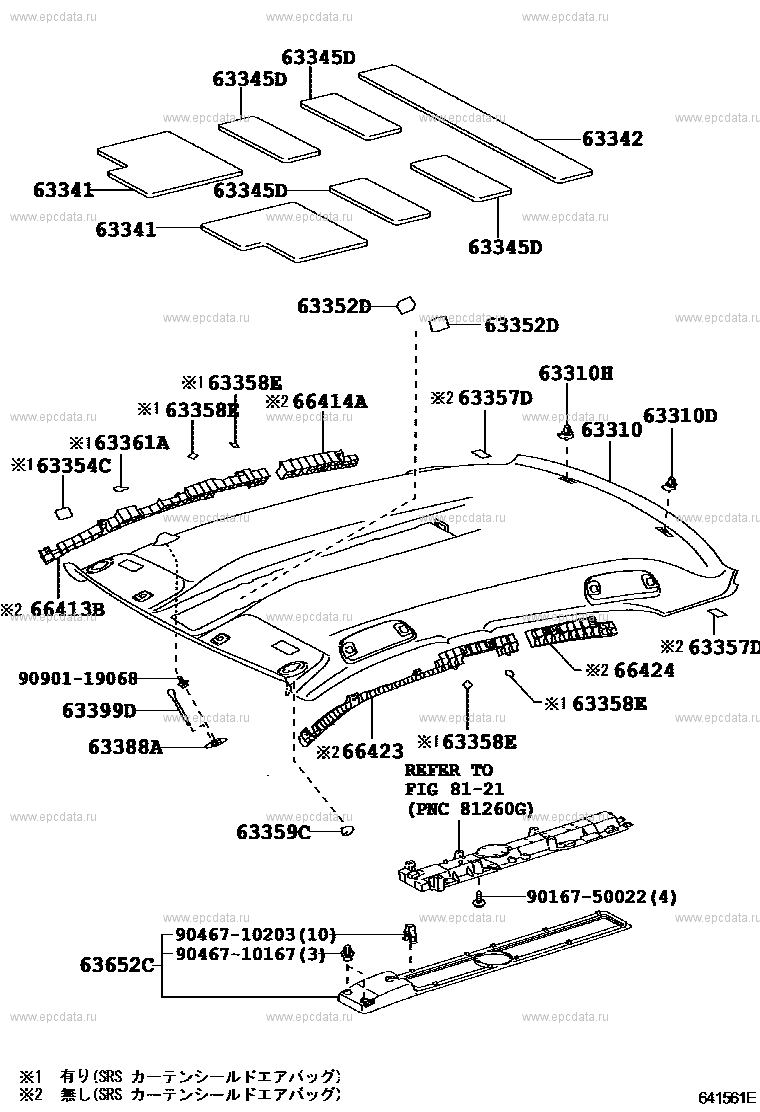

Scheme 1

(0411- ) Open full size scheme Go to top

Click part number in the scheme or in the list: 63342 PAD, ROOF SILENCER, NO.2 63354C PAD, ROOF HEADLINING FRONT SIDE 63355C PAD, ROOF HEADLINING, RH 63353C PAD, ROOF HEADLINING, CENTER 63359C PAD, ROOF SILENCER, NO.18 63351B PAD, ROOF HEADLINING 63356B PAD, ROOF HEADLINING, LH 63352D PAD, ROOF HEADLINING, NO.2 63358E PAD, ROOF SILENCER, NO.17 63361A SUPPORT, ROOF HEADLINING 63357D PAD, ROOF SILENCER, NO.16 66414A SPACER, SIDE RAIL, REAR RH 66423 SPACER, SIDE RAIL, FRONT LH 66424 SPACER, SIDE RAIL, REAR LH 63310 HEADLINING ASSY, ROOF 63310H CLIP(FOR ROOF HEADLINING) 63310D CLIP, ROOF HEADLINING 66413B SPACER, SIDE RAIL, FRONT RH 63399D CLIP, ROOF HEADLINING 63388A COVER, ROOF HEADLINING HOLDER 63341 PAD, ROOF SILENCER, NO.1 9090119068 ** Std Part

Scheme 2

(0411- ) ｱﾘ(ﾃﾝｼﾞｮｳｵｵｶﾞﾀｲﾙﾐﾈｰｼｮﾝ ﾙｰﾑﾗﾝﾌﾟ) Open full size scheme Go to top

Click part number in the scheme or in the list: 63345D PAD, ROOF SILENCER, CENTER 63342 PAD, ROOF SILENCER, NO.2 66414A SPACER, SIDE RAIL, REAR RH 66423 SPACER, SIDE RAIL, FRONT LH 66424 SPACER, SIDE RAIL, REAR LH 63310 HEADLINING ASSY, ROOF 63310H CLIP(FOR ROOF HEADLINING) 63310D CLIP, ROOF HEADLINING 66413B SPACER, SIDE RAIL, FRONT RH 63399D CLIP, ROOF HEADLINING 63388A COVER, ROOF HEADLINING HOLDER 63652C COVER, ROOF CONSOLE BOX 63341 PAD, ROOF SILENCER, NO.1 9090119068 ** Std Part 9046710203 ** Std Part 9046710167 ** Std Part 9016750022 ** Std Part 63354C PAD, ROOF HEADLINING FRONT SIDE 63359C PAD, ROOF SILENCER, NO.18 63358E PAD, ROOF SILENCER, NO.17 63361A SUPPORT, ROOF HEADLINING 63357D PAD, ROOF SILENCER, NO.16 63352D PAD, ROOF HEADLINING, NO.2 ** 81-21

Mark X GRX125
