Heating & air conditioning - cooler piping for Mark X GGA10
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

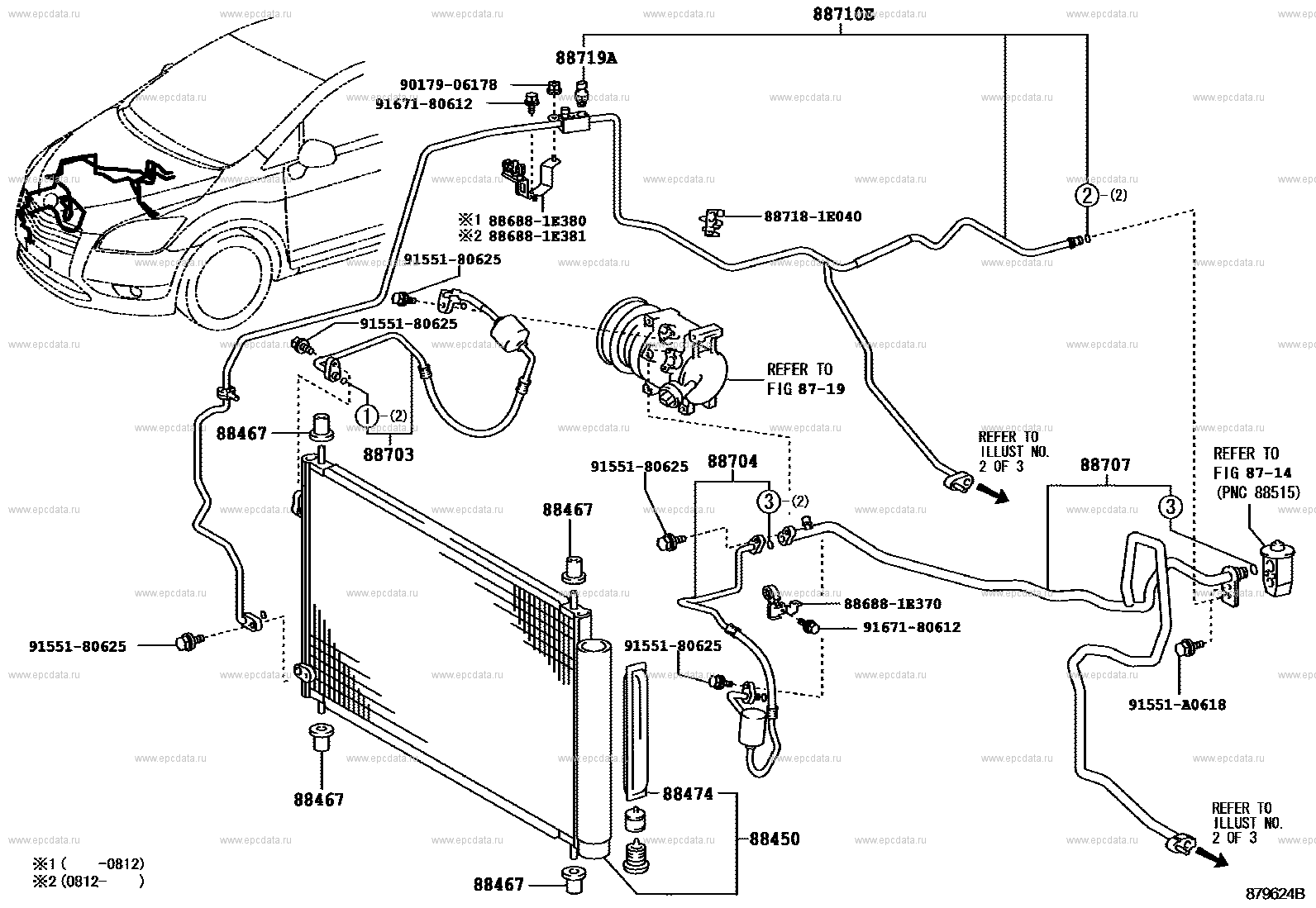

(0709- )GGA10 ﾌﾛﾝﾄ ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 88450 CONDENSER ASSY, W/RECEIVER88467 CUSHION, COOLER CONDENSER, NO.1 88474 DRYER, COOLER 88703 HOSE SUB-ASSY, DISCHARGE 88704 HOSE SUB-ASSY, SUCTION 88707 PIPE SUB-ASSY, SUCTION 88710E TUBE & ACCESSORY ASSY, AIRCONDITIONER 88719A SENSOR, AIRCONDITIONER PRESSURE 886881E370 ** Std Part 887181E040 ** Std Part 9017906178 ** Std Part 9155180625 ** Std Part 91551A0618 ** Std Part 9167180612 ** Std Part ** 87-14 ** 87-19 886881E380 ** Std Part 886881E381 ** Std Part |
Scheme 2
|
(0709- )GGA10 ﾘﾔ ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 87268S PROTECTOR, COOLER TUBE88715J TUBE, DISCHARGE, J 88715K TUBE, DISCHARGE, K 88688E BRACKET, COOLER REFRIGERANT HOSE, NO.1 88716A PIPE, COOLER REFRIGERANT LIQUID, A 88716B PIPE, COOLER REFRIGERANT LIQUID, B 8868833240 ** Std Part 8868871060 ** Std Part 8871872010 ** Std Part 8846712030 ** Std Part 8871872020 ** Std Part 8871872030 ** Std Part 8871872040 ** Std Part 8871872050 ** Std Part 9009900264 ** Std Part 9011906393 ** Std Part 9017906306 ** Std Part 9155180635 ** Std Part 91611B0625 ** Std Part ** 87-14 88688F BRACKET, COOLER REFRIGERANT HOSE, NO.2 9017906274 ** Std Part |
Scheme 3
|
(0709- ) O ﾘﾝｸﾞ ILLUST NO. 3 OF 3 |
Click part number in the scheme or in the list: 9009914120 ** Std Part9009914119 ** Std Part 9009914121 ** Std Part |
