Power steering tube for Mark II Wagon Blit GX110

Click on the part subgroup below to get genuine part numbers.

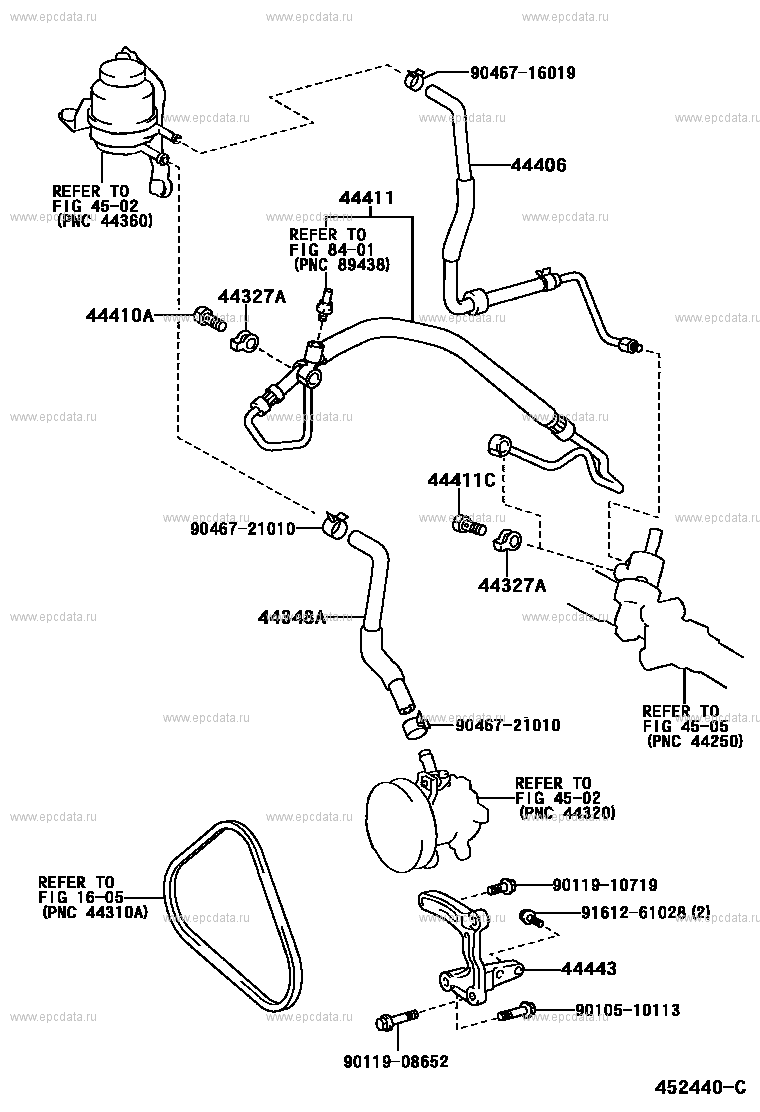

(0010- )GX110 Open full size scheme

Click part number in the scheme or in the list: 9046716019 ** Std Part 44406 TUBE SUB-ASSY, RETURN 44411 HOSE, PRESSURE FEED ** 45-02 ** 84-01 44327A GASKET, PRESSURE PORT, NO.1 44410A BOLT, UNION(FOR PRESSURE FEED TUBE) 44411C BOLT, UNION(FOR PRESSURE FEED HOSE) 9046721010 ** Std Part 44348A HOSE, OIL RESERVOIR TO PUMP, NO.1 ** 45-05 9011910719 ** Std Part ** 16-05 9161261028 ** Std Part 44443 BRACKET, PUMP 9010510113 ** Std Part 9011908652 ** Std Part

Mark II Wagon Blit GX110
