ToyotaMajestaURS206URS206-CEZVHTransmission and chassisRear spring & shock absorber

Rear spring & shock absorber for Majesta URS206




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 48090 48090-30180 01 03.2009 - 10.2010 CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER URS206,UZS207 889.26 USD
  (SUBS) 48090-30181 01   889.26 USD
02 48090 48090-30181 01 11.2010 - CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER URS206,UZS207 889.26 USD

More than 1 spare part found. Please define it more accurately before ordering.






Click on the part subgroup below to get genuine part numbers.

(0903- )

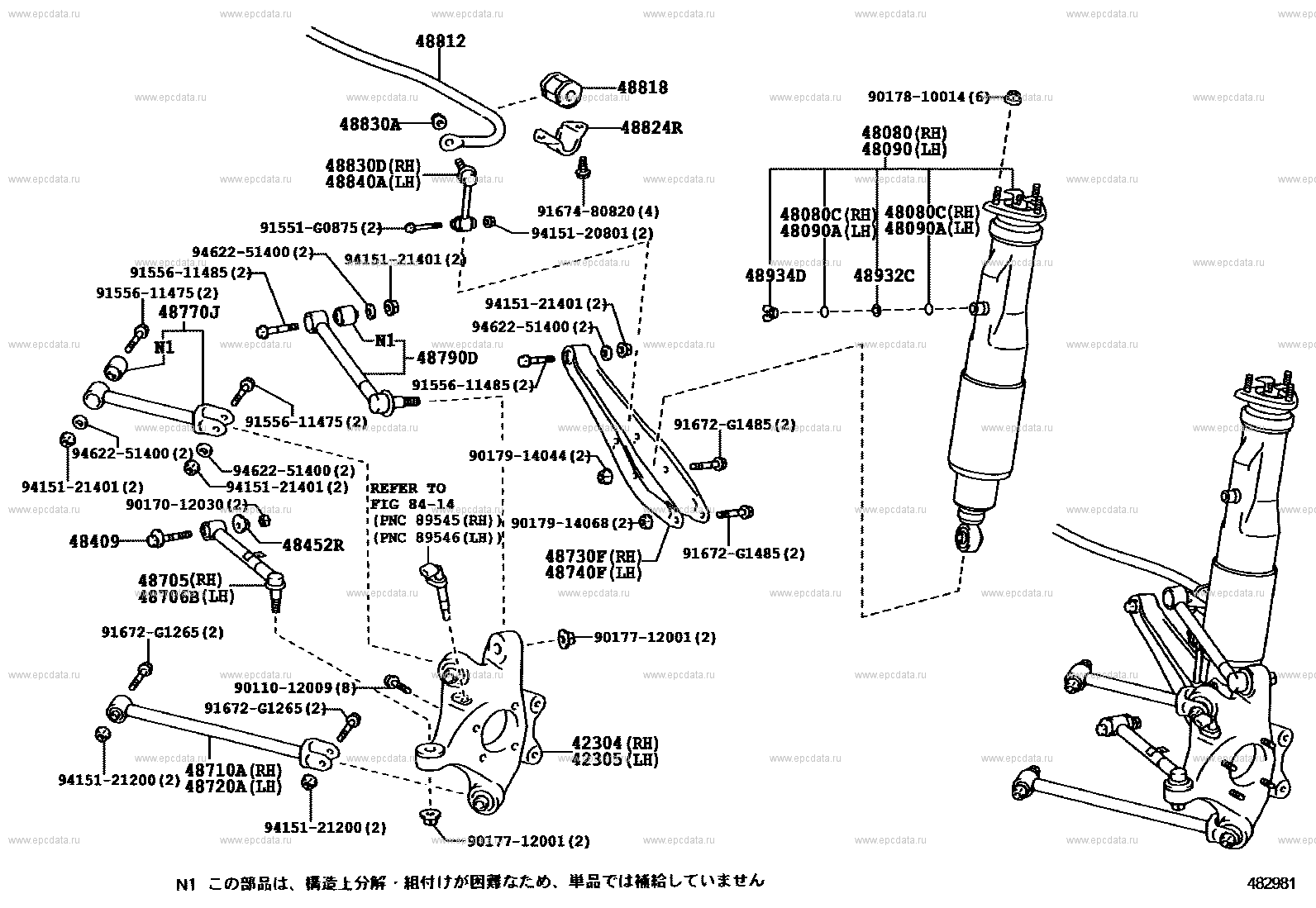

Click part number in the scheme or in the list:

91672G1485 ** Std Part
9017914068 ** Std Part
9017914044 ** Std Part
9462251400 ** Std Part
9415121401 ** Std Part
9415120801 ** Std Part
9167480820 ** Std Part
91551G0875 ** Std Part
9155611485 ** Std Part
9155611475 ** Std Part
9017012030 ** Std Part
91672G1265 ** Std Part
9415121200 ** Std Part
9011012009 ** Std Part
9017712001 ** Std Part
9017810014 ** Std Part
48830D LINK ASSY, REAR STABILIZER, RH
48840A LINK ASSY, REAR STABILIZER, LH
48080C RING, O(FOR REAR PNEUMATIC CYLINDER RH)
48090A RING, O(FOR REAR PNEUMATIC CYLINDAR LH)
48080 CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
48090 CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
48934D CONNECTOR, HEIGHT CONTROL TUBE
48932C PLATE, HEIGHT CONTROL TUBE
42304 CARRIER SUB-ASSY, REAR AXLE, RH
42305 CARRIER SUB-ASSY, REAR AXLE, LH
48730F ARM ASSY, REAR SUSPENSION, NO.2 RH
48740F ARM ASSY, REAR SUSPENSION, NO.2 LH
48705 LINK SUB-ASSY, TOE CONTROL, RH
48706B LINK SUB-ASSY, TOE CONTROL, LH
48409 CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452R PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48770J ARM ASSY, UPPER CONTROL, REAR NO.1
48790D ARM ASSY, UPPER CONTROL, REAR NO.2
48812 BAR, STABILIZER, REAR
48818 BUSH, STABILIZER, REAR
48824R BRACKET, STABILIZER(FOR REAR)
48830A NUT(FOR REAR STABILIZER LINK)
** 84-14
48710A ARM ASSY, REAR SUSPENSION, NO.1 RH
48720A ARM ASSY, REAR SUSPENSION, NO.1 LH

Toyota Majesta genuine parts
