Exhaust pipe for Land Cruiser Prado HZJ76V

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 17420 17403-17060 01 01.1990 - 08.2001 PIPE ASSY, EXHAUST, CENTER 1HZ..HZJ73,77..ZX;1HZ,1PZ..HZJ74,76,PZJ77 131.25 USD 02 17420 17403-17060 01 08.1999 - 08.2001 PIPE ASSY, EXHAUST, CENTER 1HZ..HZJ74,76 131.25 USD 03 17420 17403-17220 01 08.2001 - 08.2004 PIPE ASSY, EXHAUST, CENTER 1HZ..HZJ74,76  178.64 to 206.99 USD 04 17420 17403-17220 01 08.2001 - PIPE ASSY, EXHAUST, CENTER 1HZ..HZJ74,76  178.64 to 206.99 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

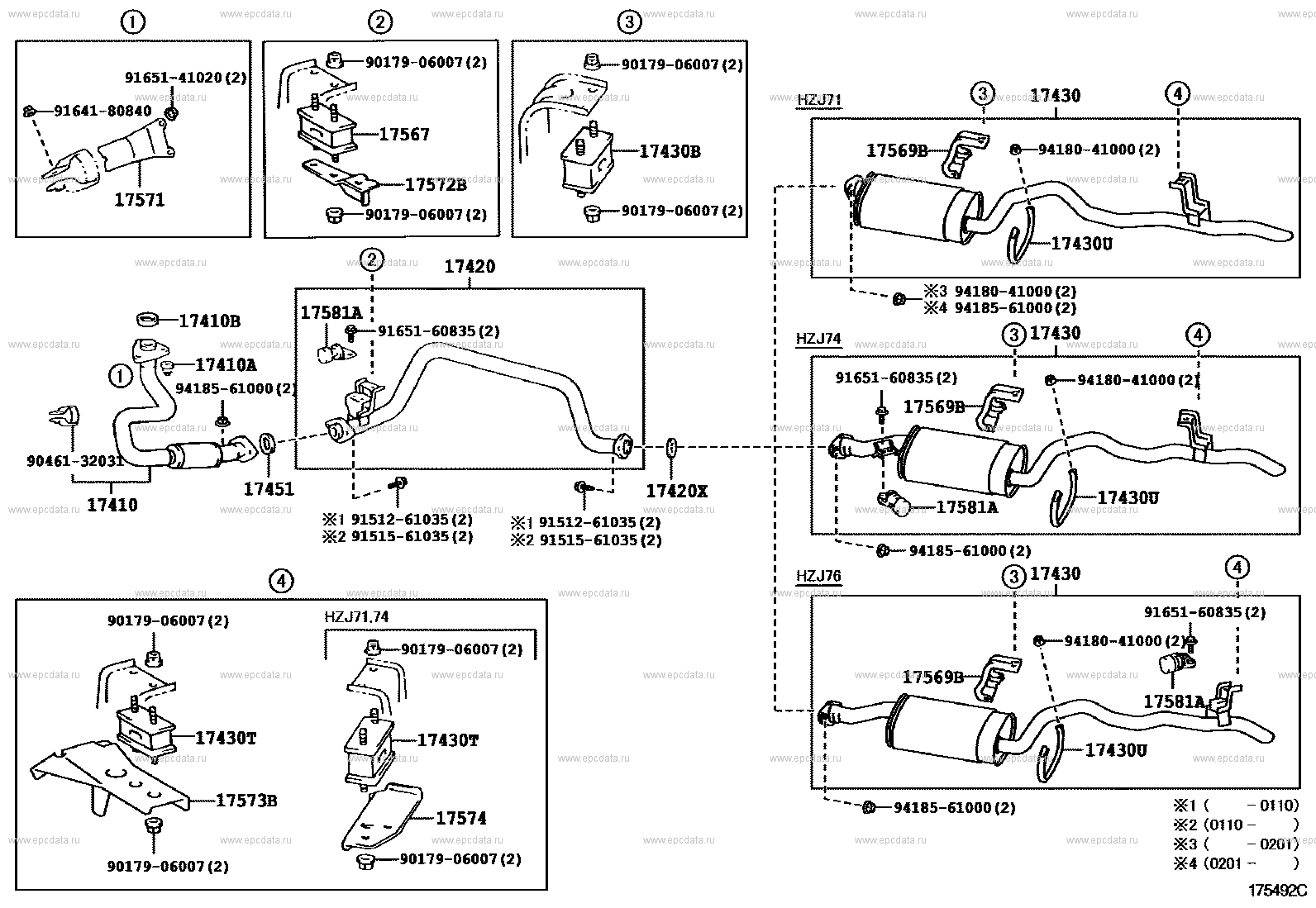

Scheme 1

(9001- )1HZ,1PZ..HZJ70,73,77,PZJ7# ; (9908-0108)1HZ..HZJ71,74,76 Open full size scheme Go to top

Click part number in the scheme or in the list: 17571 BRACKET, EXHAUST PIPE SUPPORT, NO.1 17430T CUSHION, EXHAUST TAIL PIPE (FOR REAR) 17410B GASKET, EXHAUST PIPE 17410 PIPE ASSY, EXHAUST, FRONT 17410A NUT, EXHAUST PIPE SET STUD BOLT 17451 GASKET, EXHAUST PIPE 17574 BRACKET, EXHAUST PIPE SUPPORT, NO.4 17430G CUSHION, EXHAUST TAIL PIPE(FOR CENTER) 17581A DAMPER, EXHAUST PIPE 17420 PIPE ASSY, EXHAUST, CENTER 17420X GASKET, EXHAUST PIPE, CENTER 17567 CUSHION, EXHAUST PIPE SUPPORT 17572B BRACKET, EXHAUST PIPE SUPPORT, NO.2 17430B CUSHION, EXHAUST TAIL PIPE(FOR FRONT) 17430 PIPE ASSY, EXHAUST, TAIL 17573B BRACKET, EXHAUST PIPE SUPPORT, NO.5 17430U CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) 17569B STAY, EXHAUST PIPE SUPPORT, NO.2 9165141020 ** Std Part 9162160835 ** Std Part 9418561000 ** Std Part 9017906007 ** Std Part 9165160835 ** Std Part 9164180840 ** Std Part 9151561035 ** Std Part 9151161035 ** Std Part 9151261035 ** Std Part 9418041000 ** Std Part

Scheme 2

(0108- )1HZ..HZJ71,74,76 Open full size scheme Go to top

Click part number in the scheme or in the list: 9165141020 ** Std Part 9418561000 ** Std Part 9165160835 ** Std Part 9017906007 ** Std Part 9164180840 ** Std Part 9418041000 ** Std Part 9151561035 ** Std Part 9151261035 ** Std Part 9046132031 ** Std Part 17571 BRACKET, EXHAUST PIPE SUPPORT, NO.1 17410B GASKET, EXHAUST PIPE 17410 PIPE ASSY, EXHAUST, FRONT 17410A NUT, EXHAUST PIPE SET STUD BOLT 17451 GASKET, EXHAUST PIPE 17581A DAMPER, EXHAUST PIPE 17420X GASKET, EXHAUST PIPE, CENTER 17567 CUSHION, EXHAUST PIPE SUPPORT 17572B BRACKET, EXHAUST PIPE SUPPORT, NO.2 17430B CUSHION, EXHAUST TAIL PIPE(FOR FRONT) 17430U CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) 17430 PIPE ASSY, EXHAUST, TAIL 17569B STAY, EXHAUST PIPE SUPPORT, NO.2 17430T CUSHION, EXHAUST TAIL PIPE (FOR REAR) 17573B BRACKET, EXHAUST PIPE SUPPORT, NO.5 17574 BRACKET, EXHAUST PIPE SUPPORT, NO.4 17420 PIPE ASSY, EXHAUST, CENTER

Land Cruiser Prado HZJ76V
