Rear spring & shock absorber for Land Cruiser Prado GRJ151W
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

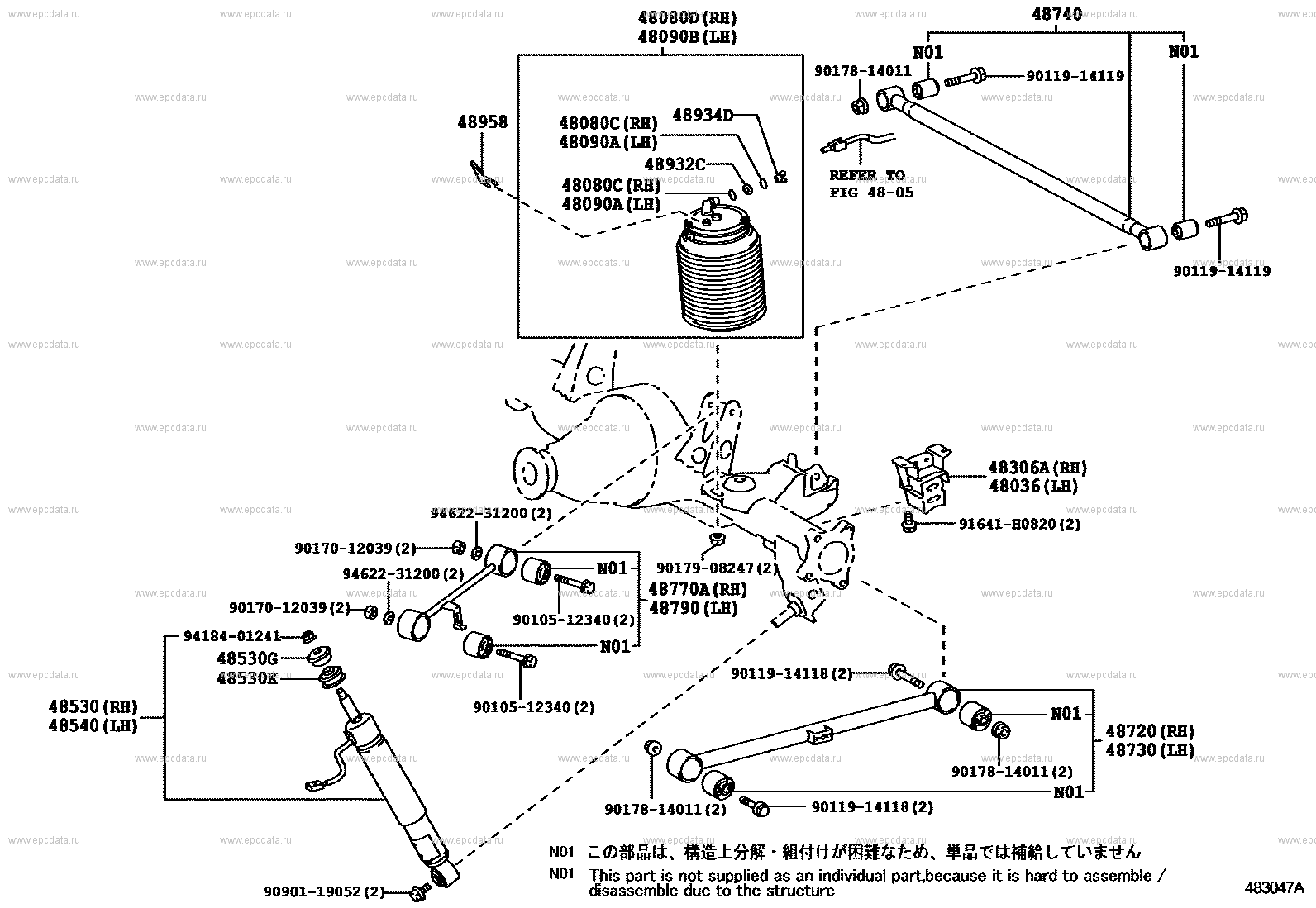

Scheme 1
|
(0908- )GRJ151 KDSS ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 48036 BUMPER SUB-ASSY, REAR SPRING, LH48306A BUMPER SUB-ASSY, REAR SPRING, RH 48720 ARM ASSY, LOWER CONTROL, RH 48730 ARM ASSY, LOWER CONTROL, LH 48080D CYLINDER ASSY, PNEUMATIC, REAR RH 48090B CYLINDER ASSY, PNEUMATIC, REAR LH 48740 ROD ASSY, REAR LATERAL CONTROL 48080C RING, O(FOR REAR PNEUMATIC CYLINDER RH) 48090A RING, O(FOR REAR PNEUMATIC CYLINDAR LH) 48932C PLATE, HEIGHT CONTROL TUBE 48934D CONNECTOR, HEIGHT CONTROL TUBE 48958 CLIP, PNEUMATIC CYLINDER 48790 ARM ASSY, UPPER CONTROL, REAR LH 9010512340 ** Std Part 9011914118 ** Std Part 9011914119 ** Std Part 9017012039 ** Std Part 9017814011 ** Std Part 9017908247 ** Std Part 9090119052 ** Std Part 91641H0820 ** Std Part 9462231200 ** Std Part 48770A ARM ASSY, UPPER CONTROL, REAR RH ** 48-05 48530G CUSHION, REAR SHOCK ABSORBER, NO.1 48530K CUSHION, REAR SHOCK ABSORBER, NO.2 48530 ABSORBER ASSY, SHOCK, REAR RH 48540 ABSORBER ASSY, SHOCK, REAR LH 9418401241 ** Std Part |
Scheme 2
