Alternator for Land Cruiser Prado BJ70

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 27411 27411-57060 01 11.1984 - 08.1988 PULLEY, ALTERNATOR 13BT,3B..BJ7# 24V 25A,30A 0.00 USD           ** Rev.Ref.No ** ( From-0081 , To-0180 )         From BJ70 -0000001           To BJ70 -0009362   02 27411 27411-58040 01 08.1988 - 01.1990 PULLEY, ALTERNATOR 3B..BJ70,73 24V 30A 0.00 USD           ** Rev.Ref.No ** ( From-0181 , To- )         From BJ70 -0009363   More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

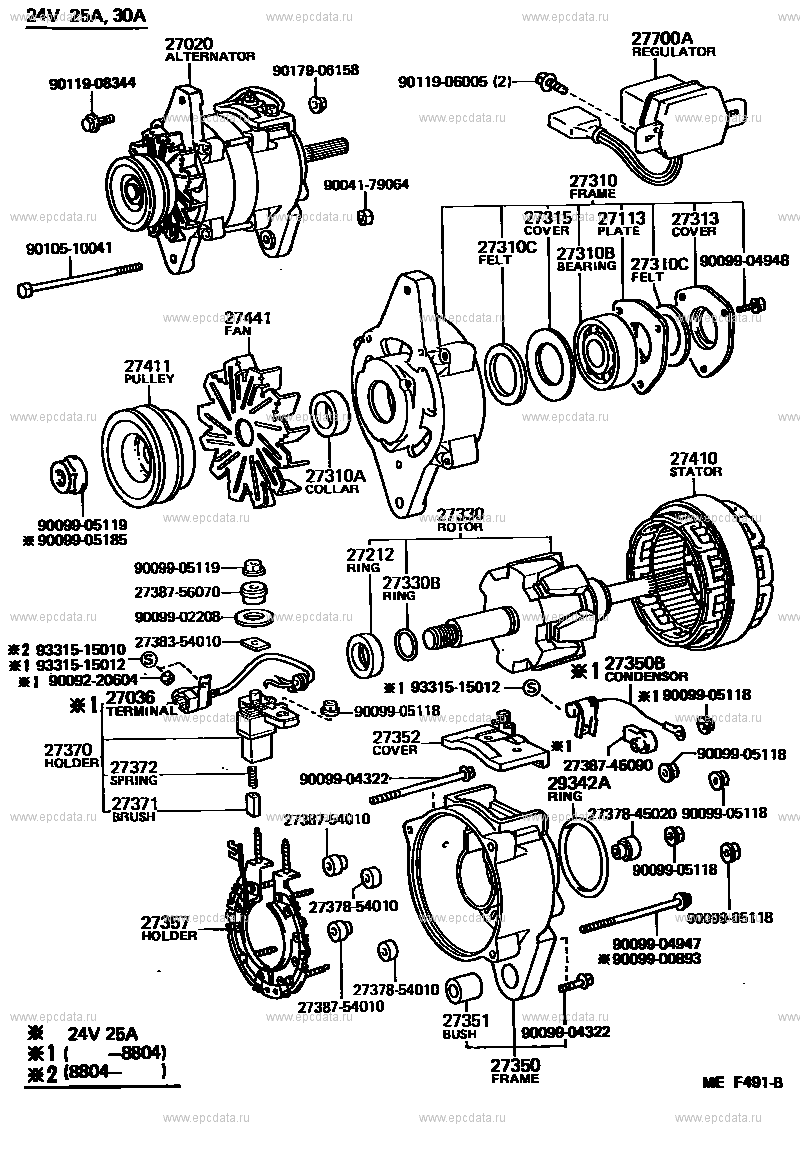

Scheme 1

(8411-8808)13BT,3B ; (8808- )13BT Open full size scheme Go to top

Click part number in the scheme or in the list: 27700A REGULATOR ASSY, GENERATOR 27020 ALTERNATOR ASSY 9017906158 ** Std Part 9011906005 ** Std Part 9011908344 ** Std Part 27310 FRAME ASSY, DRIVE END, ALTERNATOR 9004179064 ** Std Part 27315 COVER, ALTERNATOR FELT, INNER NO.1 27113 PLATE, BEARING RETAINER, ALTERNATOR 27313 COVER, ALTERNATOR FELT, INNER NO.2 27310C FELT(FOR ALTERNATOR DRIVE END FRAME) 9010510041 ** Std Part 27310B BEARING(FOR ALTERNATOR DRIVE END FRAME) 9009904948 ** Std Part 27441 FAN, ALTERNATOR 27411 PULLEY, ALTERNATOR 27410 STATOR ASSY, ALTERNATOR 27310A COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) 27330 ROTOR ASSY, ALTERNATOR 9009905119 ** Std Part 9009905185 ** Std Part 27212 RING, SPACE(FOR ALTERNATOR ROTOR) 27330B RING, SNAP(FOR ALTERNATOR ROTOR) 2738756070 ** Std Part 9009902208 ** Std Part 2738354010 ** Std Part 9331515010 ** Std Part 27350B CONDENSER, ALTERNATOR 9331515012 ** Std Part 9009220604 ** Std Part 9009905118 ** Std Part 27036 TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR 27352 COVER, FRAME BRUSH 27370 HOLDER ASSY, ALTERNATOR BRUSH 2738745090 ** Std Part 27372 SPRING, ALTERNATOR BRUSH 9009904322 ** Std Part 29342A PACKING, VACUUM PUMP 27371 BRUSH, ALTERNATOR 2737845020 ** Std Part 2738754010 ** Std Part 2737854010 ** Std Part 27357 HOLDER, ALTERNATOR, W/RECTIFIER 9009904947 ** Std Part 9009900893 ** Std Part 27351 BUSH(FOR ALTERNATOR RECTIFIER END FRAME) 27350 FRAME ASSY, RECTIFIER END

Scheme 2

(8808- )3B 24V 30A Open full size scheme Go to top

Click part number in the scheme or in the list: 9017906158 ** Std Part 27020 ALTERNATOR ASSY 9011908344 ** Std Part 9004179064 ** Std Part 27310 FRAME ASSY, DRIVE END, ALTERNATOR 9009904966 ** Std Part 27312 PLATE, RETAINER 9009900195 ** Std Part 27310B BEARING(FOR ALTERNATOR DRIVE END FRAME) 9010510041 ** Std Part 27411 PULLEY, ALTERNATOR 9009900197 ** Std Part 2738942010 ** Std Part 9009905171 ** Std Part 9009905172 ** Std Part 27330A BEARING(FOR ALTERNATOR ROTOR) 27443 COVER, ALTERNATOR BEARING 27330 ROTOR ASSY, ALTERNATOR 9009905232 ** Std Part 2738742020 ** Std Part 27039 COVER, ALTERNATOR REAR END 27357 HOLDER, ALTERNATOR, W/RECTIFIER 27350B CONDENSER, ALTERNATOR 9331914025 ** Std Part 27700A REGULATOR ASSY, GENERATOR 27370 HOLDER ASSY, ALTERNATOR BRUSH 27372 SPRING, ALTERNATOR BRUSH 27371 BRUSH, ALTERNATOR 27359 FRAME, ALTERNATOR RECTIFIER END

Land Cruiser Prado BJ70
