ToyotaLand CruiserUZJ100WUZJ100W-GNPGKTransmission and chassisSteering column & shaft

Steering column & shaft for Land Cruiser UZJ100W




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 89231A 89231-60010 01 01.1998 - 08.1998 MOTOR, POWER TILT HDJ101,UZJ100..VXL  197.00
to 260.06 USD
  (SUBS) 89231-60020 01    202.13
to 260.06 USD
02 89231A 89231-60011 01 08.1998 - 10.1998 MOTOR, POWER TILT HDJ101,UZJ100..VXL 202.13 USD
  (SUBS) 89231-60012 01    197.00
to 202.13 USD
03 89231A 89231-60012 01 10.1998 - 07.1999 MOTOR, POWER TILT HDJ101,UZJ100..CYG,VXL  197.00
to 202.13 USD
  (SUBS) 89231-60013 01    197.00
to 202.13 USD
04 89231A 89231-60021 01 07.1999 - 08.2002 MOTOR, POWER TILT HDJ101,UZJ100..CYG,VXL  197.00
to 260.06 USD
  (SUBS) 89231-60022 01    197.00
to 202.13 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3

Click on the part subgroup below to get genuine part numbers.

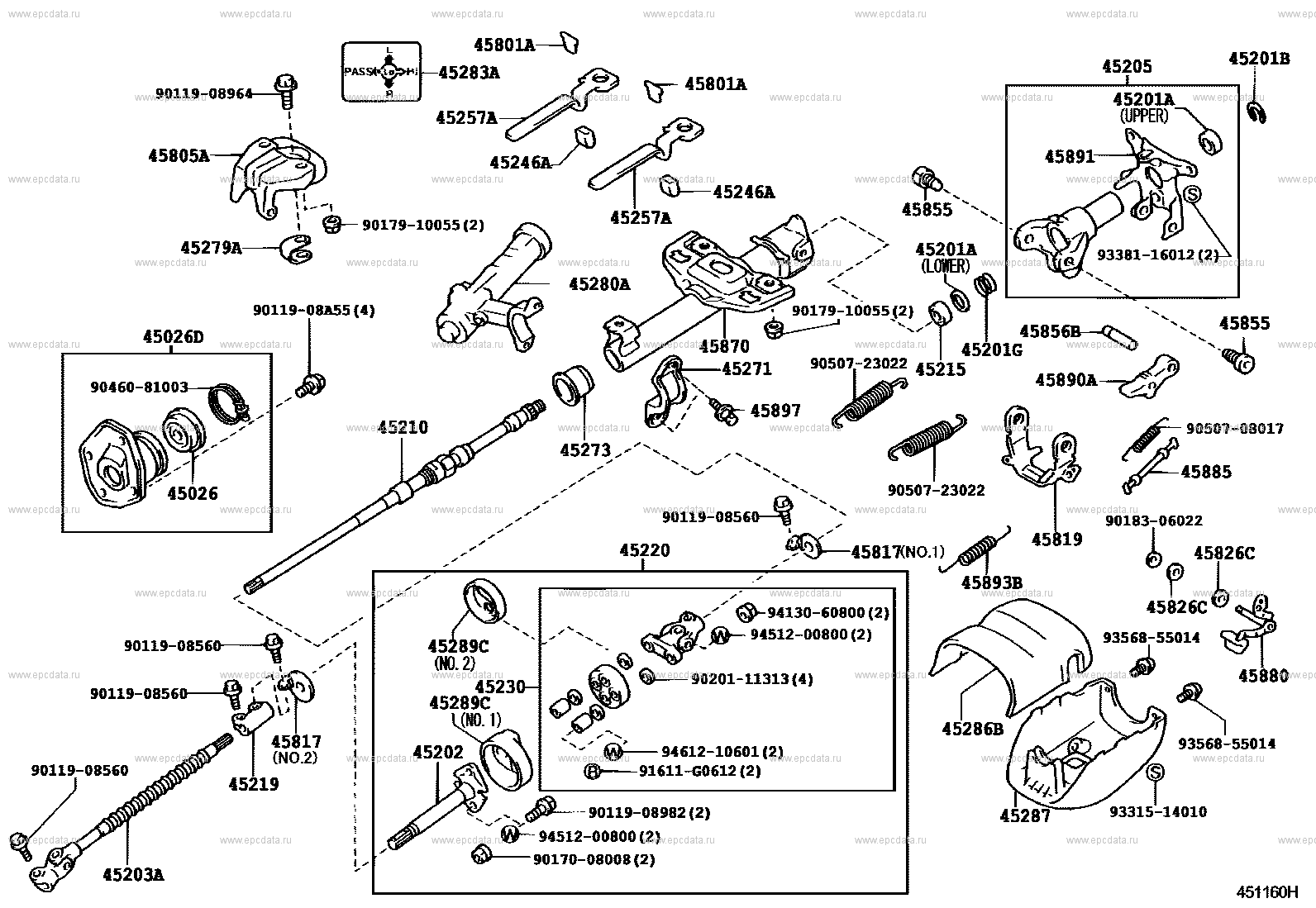

Scheme 1

(9801- )VX,VXL
ｼｭﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ

Click part number in the scheme or in the list:

9011908964 ** Std Part
45805A SUPPORT SUB-ASSY, TILT STEERING
45279A ATTACHMENT, STEERING COLUMN TUBE, LWR
45026D COVER SUB-ASSY, STEERING COLUMN HOLE
9046081003 ** Std Part
9011908A55 ** Std Part
45026 COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45210 SHAFT ASSY, STEERING MAIN
9011908560 ** Std Part
45203A SHAFT, STEERING INTERMEDIATE, NO.2
45283A PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45257A PLATE, STEERING COLUMN ENERGY ABSORBING
9017910055 ** Std Part
45801A PIN SUB-ASSY, STEERING ENERGY ABSORBING
45246A GUIDE, STEERING ENERGY ABSORBING PLATE
45280A BRACKET ASSY, STEERING COLUMN, UPPER
45870 TUBE ASSY, STEERING COLUMN
45271 CLAMP, STEERING COLUMN, UPPER
45897 BOLT, STEERING LOCK SET
45273 BUSH, STEERING MAIN SHAFT
45220 SHAFT ASSY, STEERING INTERMEDIATE
9413060800 ** Std Part
9451200800 ** Std Part
9050723022 ** Std Part
45893B SPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
45819 RETAINER, TILT LEVER
9356855014 ** Std Part
9020111313 ** Std Part
9461210601 ** Std Part
91611G0612 ** Std Part
9011908982 ** Std Part
9017008008 ** Std Part
45287 COVER, STEERING COLUMN, LWR
9331514010 ** Std Part
45880 LEVER ASSY, STEERING TILT
45826C BUSH(FOR STEERING TILT LEVER)
9018306022 ** Std Part
45885 LINK, TILT LEVER
9050708017 ** Std Part
45890A PAWL ASSY, TILT STEERING
45215 COLLAR, MAIN SHAFT BEARING THRUST
45201G SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45856B SHAFT, T1LT STEERING, NO.2
45855 BOLT, TILT STEERING, NO.1
9338116012 ** Std Part
45891 BRACKET, TURN SIGNAL
45289C COVER, STEERING COLUMN, LWR NO.2
45286B COVER, STEERING COLUMN, UPR
45205 TUBE SUB-ASSY, STEERING COLUMN
45201A BEARING(FOR STEERING MAIN SHAFT)
45230 COUPLING ASSY, FLEXIBLE
45202 SHAFT SUB-ASSY, STEERING INTERMEDIATE
45201B RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45817 STOPPER, STEERING SHAFT THRUST
45219 YOKE, STEERING SLIDING

Scheme 2

(9801-0208)CYG,VXL
ﾃﾞﾝﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

9017910055 ** Std Part
9011908A55 ** Std Part
45026D COVER SUB-ASSY, STEERING COLUMN HOLE
9011908964 ** Std Part
45805A SUPPORT SUB-ASSY, TILT STEERING
45257A PLATE, STEERING COLUMN ENERGY ABSORBING
45246A GUIDE, STEERING ENERGY ABSORBING PLATE
45279A ATTACHMENT, STEERING COLUMN TUBE, LWR
45801A PIN SUB-ASSY, STEERING ENERGY ABSORBING
9046081003 ** Std Part
45873 STOPPER, STEERING COLUMN TUBE
45280A BRACKET ASSY, STEERING COLUMN, UPPER
45856B SHAFT, T1LT STEERING, NO.2
45898E BUSH(FOR TILT STEERING SUPPORT BOLT)
45870 TUBE ASSY, STEERING COLUMN
9331914006 ** Std Part
45832 CABLE, TILT STEERING SUPPORT BOND
45201A BEARING(FOR STEERING MAIN SHAFT)
33518C E RING (FOR TILT MOTOR SHAFT, UPPER)
45855 BOLT, TILT STEERING, NO.1
45215 COLLAR, MAIN SHAFT BEARING THRUST
45201G SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205J TUBE SUB-ASSY, STEERING COLUMN, UPPER
33518D E RING (FOR TILT MOTOR SHAFT, LOWER)
89231A MOTOR, POWER TILT
45201B RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45186A BRACKET, CONNECTOR, NO.2
9338116012 ** Std Part
9036708001 ** Std Part
45866A STOPPER, STEERING MAIN SHAFT BUSH
45768 BUSH, TELESCOPIC STEERING
45767A SCREW, TELESCOPIC STEERING
45761 SLIDER, TELESCOPIC STEERING
45761B SUPPORT, TELESCOPIC STEERING SLIDER
45891 BRACKET, TURN SIGNAL
45877A SPACER, STEERING COLUMN BRACKET
4589860020 ** Std Part
45874B PROTECTOR, STEERING COLUMN, NO.1
9164580818 ** Std Part
9017908170 ** Std Part
45767 CABLE, TELESCOPIC STEERING COLUMN
89232 MOTOR, POWER TELESCOPIC
45230B JOINT ASSY, STEERING SHAFT UNIVERSAL
9151160612 ** Std Part
45833 NUT, TILT STEERING ADJUSTING, NO.1
45783 STOPPER, TILT STEERING, NO.1
45805C SPRING, COMPRESSION(FOR TILT STEERING SUPPORT)
45898B BOLT, TILT STEERING SUPPORT STOPPER
45897 BOLT, STEERING LOCK SET
45831A BOLT, TELESCOPE LEVER LOCK
45835C SPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK)
45835 WEDGE, LOCK
45765 GUIDE, TELESCOPIC STEERING
45271 CLAMP, STEERING COLUMN, UPPER
45210 SHAFT ASSY, STEERING MAIN
45283A PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
9011908560 ** Std Part
45203A SHAFT, STEERING INTERMEDIATE, NO.2
45289C COVER, STEERING COLUMN, LWR NO.2
45230 COUPLING ASSY, FLEXIBLE
45202 SHAFT SUB-ASSY, STEERING INTERMEDIATE
9017008008 ** Std Part
9451200800 ** Std Part
9011908982 ** Std Part
9111260610 ** Std Part
9461210601 ** Std Part
9020111313 ** Std Part
9413060800 ** Std Part
45286B COVER, STEERING COLUMN, UPR
9016450034 ** Std Part
9331514010 ** Std Part
45220 SHAFT ASSY, STEERING INTERMEDIATE
45082 BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45287 COVER, STEERING COLUMN, LWR
45026 COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45219 YOKE, STEERING SLIDING
45817 STOPPER, STEERING SHAFT THRUST

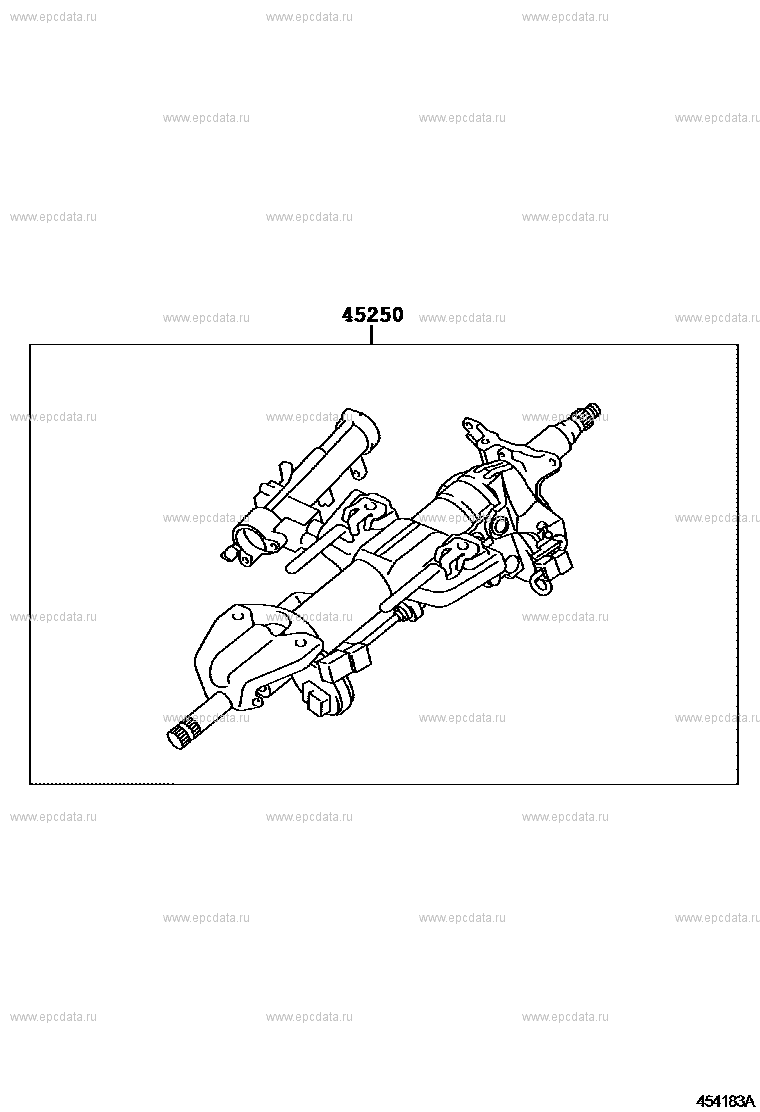

Scheme 3

(9801-0208)CYG,VXL
ﾃﾞﾝﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

45250 COLUMN ASSY, STEERING
