ToyotaLand CruiserUZJ100WUZJ100W-GNPEKBody and interiorHeating & air conditioning - control & air ductHeating & air conditioning - control & air duct for Land Cruiser UZJ100W
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

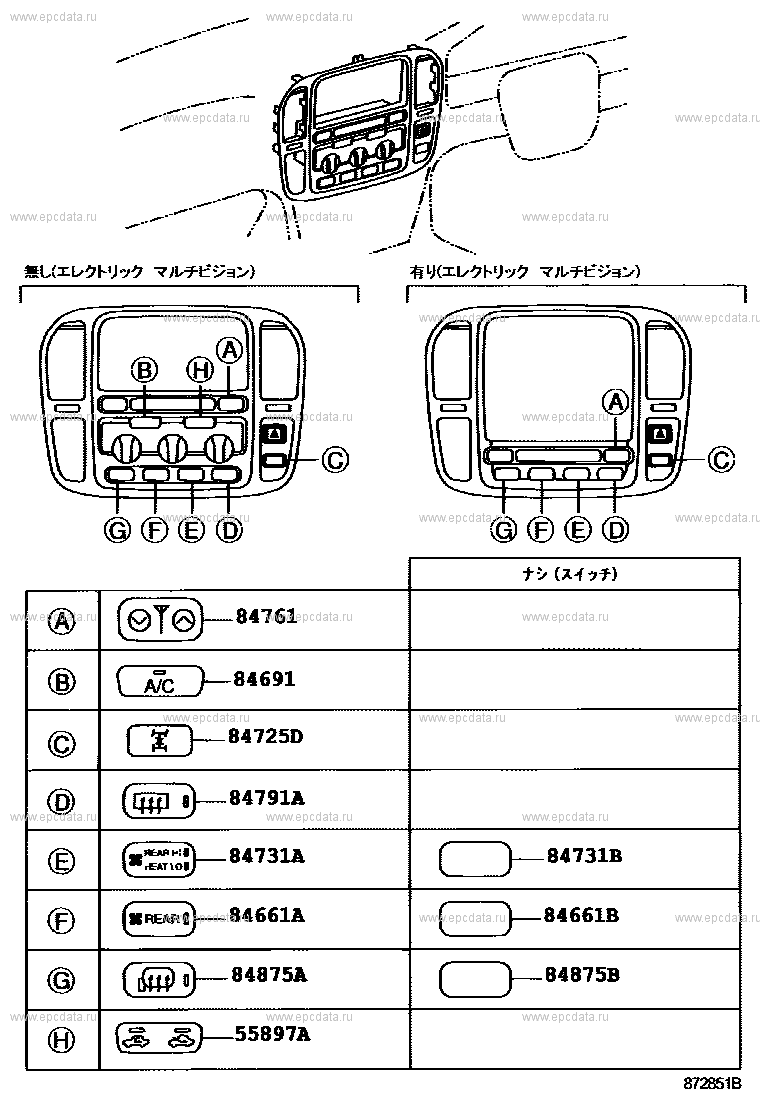

(9801-0208) ﾌﾛﾝﾄ ﾋｰﾀ ｺﾝﾄﾛｰﾙ ILLUST NO. 1 OF 5 |
Click part number in the scheme or in the list: 84731A KNOB, HEATER BLOWER SWITCH84791A KNOB, DEFOGGER TIME SWITCH 84725D KNOB, DIFFERENTIAL LOCK SWITCH 84691 KNOB, CONDITION INDICATOR 84761 KNOB, ANTENNA SWITCH 84661A KNOB, COOLER CONTROL SWITCH 84875A KNOB, OUTER MIRROR SWITCH 84731B BEZEL, SWITCH 84661B BEZEL, SWITCH 84875B BEZEL, SWITCH 55897A KNOB, AIR DAMPER CONTROL LEVER |
Scheme 2
|

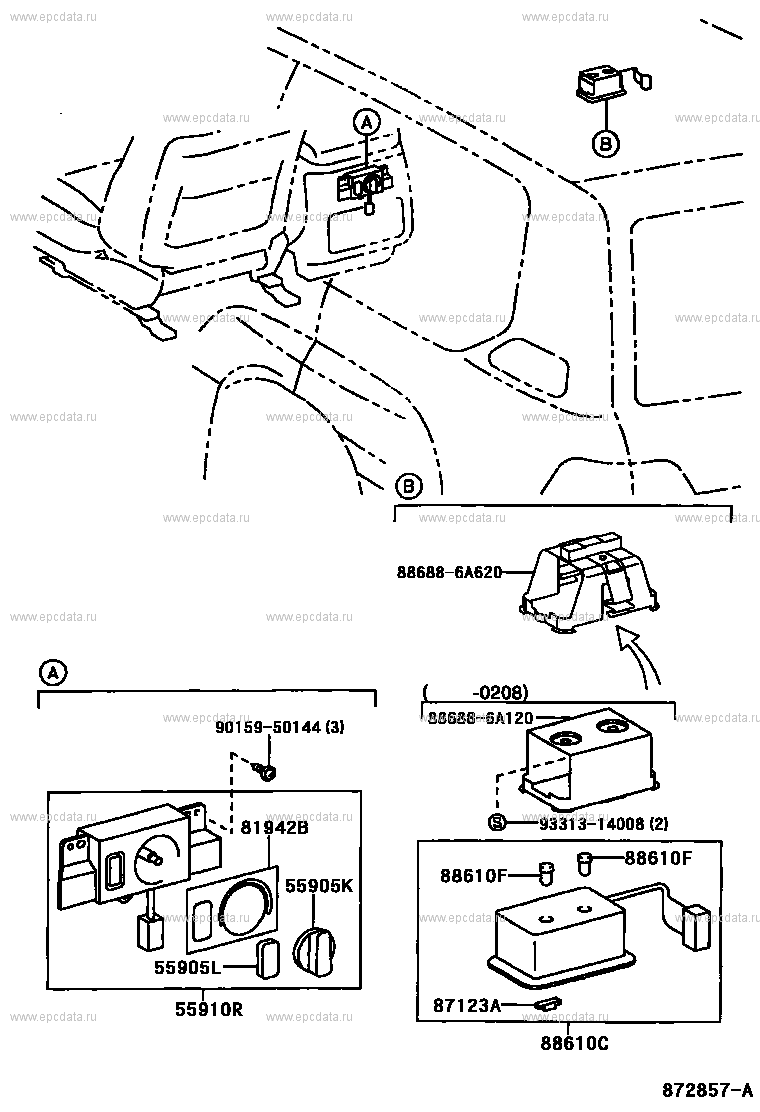

(9801- ) ﾘﾔ ﾋｰﾀ ｺﾝﾄﾛｰﾙ ILLUST NO. 2 OF 5 |
Click part number in the scheme or in the list: 886886A620 ** Std Part886886A120 ** Std Part 9015950144 ** Std Part 9331314008 ** Std Part 81942B SHEET, HEATER CONTROL NAME, NO.2 88610F BULB, COOLER CONTROL SWITCH 55905K KNOB, HEATER CONTROL, NO.4 55905L KNOB, HEATER CONTROL, NO.5 87123A KNOB, HEATER CONTROL 55910R CONTROL ASSY, HEATER 88610C SWITCH ASSY, COOLER CONTROL |
Scheme 3
|

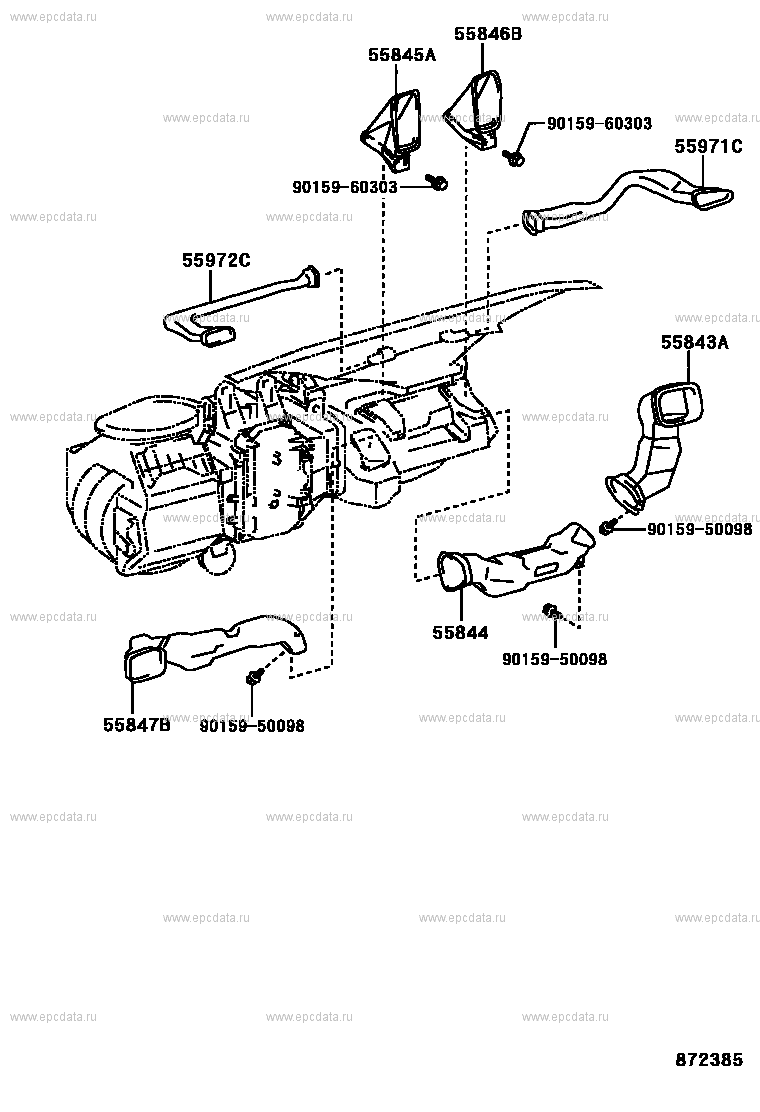

(9801- ) ﾌﾛﾝﾄﾀﾞｸﾄ ILLUST NO. 3 OF 5 |
Click part number in the scheme or in the list: 55846B DUCT, HEATER TO REGISTER, NO.455845A DUCT, HEATER TO REGISTER, NO.3 9015960303 ** Std Part 55971C DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972C DUCT, SIDE DEFROSTER NOZZLE, NO.2 55843A DUCT, HEATER TO REGISTER, NO.1 9015950098 ** Std Part 55844 DUCT, HEATER TO REGISTER, NO.2 55847B DUCT, HEATER TO REGISTER, NO.5 |
Scheme 4
|

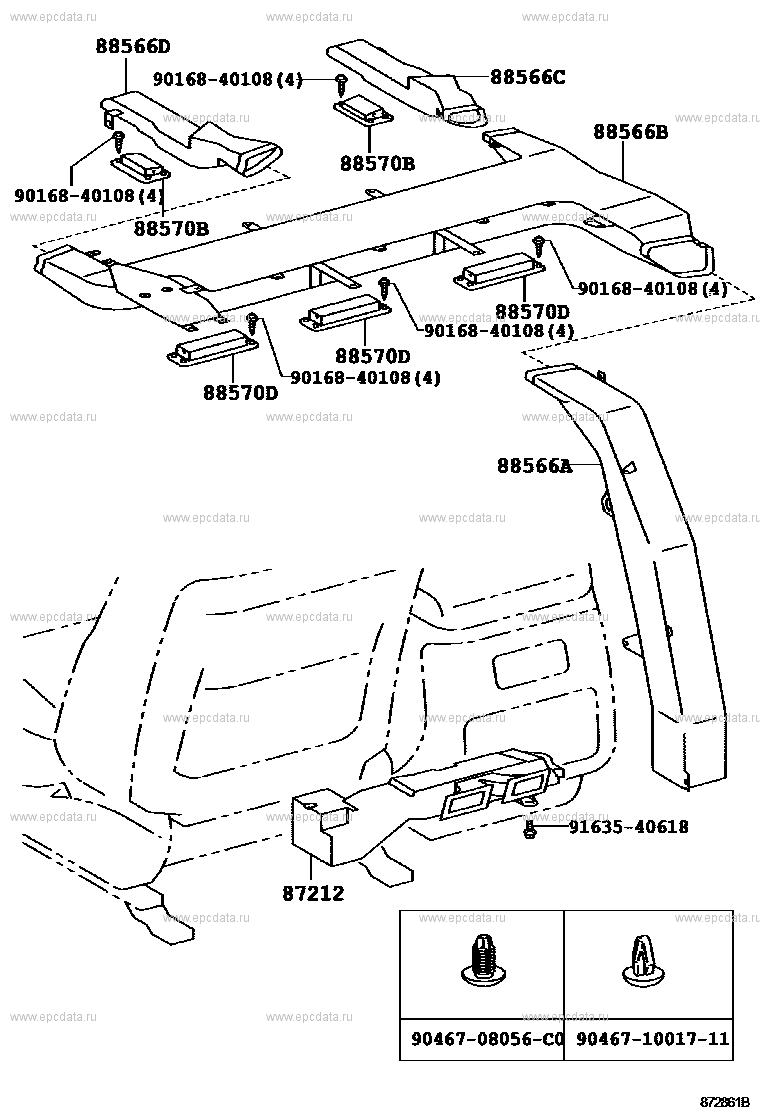

(9801-0208) ﾘﾔﾀﾞｸﾄ ILLUST NO. 4 OF 5 |
Click part number in the scheme or in the list: 88570B GRILLE ASSY, AIR OUTLET, NO.188566D DUCT, COOLER AIR, NO.4 9016840108 ** Std Part 88566C DUCT, COOLER AIR, NO.3 88570D GRILLE ASSY, AIR OUTLET, NO.2 88566B DUCT, COOLER AIR, NO.2 88566A DUCT, COOLER AIR, NO.1 904671001711 ** Std Part 9046708056C0 ** Std Part 87212 DUCT, AIR, REAR NO.1 9163540618 ** Std Part |
Scheme 5
|
(9801-0208) ｾﾝｻ & ｱﾝﾌﾟ ILLUST NO. 5 OF 5 |
Click part number in the scheme or in the list: 9015950098 ** Std Part9356815012 ** Std Part 88650B AMPLIFIER ASSY, AIRCONDITIONER 88625Q THERMISTOR, COOLER (ROOM TEMP. SENSOR) 89437D COVER, SENSOR 88625H THERMISTOR, COOLER (SOLAR SENSOR) 88625K THERMISTOR, COOLER 88625P THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) 9011908718 ** Std Part ** 84-01 |
