Switch & relay & computer for Land Cruiser UZJ100W
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

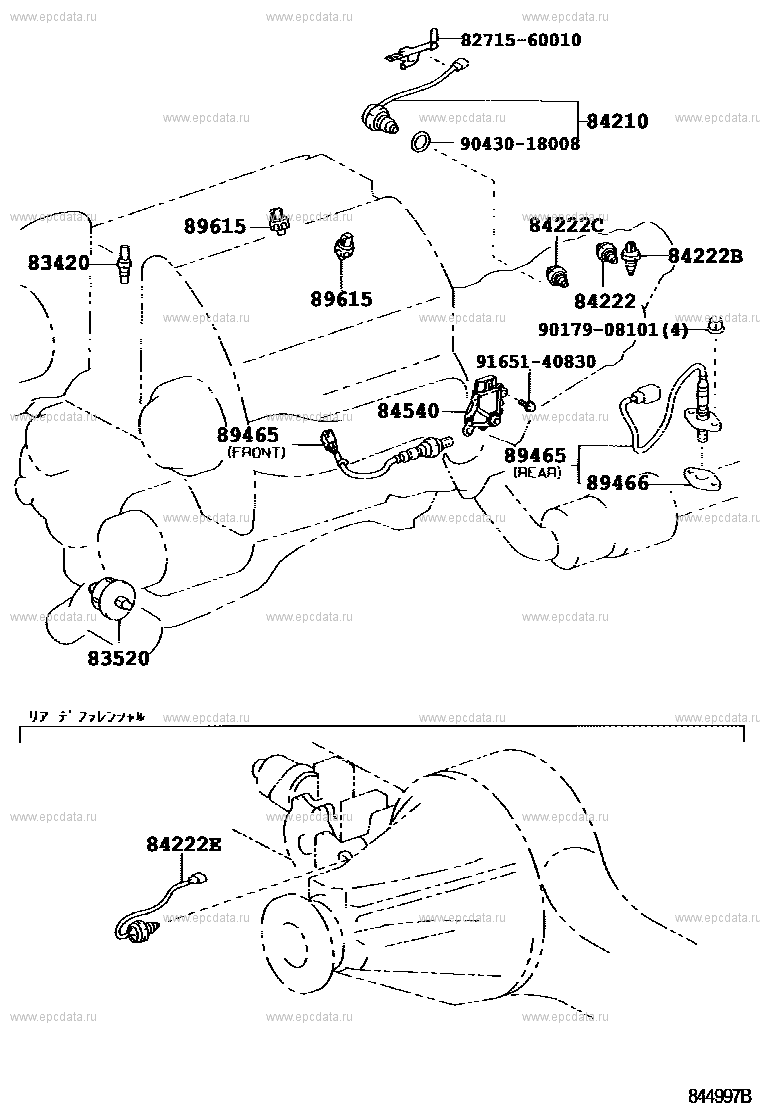

(0208- )UZJ100 ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ILLUST NO. 1 OF 9 |
Click part number in the scheme or in the list: 89615 SENSOR, KNOCK CONTROL83420 GAGE ASSY, WATER TEMPERATURE SENDER 89465 SENSOR, OXYGEN 83520 GAGE ASSY,OIL PRESSURE SENDER 84540 SWITCH ASSY, NEUTRAL START 89466 GASKET, OXYGEN SENSOR 84222B SWITCH, TRANSFER INDICATOR, NO.2 84222 SWITCH, TRANSFER INDICATOR, NO.1 84222C SWITCH, TRANSFER INDICATOR, NO.3 9017908101 ** Std Part 9165140830 ** Std Part 84210 SWITCH ASSY, BACK-UP LAMP 9043018008 ** Std Part 84222E SWITCH, DEFFERENTIAL LOCK INDICATOR 8271560010 ** Std Part |
Scheme 2
|
(0208- ) ｴﾝｼﾞﾝ ﾙ-ﾑ ILLUST NO. 2 OF 9 |
Click part number in the scheme or in the list: 82740 BLOCK ASSY, ENGINE ROOM RELAY9011906171 ** Std Part 91621J0814 ** Std Part 28380A RESISTER, FUEL PUMP 89438 SWITCH, POWER STEERING OIL PRESSURE 82677 COVER, JUNCTION BLOCK, UPPER NO.2 82720 BLOCK ASSY, ENGINE ROOM JUNCTION 82620A BLOCK ASSY, FUSIBLE LINK 82672A COVER, JUNCTION BLOCK 9007510014 ** Std Part 85942 RELAY, HEADLAMP CLEANER CONTROL 9007505002 ** Std Part 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) ** 84-14 ** 84-04 ** 82-02 82600F FUSE, FUSE BLOCK ** 84-19 28300 RELAY ASSY, STARTER 89373 SENSOR, LAMP FAILURE INDICATOR 85915 RELAY, MAIN 9017908053 ** Std Part 28850 SENSOR ASSY, BATTERY CURRENT 91641H0820 ** Std Part |
Scheme 3
|
(0208- ) ｶｳﾙ ILLUST NO. 3 OF 9 |
Click part number in the scheme or in the list: 89531A RELAY, TRANSMISSION CONTROL85943 COMPUTER, WINDSHIELD WIPER 81380S RELAY, STEP LAMP 82672B COVER, JUNCTION BLOCK 82600F FUSE, FUSE BLOCK ** 82-02 9415080600 ** Std Part 9015960303 ** Std Part 83650 FUSEE 9017906159 ** Std Part 81980 FLASHER ASSY, TURN SIGNAL 84340 SWITCH ASSY, STOP LAMP 89227 COMPUTER, MULTIPLEX TILT & TELESCOPIC 9015950098 ** Std Part 89730 COMPUTER ASSY, SECURITY WARNING 89111 COMPUTER, NETWORK GATEWAY 88630G RELAY ASSY, COOLER 91631J0612 ** Std Part 89533 COMPUTER, 4 WHEEL DRIVE CONTROL 82731A BLOCK, COWL SIDE JUNCTION, RH 85912 RELAY, DEFOGGER 28371C RELAY, IGNITION, NO.2 85930G RELAY, ACC 81240F RELAY, DOME LAMP 28371D RELAY, IGNITION, NO.3 82733A BLOCK, COWL SIDE JUNCTION, LH 85930K RELAY, ACC, NO.2 |
Scheme 4
Scheme 5
|
(0208- )CYG ｾﾝﾀｸﾗｽﾀ ｲﾝﾃｸﾞﾚ-ｼﾖﾝ ILLUST NO. 5 OF 9 |
Click part number in the scheme or in the list: 88650H AMPLIFIER ASSY, AIR CONDITIONER84010 SWITCH ASSY, CENTER CLUSTER INTEGRATION 84725A SWITCH, DIFFERENTIAL LOCK 84331 KNOB, HAZARD WARNING SIGNAL SWITCH 9016730010 ** Std Part 55912D HOUSING, HEATER CONTROL 84014A BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 8476160030 ** Std Part 55905G KNOB SUB-ASSY, CONTROL |
Scheme 6
|
(0208- ) ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ILLUST NO. 6 OF 9 |
Click part number in the scheme or in the list: 84450 SWITCH ASSY, IGNITION OR STARTER84258A COVER, STEERING PAD, RH 9016840129 ** Std Part 9015950199 ** Std Part 84052 SWITCH ASSY, UN-LOCK WARNING 84247A SWITCH, STEERING PAD, LH 9046400551 ** Std Part 84244B SWITCH, STEERING PAD, RH 84204 CABLE SUB-ASSY, STEERING PAD SWITCH 84310 SWITCH ASSY, TURN SIGNAL 84140 SWITCH ASSY, HEADLAMP DIMMER 84650 SWITCH ASSY, WINDSHIELD WIPER 89245B SENSOR, STEERING 89246B DISC, SENSOR STEERING 89235 SWITCH, TILT STEERING 84306 CABLE SUB-ASSY, SPIRAL 9331915012 ** Std Part |
Scheme 7
|
(0208- ) ﾄｱ, ﾙ-ﾌ ILLUST NO. 7 OF 9 |
Click part number in the scheme or in the list: 84810 SWITCH ASSY, POWER WINDOW REGULATOR9018906125 ** Std Part 89430 COMPUTER ASSY, OUTER MIRROR CONTROL 9010906296 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84903A SWITCH SUB-ASSY, DOOR UNLOCK 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 89226B COMPUTER, MULTIPLEX NETWORK BODY, NO.2 9165140616 ** Std Part 9016440103 ** Std Part 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84862 SWITCH, SLIDE ROOF MOTOR 84927 SWITCH, SEAT MEMORY 9015960081 ** Std Part 9354014010 ** Std Part |
Scheme 8
|
(0208- ) ﾌﾛｱ, ﾊﾞﾂｸ ﾄﾞｱ ILLUST NO. 8 OF 9 |
Click part number in the scheme or in the list: 85431 SOLENOID, SHIFT LOCK85933 COMPUTER, SHIFT LOCK CONTROL 84727 SWITCH, SHIFT LOCK CONTROL 83320 GAGE ASSY, FUEL SENDER 9331914008 ** Std Part 9331314012 ** Std Part 84550 SWITCH ASSY, PARKING BRAKE 85432 SOLENOID, KEY INTER LOCK 9016840129 ** Std Part 85530B SOCKET ASSY, POWER OUTLET, REAR NO.1 84751 SWITCH, SEAT HEATER 84751B BULB, SEAT HEATER SWITCH 85940B RELAY ASSY, REAR WIPER 9015960303 ** Std Part 9018906125 ** Std Part 84231D SWITCH, COURTESY LAMP (FOR TIRE CARRIER) 84903A SWITCH SUB-ASSY, DOOR UNLOCK 9010906296 ** Std Part 85535C COVER, POWER OUTLET SOCKET, REAR 85539A LABEL, POWER OUTLET NOTICE, REAR 85916Z RELAY, TOWING HITCH ** 82-02 |
Scheme 9
|
(0208- ) ｼ-ﾄ ILLUST NO. 9 OF 9 |
Click part number in the scheme or in the list: 84920 SWITCH ASSY, POWER SEAT8271112120 ** Std Part 82320A COMPUTER & WIRING ASSY, POSITION CONTROL 9356054010 ** Std Part 84922 SWITCH, FRONT POWER SEAT 84921 KNOB, POWER SEAT SWITCH 91511B0614 ** Std Part |
