Moulding for Land Cruiser UZJ100W

Click on the part subgroup below to get genuine part numbers.

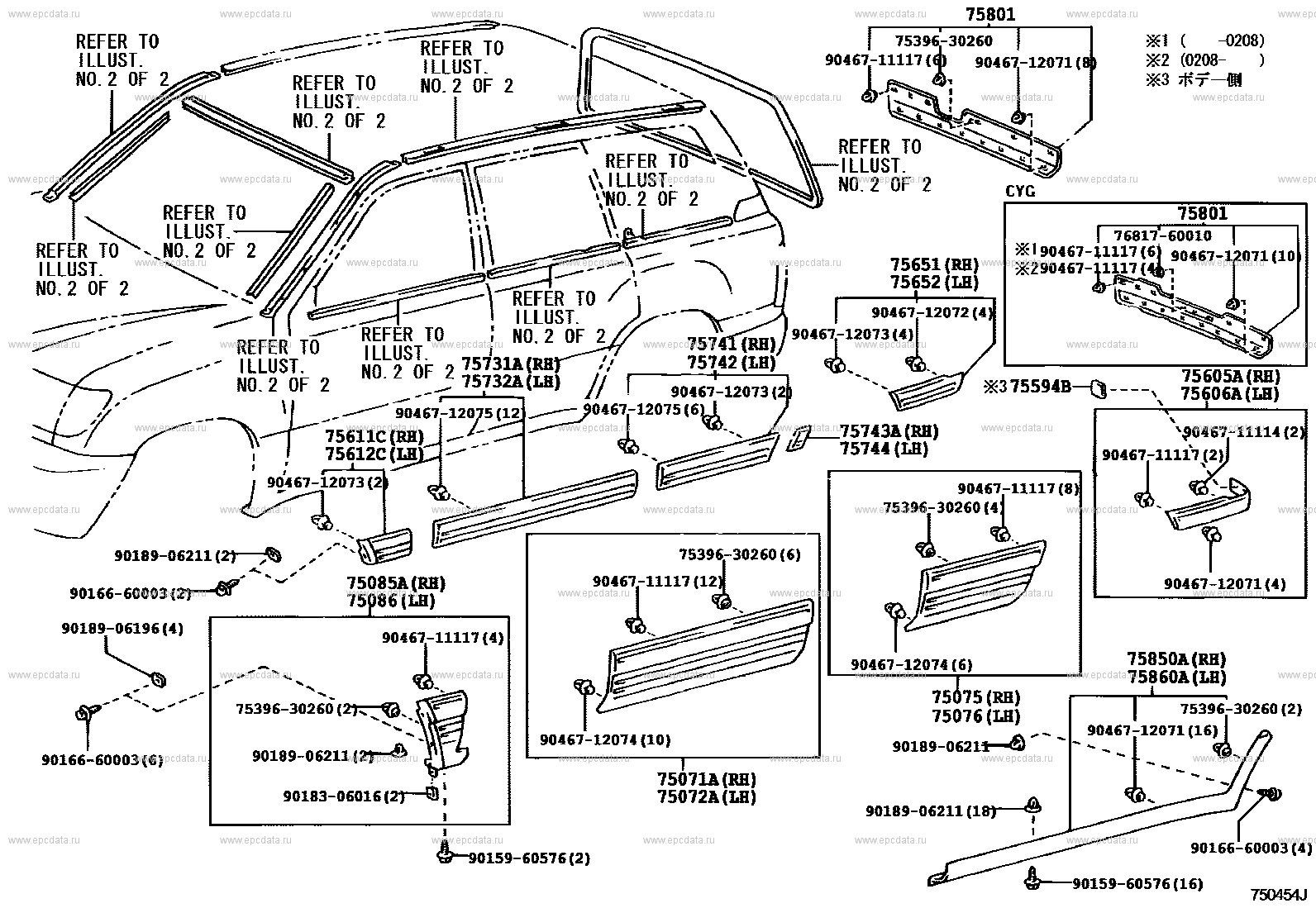

Scheme 1

(9801- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 75071A MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH 75072A MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH 75731A MOULDING, FRONT DOOR, OUTSIDE RH 75732A MOULDING, FRONT DOOR, OUTSIDE LH 9046712075 ** Std Part 75741 MOULDING, REAR DOOR, OUTSIDE RH 75742 MOULDING, REAR DOOR, OUTSIDE LH 9046712073 ** Std Part 75594B PAD, QUARTER GARNISH, RH 9046711117 ** Std Part 7539630260 ** Std Part 75801 MOULDING SUB-ASSY, BACK DOOR, OUTSIDE 9046712071 ** Std Part 75651 MOULDING, QUARTER, OUTSIDE RH 75652 MOULDING, QUARTER, OUTSIDE LH 9046712072 ** Std Part 75743A MOULDING, REAR DOOR, OUTSIDE UPPER REAR RH 75744 MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH 75075 MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH 75076 MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH 9046712074 ** Std Part 75605A MOULDING SUB-ASSY, QUARTER OUTSIDE, RH 75606A MOULDING SUB-ASSY, QUARTER OUTSIDE, LH 9046711114 ** Std Part 75850A MOULDING ASSY, BODY ROCKER PANEL, RH 75860A MOULDING ASSY, BODY ROCKER PANEL, LH 9015960576 ** Std Part 9018906211 ** Std Part 75085A MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH 75086 MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH 9018306016 ** Std Part 9016660003 ** Std Part 9018906196 ** Std Part 75611C MOULDING, FRONT FENDER, OUTSIDE RH 75612C MOULDING, FRONT FENDER, OUTSIDE LH 7681760010 ** Std Part

Scheme 2

(9801- ) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 75533 MOULDING, WINDSHIELD, OUTSIDE RH 75531 MOULDING, WINDSHIELD, OUTER UPPER 75543C MOULDING, WINDSHIELD, OUTSIDE NO.2 RH 75562 CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2 75534 MOULDING, WINDSHIELD, OUTSIDE LH 9026904053 ** Std Part 75710 MOULDING ASSY, FRONT DOOR BELT, RH 75720 MOULDING ASSY, FRONT DOOR BELT, LH 75730 MOULDING ASSY, REAR DOOR BELT, RH 75740 MOULDING ASSY, REAR DOOR BELT, LH 9015940258 ** Std Part 75573B MOULDING, BACK WINDOW, OUTSIDE 9018905072 ** Std Part 75671 MOULDING, QUARTER BELT, RH 75672 MOULDING, QUARTER BELT, LH 9016450044 ** Std Part 75551 MOULDING, ROOF DRIP SIDE FINISH, RH 75552 MOULDING, ROOF DRIP SIDE FINISH, LH 75557C MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH 75558C MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH 75549A MOULDING, WINDSHIELD OUTSIDE SUB

Land Cruiser UZJ100W
