Heating & air conditioning - cooler unit for Land Cruiser UZJ100W
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

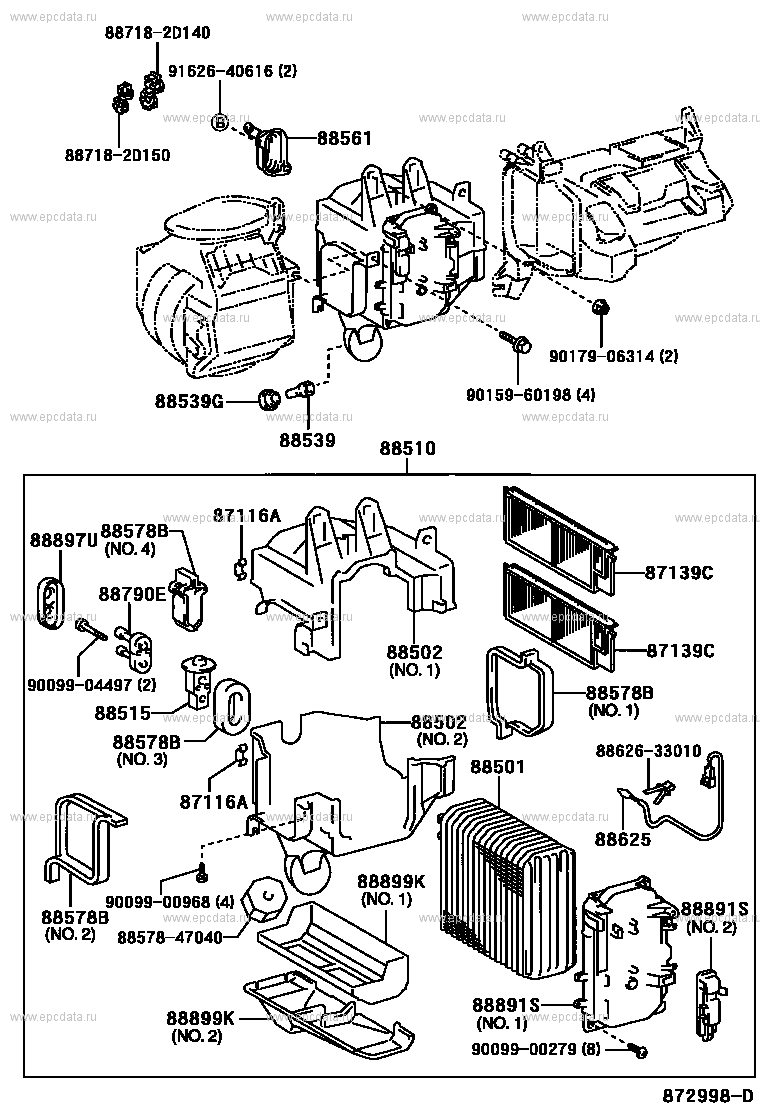

Scheme 1
|
(9801- ) ﾌﾛﾝﾄ ILLUST NO. 1 OF 4 |
Click part number in the scheme or in the list: 887182D140 ** Std Part9162640616 ** Std Part 88561 COVER, COOLER UNIT 887182D150 ** Std Part 9017906314 ** Std Part 9015960198 ** Std Part 88539G GROMMET (FOR COOLER UNIT DRAIN HOSE) 88539 HOSE, COOLER UNIT DRAIN, NO.1 88510 UNIT ASSY, COOLER 87116A SPRING, HOLDING (FOR COOLER UNIT CASE) 88578B PACKING, COOLING UNIT, NO.1 88897U PIPE, ASPIRATOR 87139C FILTER, CLEAN AIR 88790E TUBE & ACCESSORY ASSY, AIRCONDITIONER 88502 CASE SUB-ASSY, COOLING UNIT 9009904497 ** Std Part 88515 VALVE, COOLER EXPANSION 8862633010 ** Std Part 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 88625 THERMISTOR, COOLER, NO.1 88899K PLATE, COVER 9009900968 ** Std Part 88891S COVER, COOLER, NO.1 8857847040 ** Std Part 9009900279 ** Std Part |

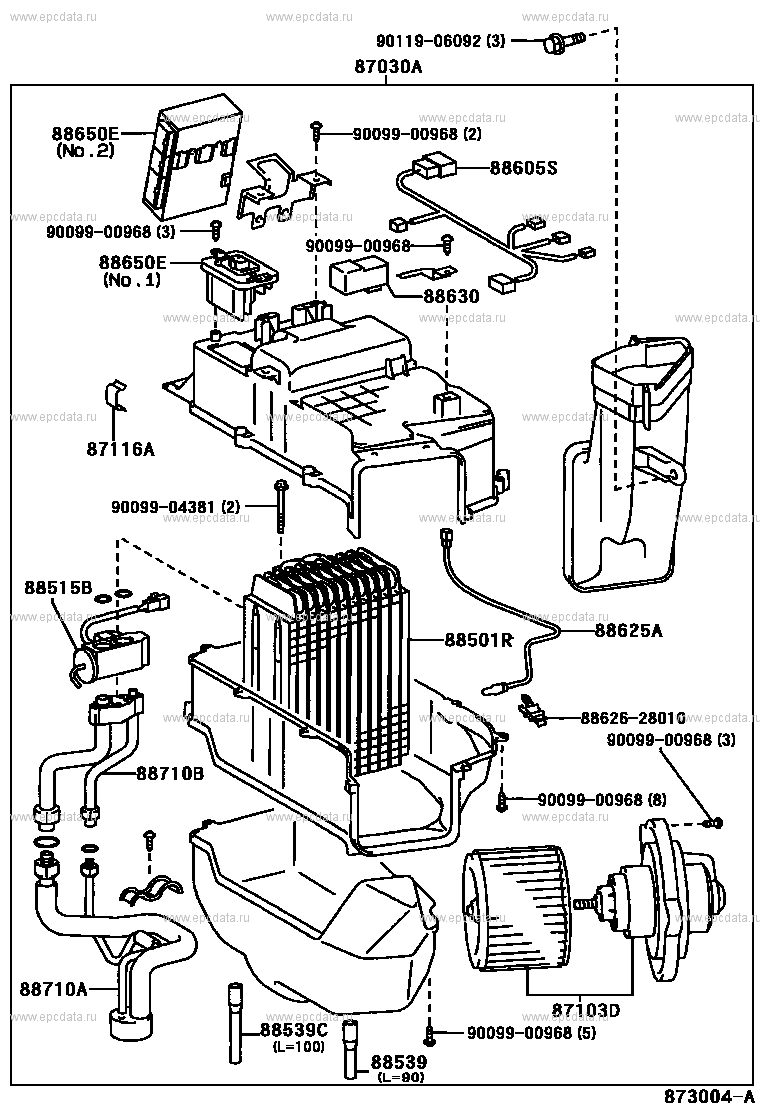

Scheme 2
|
(9801- ) ﾘﾔ ILLUST NO. 2 OF 4 |
Click part number in the scheme or in the list: 9011906092 ** Std Part87030A UNIT ASSY, COOLING, REAR 88650E AMPLIFIER ASSY, AIR CONDITIONER, NO.1 9009900968 ** Std Part 88605S HARNESS SUB-ASSY, WIRING AIR CONDITIONER 88630 RELAY ASSY, COOLER 87116A SPRING, HOLDING (FOR COOLER UNIT CASE) 9009904381 ** Std Part 88515B VALVE, REAR COOLING UNIT EXPANSION 88625A THERMISTOR, COOLER NO.2 88501R EVAPORATOR SUB-ASSY (REAR) 8862628010 ** Std Part 88710B TUBE ASSY, AIRCONDITIONER 88710A TUBE ASSY, AIRCONDITIONER 87103D MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) 88539C HOSE, COOLER UNIT DRAIN, NO.2 88539 HOSE, COOLER UNIT DRAIN, NO.1 |

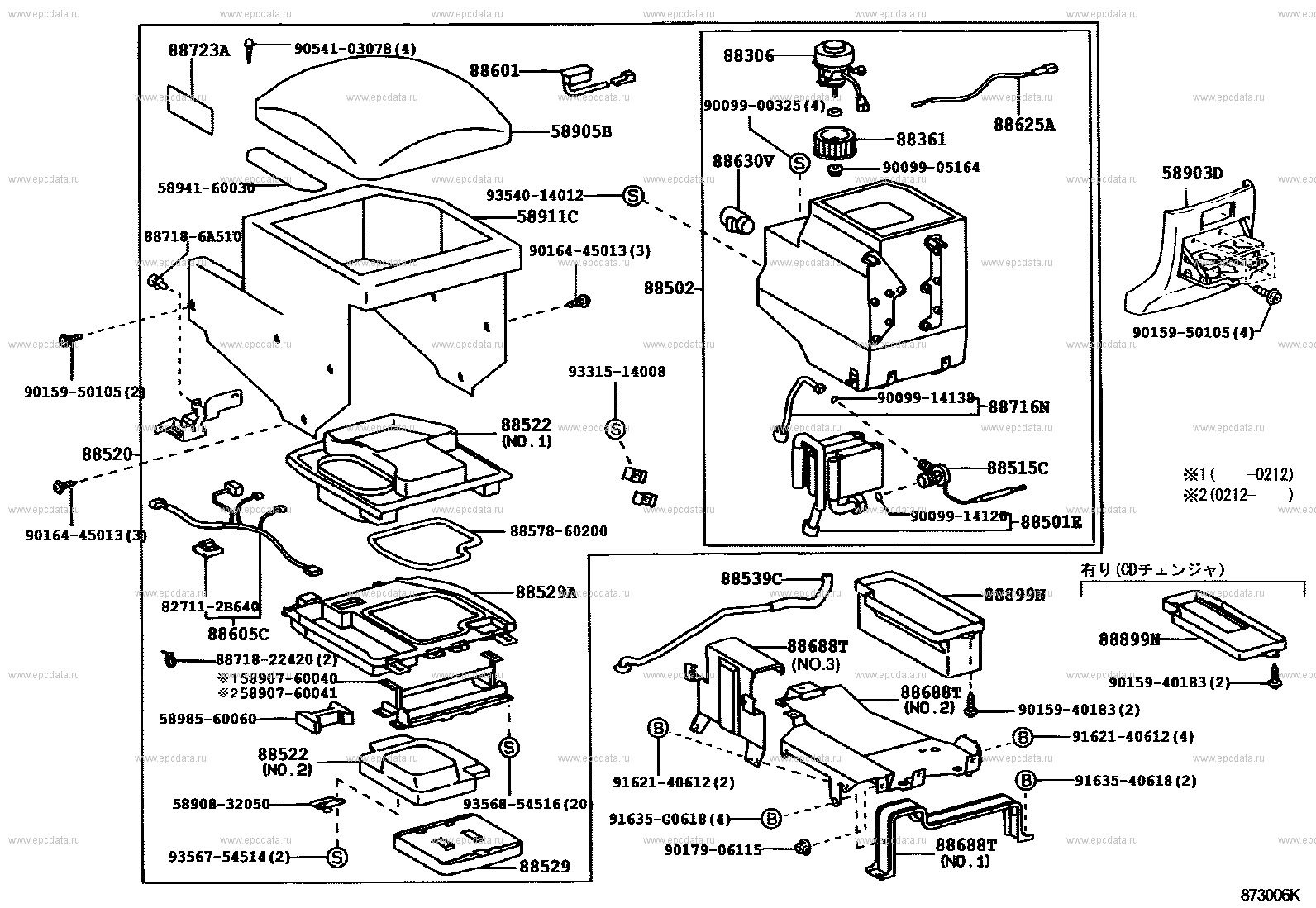

Scheme 3

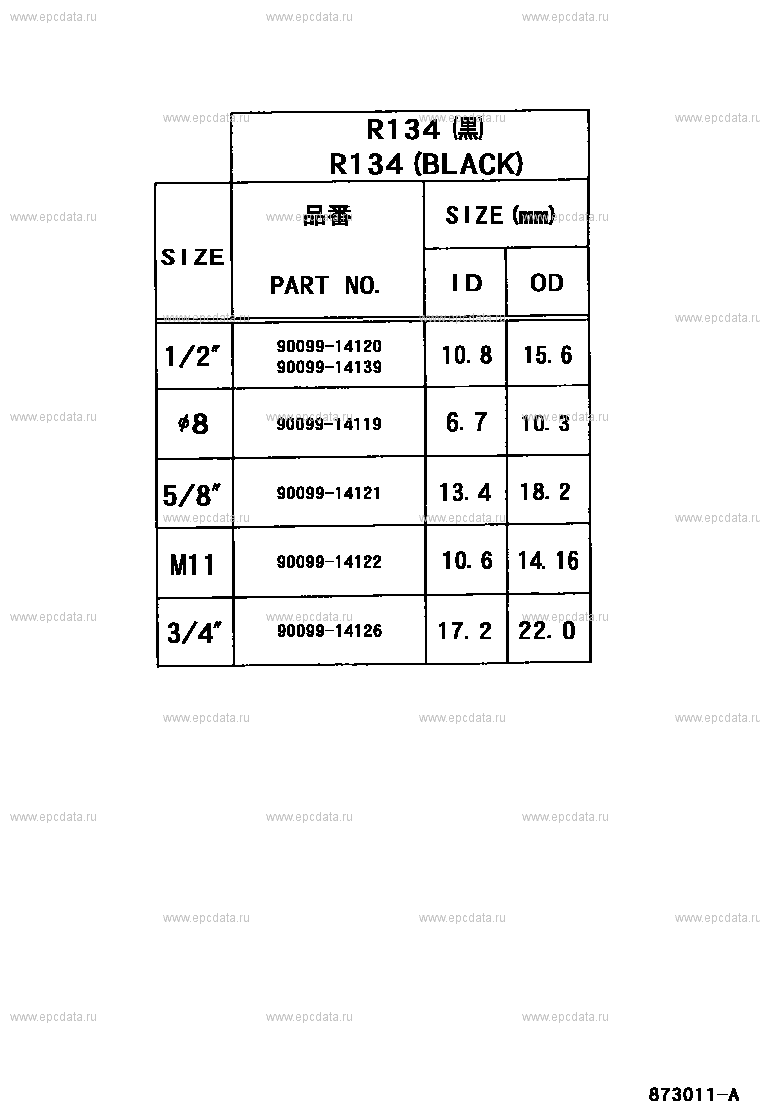

Scheme 4
|
(9801- ) O-ﾘﾝｸﾞ ILLUST NO. 4 OF 4 |
Click part number in the scheme or in the list: 9009914120 ** Std Part9009914139 ** Std Part 9009914119 ** Std Part 9009914121 ** Std Part 9009914122 ** Std Part 9009914126 ** Std Part |
