Rear spring & shock absorber for Land Cruiser HJ60V

Chosen part is not applicable for current complectation

Click on the part subgroup below to get genuine part numbers.

Scheme 1

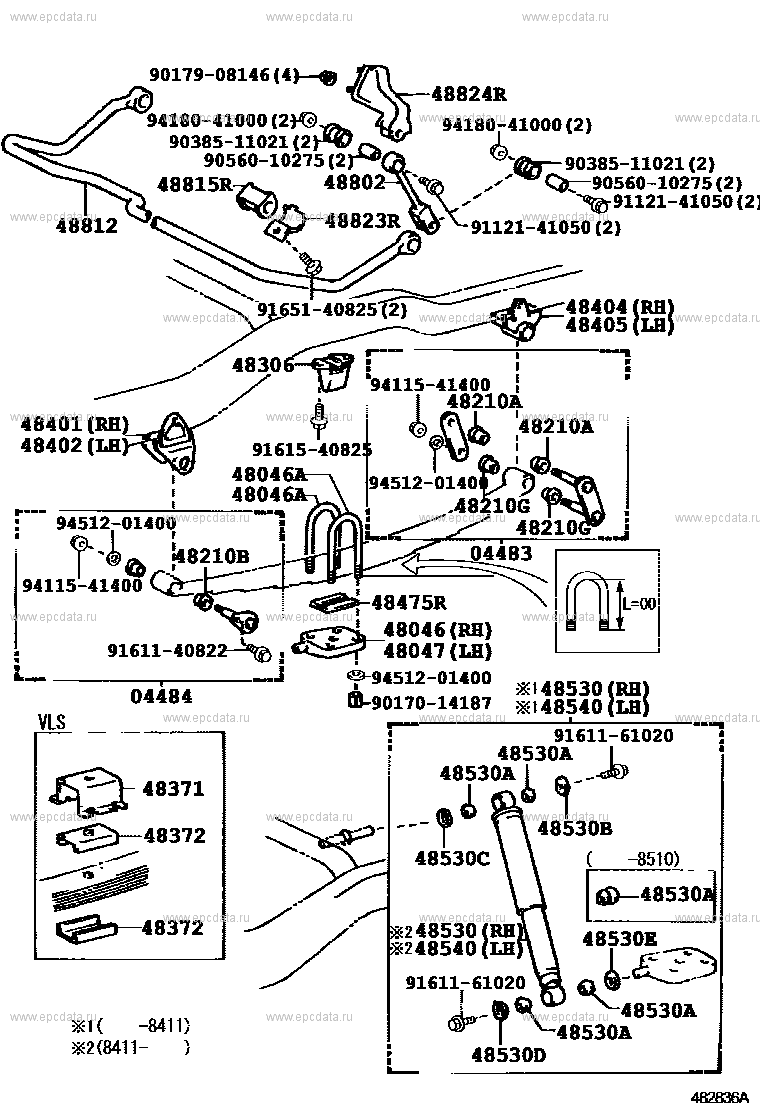

(8008-8510) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9017908146 ** Std Part 48824R BRACKET, STABILIZER(FOR REAR) 9418041000 ** Std Part 9038511021 ** Std Part 9056010275 ** Std Part 48802 LINK SUB-ASSY, STABILIZER 48815R BUSH, STABILIZER(FOR REAR) 9112141050 ** Std Part 48823R COVER, STABILIZER LINK(FOR REAR) 48812 BAR, STABILIZER, REAR 48404 BRACKET SUB-ASSY, REAR SPRING, REAR RH 9165140825 ** Std Part 48405 BRACKET SUB-ASSY, REAR SPRING, REAR LH 48306 BUMPER SUB-ASSY, REAR SPRING 9411541400 ** Std Part 48210A BUSH(FOR REAR SPRING SHACKLE UPPER) 48401 BRACKET SUB-ASSY, REAR SPRING, FRONT RH 48402 BRACKET SUB-ASSY, REAR SPRING, FRONT LH 9161540825 ** Std Part 9451201400 ** Std Part 48210G BUSH(FOR REAR SPRING SHACKLE LOWER) 04483 SHACKLE KIT, REAR SPRING 48210B BUSH(FOR REAR SPRING PIN) 48475R PLATE, DISTANCE(FOR REAR) 48046A BOLT, U(FOR REAR SPRING) 9161140822 ** Std Part 48530 ABSORBER ASSY, SHOCK, REAR RH 04484 PIN KIT, REAR SPRING 9017014187 ** Std Part 48540 ABSORBER ASSY, SHOCK, REAR LH 48046 SEAT SUB-ASSY, SPRING U BOLT, RH 48047 SEAT SUB-ASSY, SPRING U BOLT, LH 48530A BUSH(FOR REAR SHOCK ABSORBER) 9161161020 ** Std Part 48371 RETAINER, REAR SPRING PAD 48530B WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48372 PAD, REAR SPRING 48530C WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530E WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48530D WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

Scheme 2

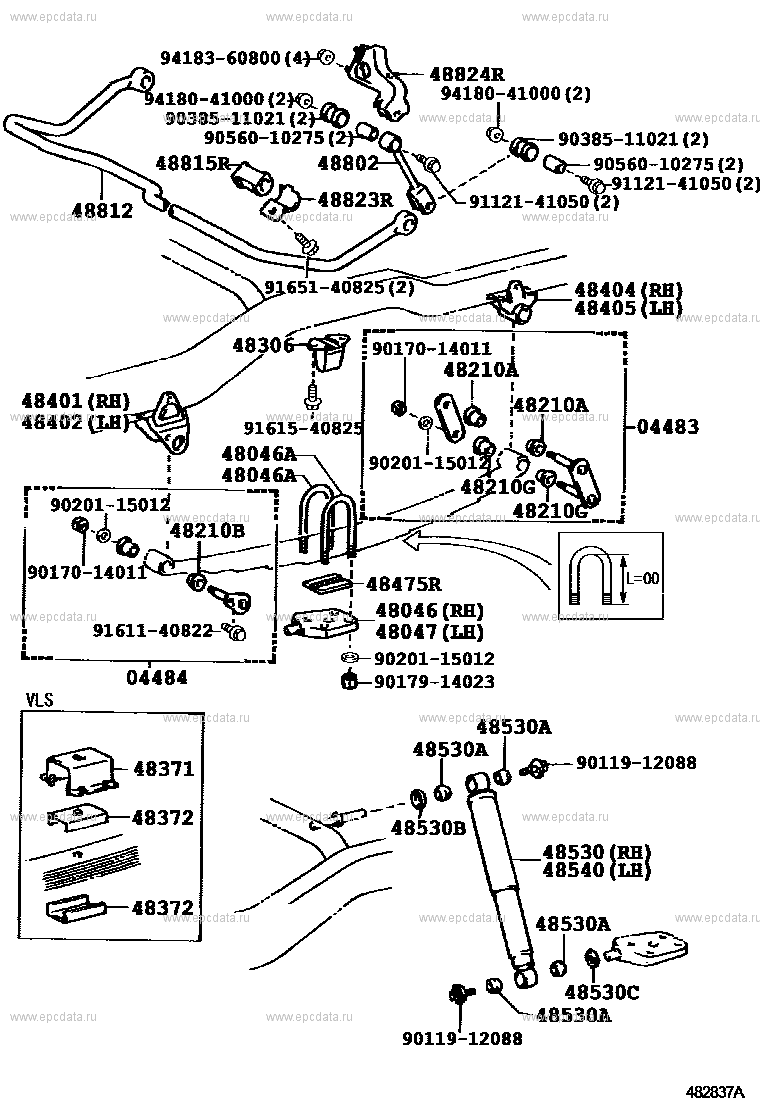

(8510- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9418360800 ** Std Part 48824R BRACKET, STABILIZER(FOR REAR) 9418041000 ** Std Part 9038511021 ** Std Part 9056010275 ** Std Part 48802 LINK SUB-ASSY, STABILIZER 48815R BUSH, STABILIZER(FOR REAR) 9112141050 ** Std Part 48823R COVER, STABILIZER LINK(FOR REAR) 48812 BAR, STABILIZER, REAR 9165140825 ** Std Part 48404 BRACKET SUB-ASSY, REAR SPRING, REAR RH 48405 BRACKET SUB-ASSY, REAR SPRING, REAR LH 48306 BUMPER SUB-ASSY, REAR SPRING 9017014011 ** Std Part 48210A BUSH(FOR REAR SPRING SHACKLE UPPER) 48401 BRACKET SUB-ASSY, REAR SPRING, FRONT RH 9161540825 ** Std Part 48402 BRACKET SUB-ASSY, REAR SPRING, FRONT LH 04483 SHACKLE KIT, REAR SPRING 9020115012 ** Std Part 48210G BUSH(FOR REAR SPRING SHACKLE LOWER) 48210B BUSH(FOR REAR SPRING PIN) 48475R PLATE, DISTANCE(FOR REAR) 48046A BOLT, U(FOR REAR SPRING) 9161140822 ** Std Part 04484 PIN KIT, REAR SPRING 9017914023 ** Std Part 48046 SEAT SUB-ASSY, SPRING U BOLT, RH 48047 SEAT SUB-ASSY, SPRING U BOLT, LH 48530A BUSH(FOR REAR SHOCK ABSORBER) 9011912088 ** Std Part 48371 RETAINER, REAR SPRING PAD 48372 PAD, REAR SPRING 48530B WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530 ABSORBER ASSY, SHOCK, REAR RH 48540 ABSORBER ASSY, SHOCK, REAR LH 48530C WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

Scheme 3

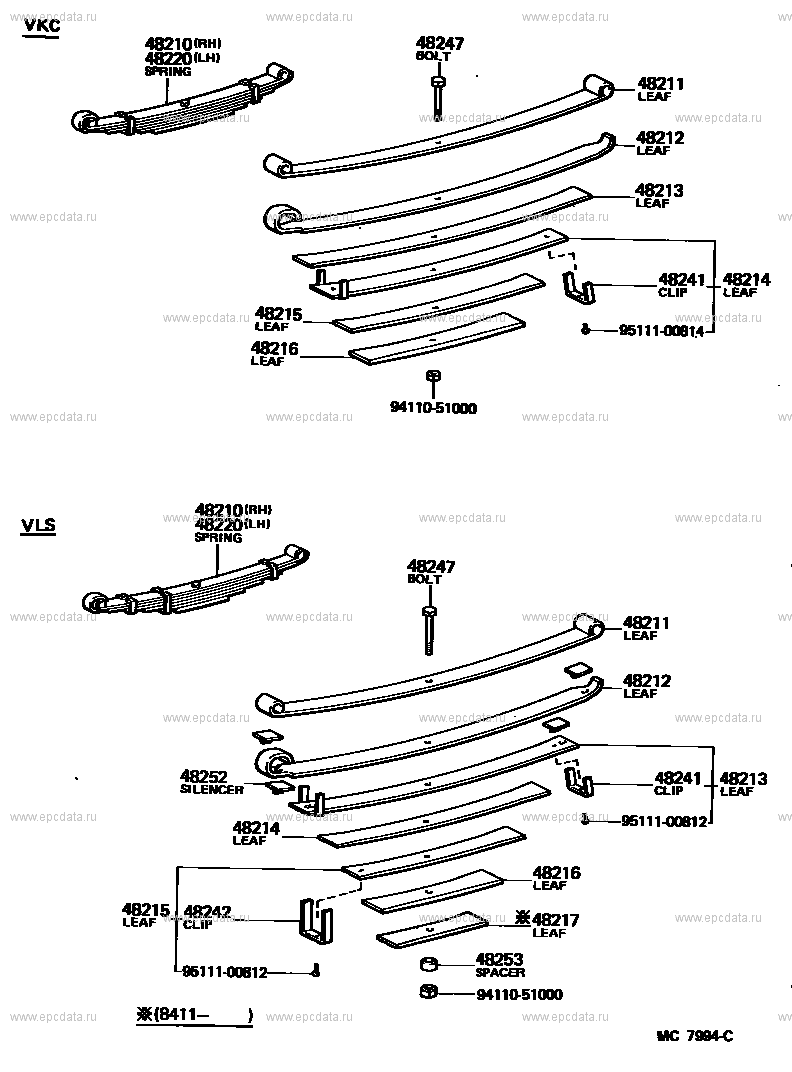

(8008-8608)CBU ; (8608- )VLS ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 48247 BOLT, REAR SPRING, CENTER 48210 SPRING ASSY, REAR RH 48220 SPRING ASSY, REAR LH 48211 LEAF, REAR SPRING, NO.1 48212 LEAF, REAR SPRING, NO.2 48213 LEAF, REAR SPRING, NO.3 48241 CLIP, REAR SPRING, NO.1 48214 LEAF, REAR SPRING, NO.4 48215 LEAF, REAR SPRING, NO.5 9511100814 ** Std Part 48216 LEAF, REAR SPRING, NO.6 9411051000 ** Std Part 48252 SILENCER, REAR SPRING 9511100812 ** Std Part 48242 CLIP, REAR SPRING, NO.2 48217 LEAF, REAR SPRING, NO.7 48253 SPACER, REAR SPRING, NO.1

Scheme 4

(8008-8608)CBU ; (8608- )VLS ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 48247 BOLT, REAR SPRING, CENTER 48210 SPRING ASSY, REAR RH 48220 SPRING ASSY, REAR LH 48211 LEAF, REAR SPRING, NO.1 48212 LEAF, REAR SPRING, NO.2 48213 LEAF, REAR SPRING, NO.3 48241 CLIP, REAR SPRING, NO.1 48214 LEAF, REAR SPRING, NO.4 48215 LEAF, REAR SPRING, NO.5 9511100814 ** Std Part 48216 LEAF, REAR SPRING, NO.6 9411051000 ** Std Part 48252 SILENCER, REAR SPRING 9511100812 ** Std Part 48242 CLIP, REAR SPRING, NO.2 48217 LEAF, REAR SPRING, NO.7 48253 SPACER, REAR SPRING, NO.1
