Injection pump assembly for Land Cruiser HDJ81V

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 23742 23742-17010 03 01.1990 - 01.1998 CLAMP, INJECTION PIPE, NO.2 1HDT,1HZ..HDJ81,HZJ81 ＮＯ．１  1.53 to 3.19 USD 02 23742 23742-17020 01 01.1990 - 01.1998 CLAMP, INJECTION PIPE, NO.2 1HDT,1HZ..HDJ81,HZJ81 ＮＯ．２  2.94 to 6.56 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

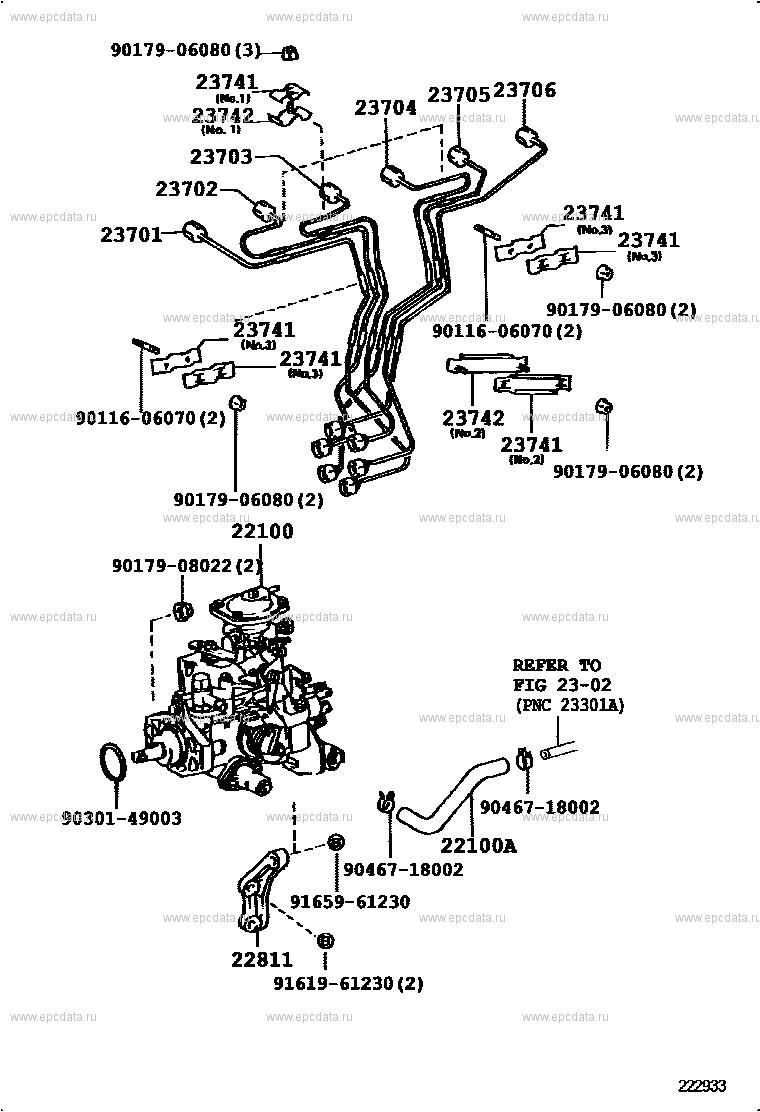

Scheme 1

(9001-9208)1HDT Open full size scheme Go to top

Click part number in the scheme or in the list: 9017906080 ** Std Part 23741 CLAMP, INJECTION PIPE, NO.1 23706 PIPE SUB-ASSY, INJECTION, NO.6 23705 PIPE SUB-ASSY, INJECTION, NO.5 23704 PIPE SUB-ASSY, INJECTION, NO.4 23742 CLAMP, INJECTION PIPE, NO.2 23703 PIPE SUB-ASSY, INJECTION, NO.3 23702 PIPE SUB-ASSY, INJECTION, NO.2 23701 PIPE SUB-ASSY, INJECTION, NO.1 9011606070 ** Std Part 22100 PUMP ASSY, INJECTION OR SUPPLY 9017908022 ** Std Part 9046718002 ** Std Part 9030149003 ** Std Part 22100A HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 9165961230 ** Std Part 22811 STAY, INJECTION PUMP, NO.1 9161961230 ** Std Part ** 23-02

Scheme 2

(9208-9501)1HDT Open full size scheme Go to top

Click part number in the scheme or in the list: 9017906080 ** Std Part 23741 CLAMP, INJECTION PIPE, NO.1 23706 PIPE SUB-ASSY, INJECTION, NO.6 23705 PIPE SUB-ASSY, INJECTION, NO.5 23704 PIPE SUB-ASSY, INJECTION, NO.4 23742 CLAMP, INJECTION PIPE, NO.2 23703 PIPE SUB-ASSY, INJECTION, NO.3 23702 PIPE SUB-ASSY, INJECTION, NO.2 23701 PIPE SUB-ASSY, INJECTION, NO.1 9011606070 ** Std Part 22100 PUMP ASSY, INJECTION OR SUPPLY 9046400500 ** Std Part 9017908022 ** Std Part 22100A HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 9046718002 ** Std Part 9046400484 ** Std Part 23811 PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) 9030149003 ** Std Part 23849 SUPPORT, FUEL 9164281230 ** Std Part 9162160814 ** Std Part 9011910630 ** Std Part 22811 STAY, INJECTION PUMP, NO.1 9151261230 ** Std Part

Land Cruiser HDJ81V
