Switch & relay & computer for Land Cruiser HDJ101K
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

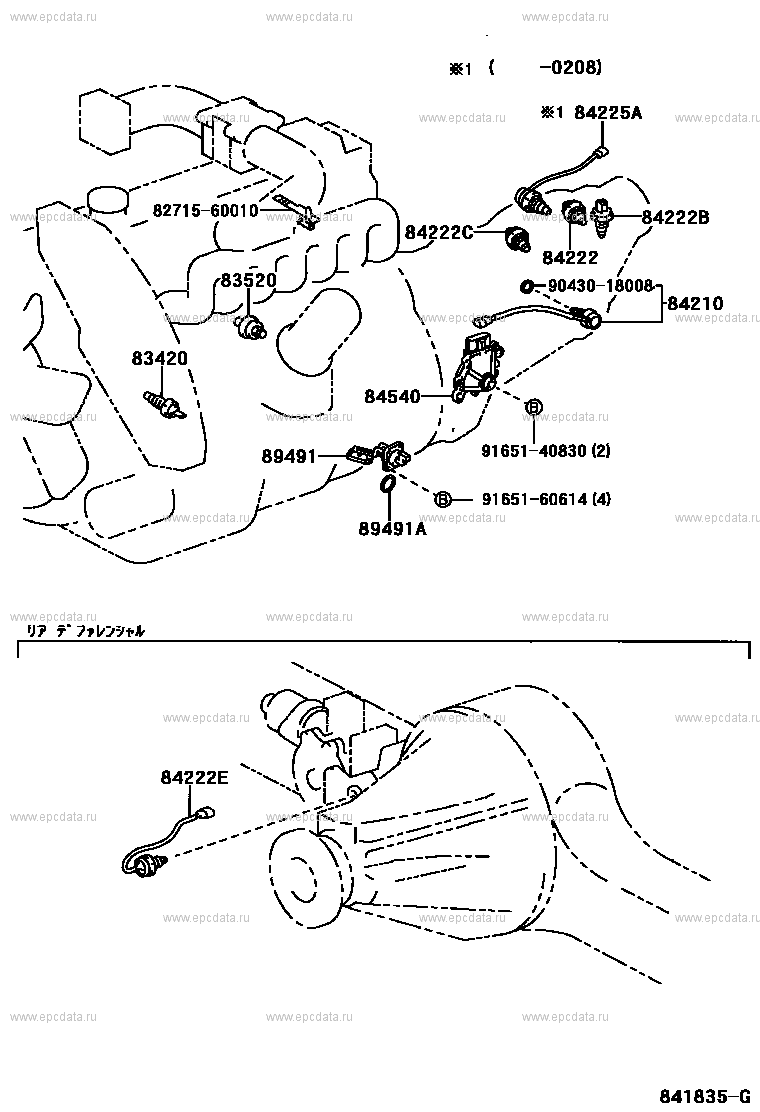

(9801- )HDJ101 ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ILLUST NO. 1 OF 9 |
Click part number in the scheme or in the list: 84225A SWITCH, SHIFT POSITION8271560010 ** Std Part 84222B SWITCH, TRANSFER INDICATOR, NO.2 84222C SWITCH, TRANSFER INDICATOR, NO.3 84222 SWITCH, TRANSFER INDICATOR, NO.1 83520 GAGE ASSY,OIL PRESSURE SENDER 9043018008 ** Std Part 84210 SWITCH ASSY, BACK-UP LAMP 83420 GAGE ASSY, WATER TEMPERATURE SENDER 84540 SWITCH ASSY, NEUTRAL START 9165140830 ** Std Part 89491 SENSOR, ENGINE OIL LEVEL 9165160614 ** Std Part 89491A GASKET, ENGINE OIL LEVEL SENSOR 84222E SWITCH, DEFFERENTIAL LOCK INDICATOR |
Scheme 2
|

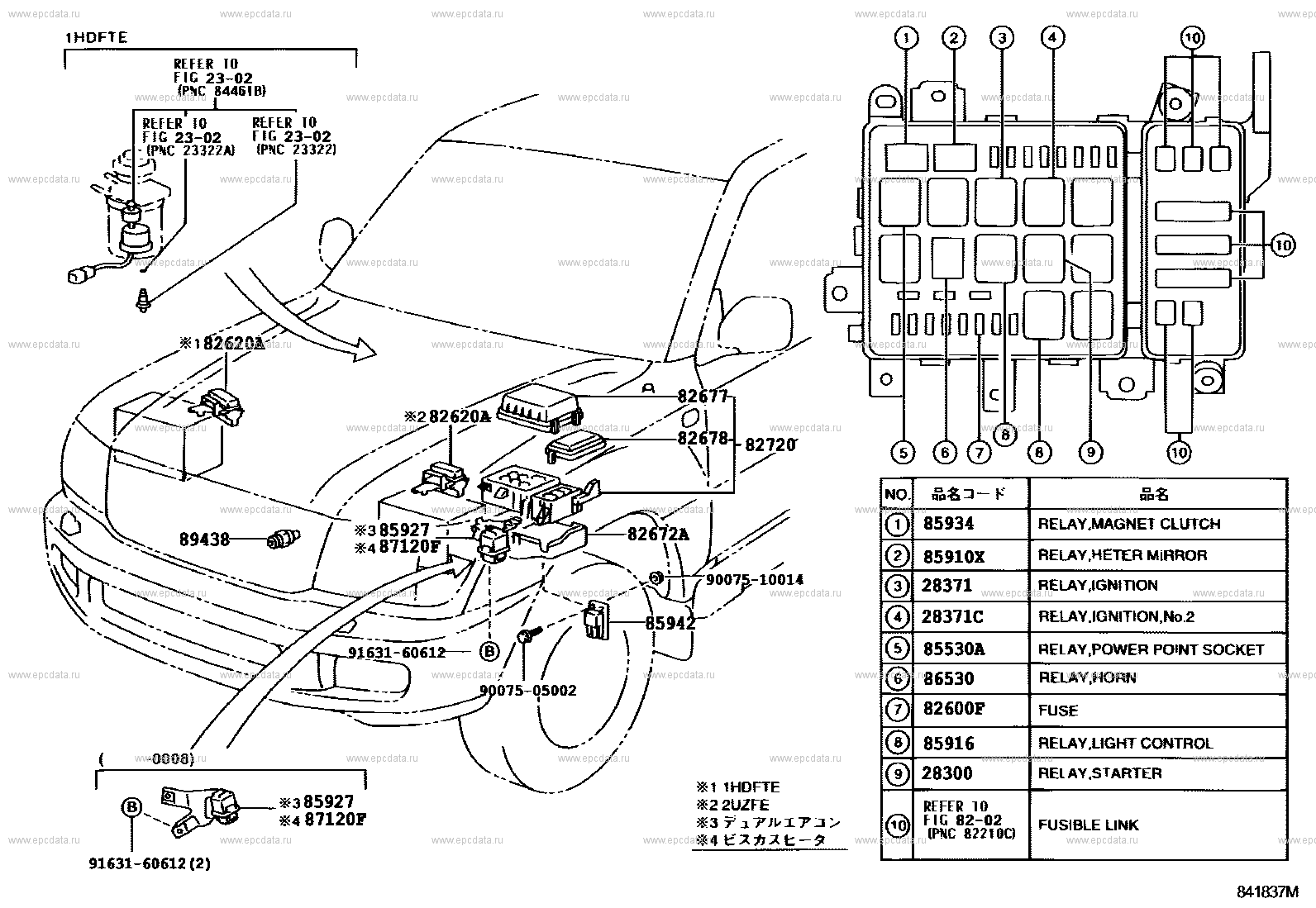

(9801-0208) ｴﾝｼﾞﾝ ﾙ-ﾑ ILLUST NO. 2 OF 9 |
Click part number in the scheme or in the list: ** 23-0282620A BLOCK ASSY, FUSIBLE LINK 89438 SWITCH, POWER STEERING OIL PRESSURE 85927 RELAY, COOLING FAN 87120F RELAY, VISCOUS HEATER 9163160612 ** Std Part 9007505002 ** Std Part 85942 RELAY, HEADLAMP CLEANER CONTROL 82672A COVER, JUNCTION BLOCK 9007510014 ** Std Part 85934 RELAY, MAGNET-CLUTCH 85910X RELAY, HEATER MIRROR 28371 RELAY, IGNITION, NO.1 28371C RELAY, IGNITION, NO.2 85530A RELAY, POWER OUTLET SOCKET 86530 RELAY ASSY, HORN 82600F FUSE, FUSE BLOCK 85916 RELAY, LIGHT CONTROL 28300 RELAY ASSY, STARTER ** 82-02 82678 COVER, JUNCTION BLOCK, UPPER NO.3 82677 COVER, JUNCTION BLOCK, UPPER NO.2 82720 BLOCK ASSY, ENGINE ROOM JUNCTION |
Scheme 3
|

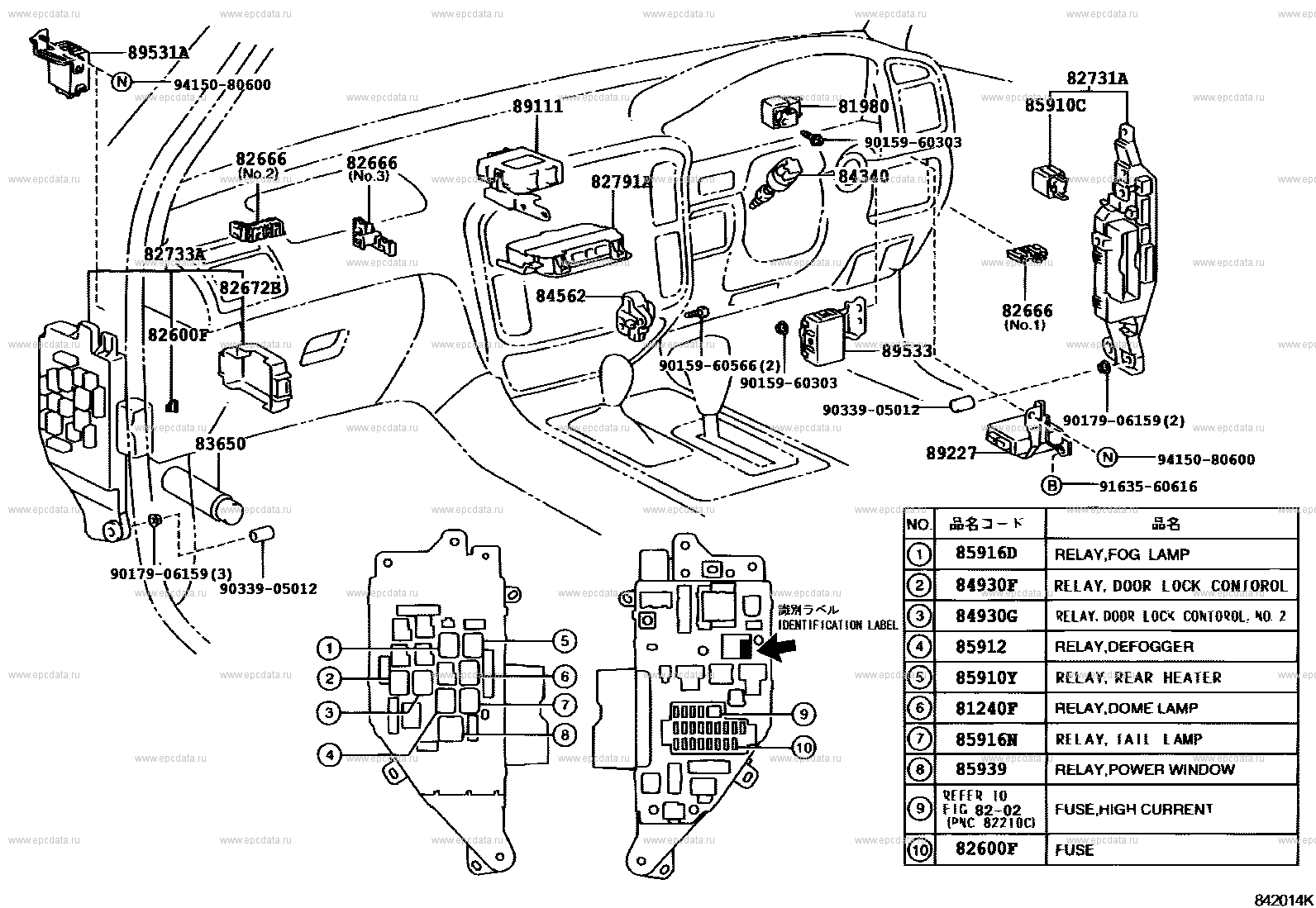

(9801-0208) ｶｳﾙ ILLUST NO. 3 OF 9 |
Click part number in the scheme or in the list: 89531A RELAY, TRANSMISSION CONTROL9415080600 ** Std Part 82666 HOLDER, CONNECTOR 82733A BLOCK, COWL SIDE JUNCTION, LH 82672B COVER, JUNCTION BLOCK 82600F FUSE, FUSE BLOCK 82791A CONTROLLER & JUNCTION, INSTRUMENT PANEL 84562 SWITCH, FUEL CONTROL 89111 COMPUTER, NETWORK GATEWAY 9015960566 ** Std Part 84340 SWITCH ASSY, STOP LAMP 89533 COMPUTER, 4 WHEEL DRIVE CONTROL 9033905012 ** Std Part 89227 COMPUTER, MULTIPLEX TILT & TELESCOPIC 9015960303 ** Std Part 81980 FLASHER ASSY, TURN SIGNAL 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 9017906159 ** Std Part 9163560616 ** Std Part 85916D RELAY, FOG LAMP 84930F RELAY, DOOR LOCK CONTOROL 84930G RELAY, DOOR LOCK CONTROL, NO.2 85912 RELAY, DEFOGGER 85910Y RELAY, REAR HEATER 81240F RELAY, DOME LAMP 85916N RELAY, TAIL LAMP 85939 RELAY, POWER WINDOW ** 82-02 82731A BLOCK, COWL SIDE JUNCTION, RH 83650 FUSEE |
Scheme 4
|
(9801-0208) ｲﾝﾊﾟﾈ ｽｲﾂﾁ ILLUST NO. 4 OF 9 |
Click part number in the scheme or in the list: 84732B BULB, REAR HEATER BLOWER SWITCH84870A SWITCH ASSY, OUTER MIRROR 84870B BULB, OUTER MIRROR SWITCH 84870C CAP, OUTER MIRROR SWITCH BULB 84725A SWITCH, DIFFERENTIAL LOCK 85500 LIGHTER ASSY, CIGARETTE 85500B BULB, CIGARETTE LIGHTER 85515 STAY, CIGARETTE LIGHTER BEZEL 85513 COVER, CIGARETTE LIGHTER 84119 RHEOSTAT, LIGHT CONTROL 9356855014 ** Std Part 84835 SWITCH, POWER QUARTER WINDOW 84835A BLUB, POWER QUARTER WINDOW SWITCH 84150D SWITCH ASSY, HEADLAMP CLEANER 84150E BULB, HEADLAMP CLEANER SWITCH 85535B COVER, POWER OUTLET SOCKET, NO.1 85539 LABEL, POWER OUTLET NOTICE 84453 SWITCH, IDLE UP 84453B LAMP, IDLE UP SWITCH 85530 SOCKET ASSY, POWER OUTLET, NO.1 87290 SWITCH ASSY, HEATER 87290B BULB (FOR HEATER SWITCH) 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER |
Scheme 5
|

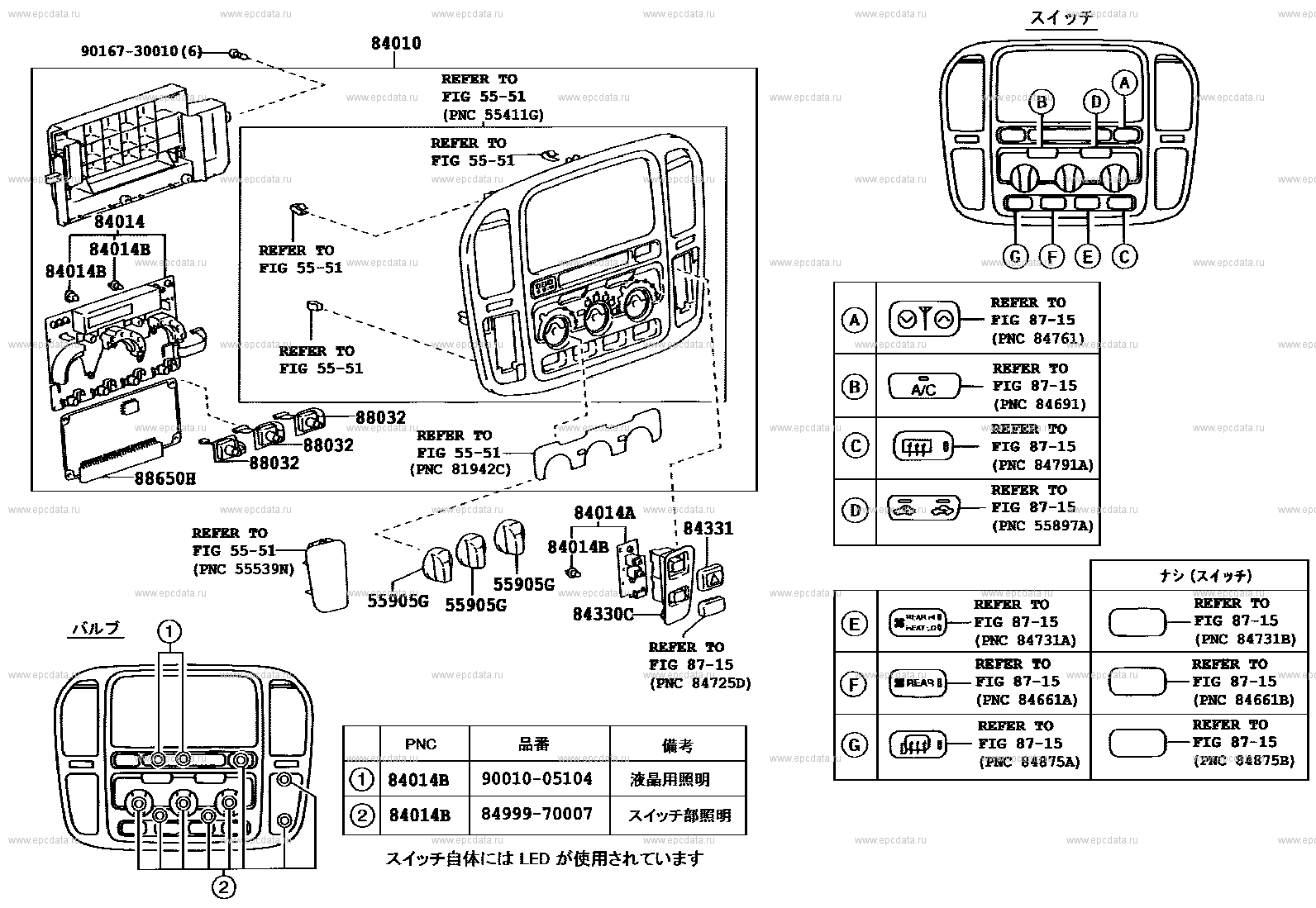

(9801-0208)VX,VXL ｾﾝﾀｸﾗｽﾀ ｲﾝﾃｸﾞﾚ-ｼﾖﾝ ILLUST NO. 5 OF 9 |
Click part number in the scheme or in the list: 84014 BOARD SUB-ASSY, PRINTED WIRE INTEGRATION84014B BULB, PRINTED WIRE INTEGRATION BOARD 88650H AMPLIFIER ASSY, AIR CONDITIONER 88032 SWITCH, HEATER CONTROL VOLUME 84330C COVER, HAZARD WARNING SIGNAL SWITCH 84010 SWITCH ASSY, CENTER CLUSTER INTEGRATION 9016730010 ** Std Part 84331 KNOB, HAZARD WARNING SIGNAL SWITCH 55905G KNOB SUB-ASSY, CONTROL 84014A BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 ** 55-51 ** 87-15 |
Scheme 6
|

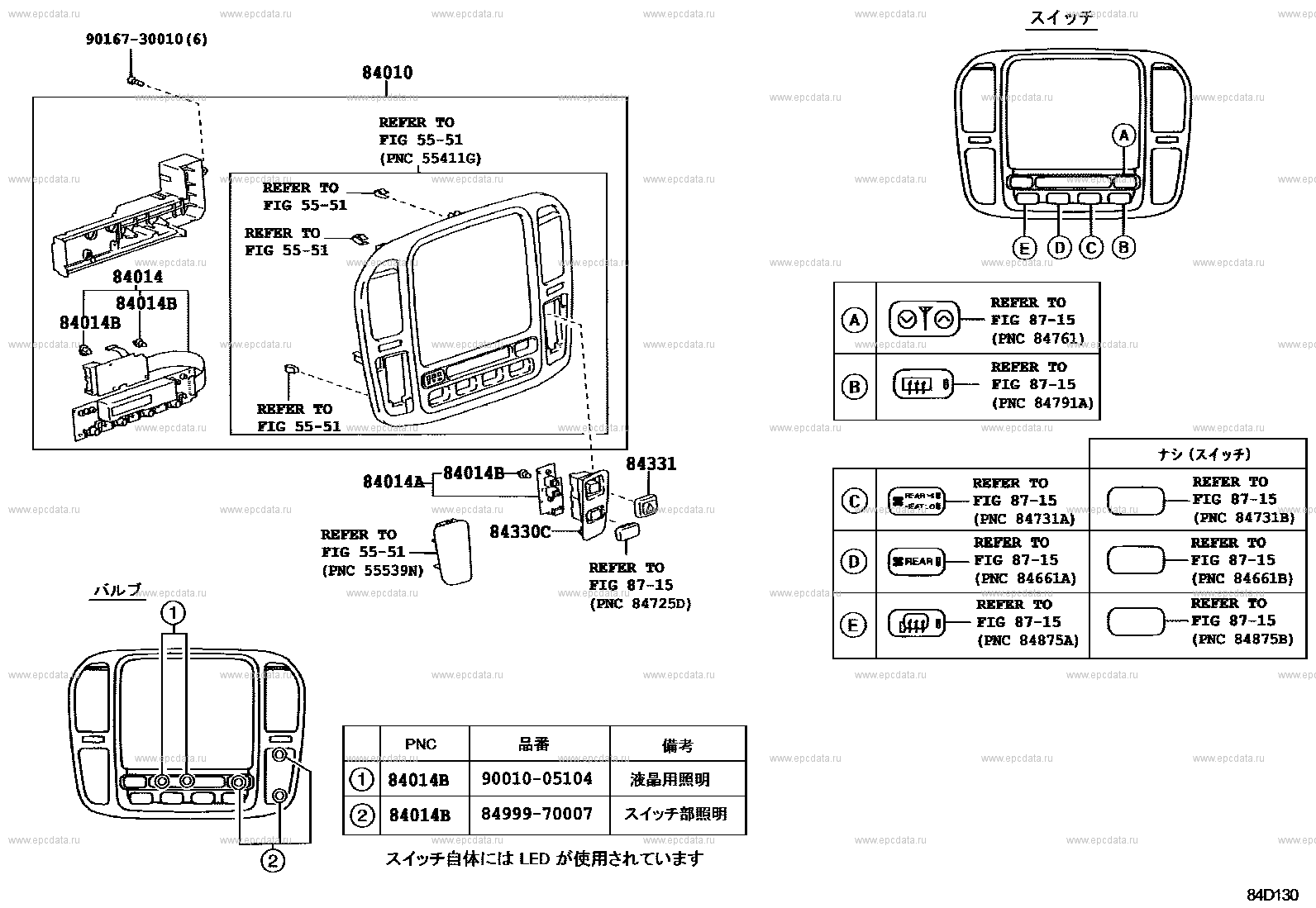

(9801-0208)CYG,VXL ｾﾝﾀｸﾗｽﾀ ｲﾝﾃｸﾞﾚｰｼｮﾝ ILLUST NO. 5 OF 9 |
Click part number in the scheme or in the list: 84014 BOARD SUB-ASSY, PRINTED WIRE INTEGRATION84014B BULB, PRINTED WIRE INTEGRATION BOARD 84330C COVER, HAZARD WARNING SIGNAL SWITCH 84010 SWITCH ASSY, CENTER CLUSTER INTEGRATION 9016730010 ** Std Part 84331 KNOB, HAZARD WARNING SIGNAL SWITCH 84014A BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 ** 55-51 ** 87-15 |
Scheme 7
|

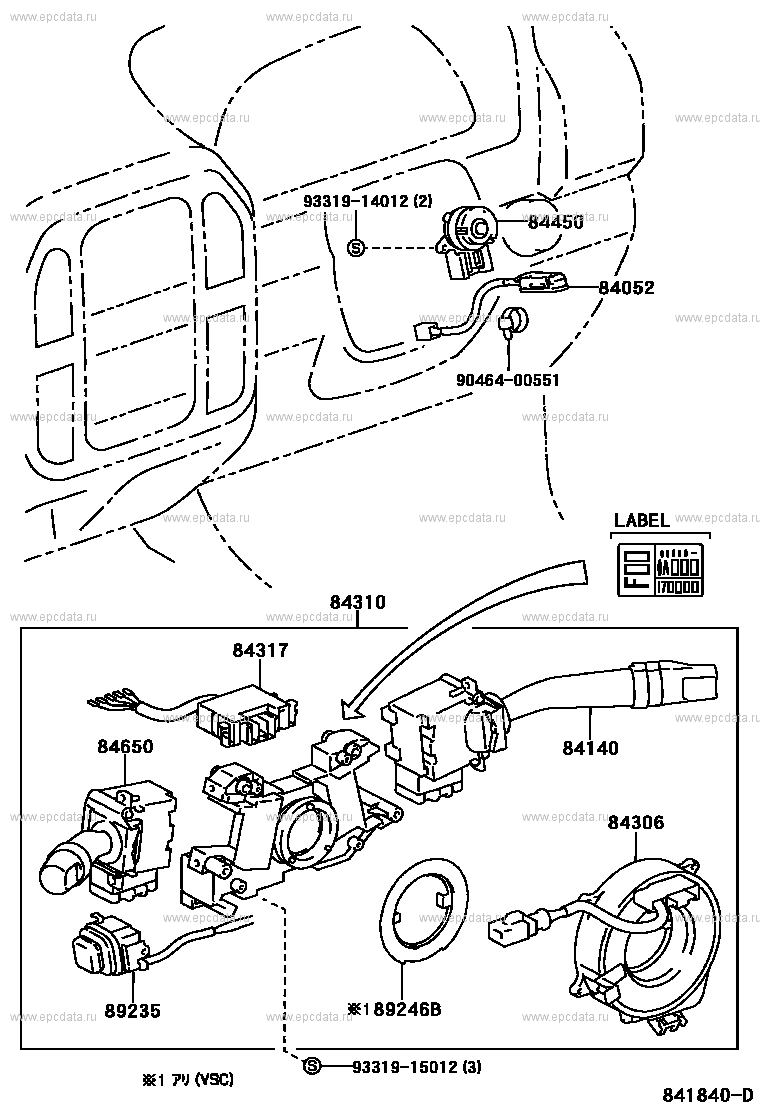

(9801-0208) ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ ILLUST NO. 6 OF 9 |
Click part number in the scheme or in the list: 9331914012 ** Std Part84450 SWITCH ASSY, IGNITION OR STARTER 84052 SWITCH ASSY, UN-LOCK WARNING 9046400551 ** Std Part 84310 SWITCH ASSY, TURN SIGNAL 84317 SENSOR, STEERING POSITION 84650 SWITCH ASSY, WINDSHIELD WIPER 84140 SWITCH ASSY, HEADLAMP DIMMER 84306 CABLE SUB-ASSY, SPIRAL 89246B DISC, SENSOR STEERING 89235 SWITCH, TILT STEERING 9331915012 ** Std Part |
Scheme 8
|

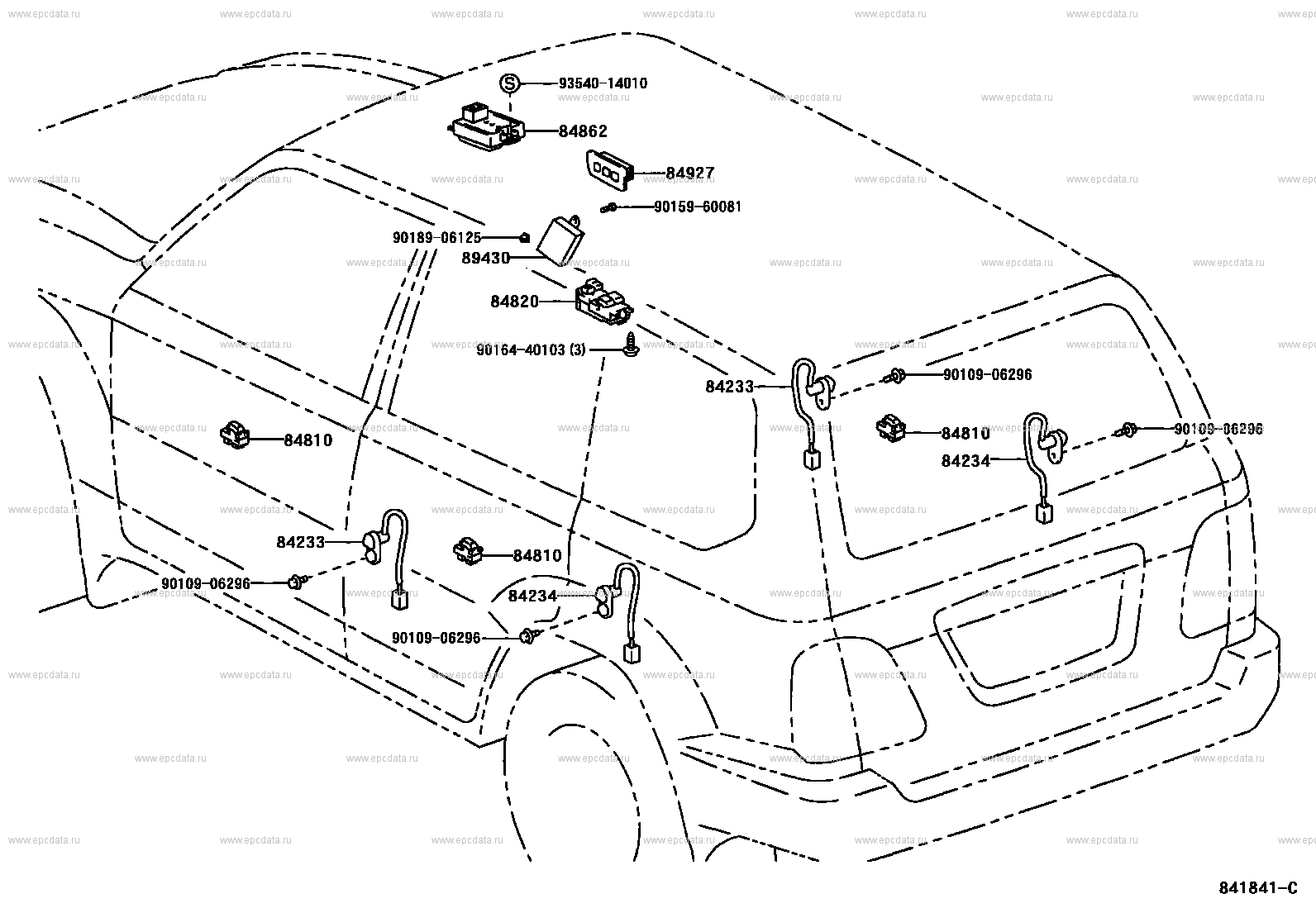

(9801-0208) ﾄﾞｱ, ﾙ-ﾌ ILLUST NO. 7 OF 9 |
Click part number in the scheme or in the list: 9354014010 ** Std Part84862 SWITCH, SLIDE ROOF MOTOR 84927 SWITCH, SEAT MEMORY 9015960081 ** Std Part 9018906125 ** Std Part 89430 COMPUTER ASSY, OUTER MIRROR CONTROL 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 9016440103 ** Std Part 9010906296 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84810 SWITCH ASSY, POWER WINDOW REGULATOR 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) |
Scheme 9
|

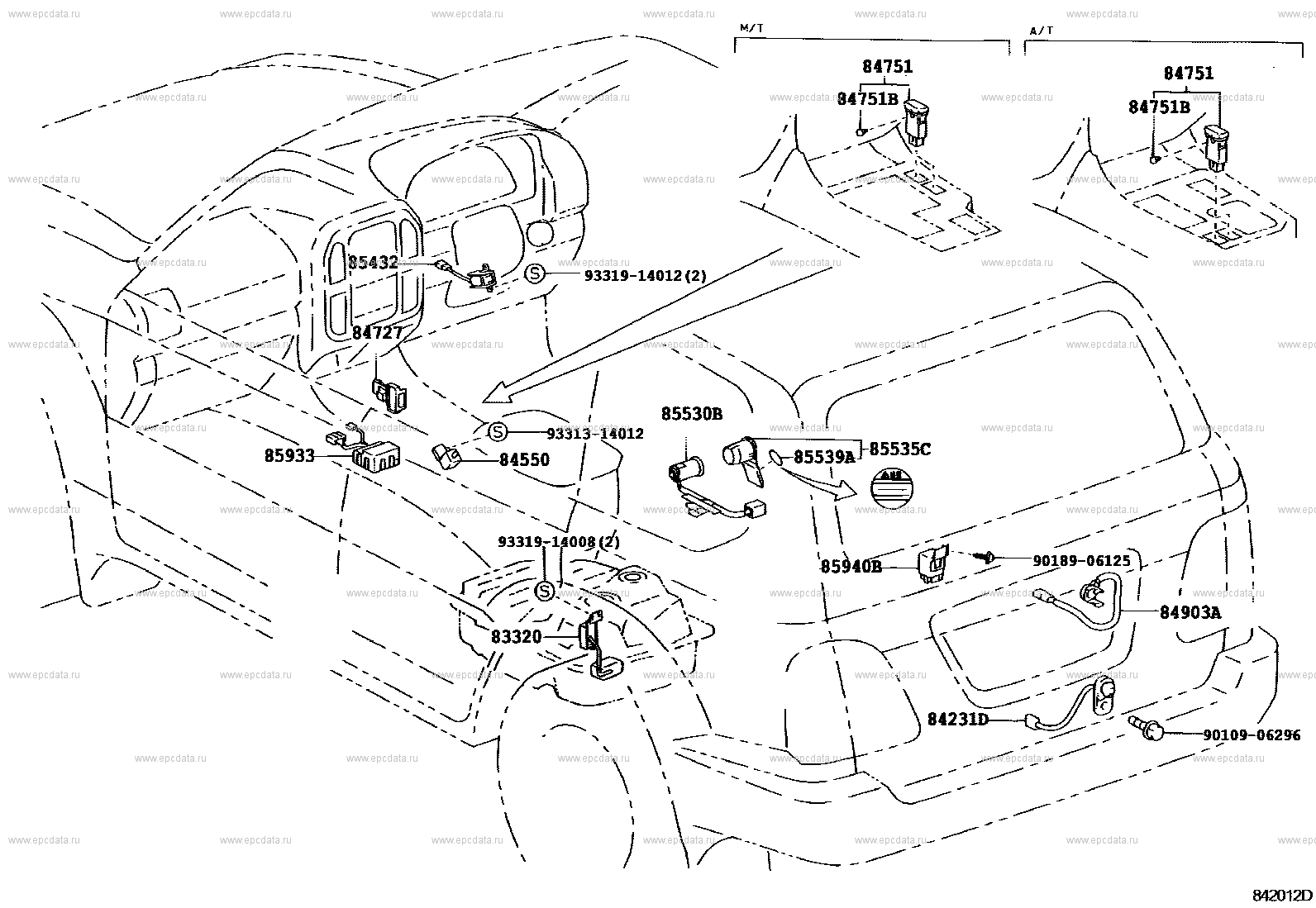

(9801-0208) ﾌﾛｱ, ﾊﾞﾂｸ ﾄﾞｱ ILLUST NO. 8 OF 9 |
Click part number in the scheme or in the list: 85432 SOLENOID, KEY INTER LOCK84727 SWITCH, SHIFT LOCK CONTROL 85933 COMPUTER, SHIFT LOCK CONTROL 84550 SWITCH ASSY, PARKING BRAKE 9331914012 ** Std Part 9331914008 ** Std Part 9331314012 ** Std Part 85530B SOCKET ASSY, POWER OUTLET, REAR NO.1 85535C COVER, POWER OUTLET SOCKET, REAR 85539A LABEL, POWER OUTLET NOTICE, REAR 85940B RELAY ASSY, REAR WIPER 83320 GAGE ASSY, FUEL SENDER 9018906125 ** Std Part 84903A SWITCH SUB-ASSY, DOOR UNLOCK 84751 SWITCH, SEAT HEATER 84751B BULB, SEAT HEATER SWITCH 84231D SWITCH, COURTESY LAMP (FOR TIRE CARRIER) 9010906296 ** Std Part |
Scheme 10
|
(9801-0208) ｼ-ﾄ ILLUST NO. 9 OF 9 |
Click part number in the scheme or in the list: 9356054010 ** Std Part84921 KNOB, POWER SEAT SWITCH 84920 SWITCH ASSY, POWER SEAT 84922 SWITCH, FRONT POWER SEAT 9338116014 ** Std Part 89710 COMPUTER ASSY, POSITION CONTROL |
