Radiator & water outlet for Land Cruiser HDJ101K

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 16549 16549-50010 02 01.1998 - 08.2002 COLLAR, RADIATOR SUPPORT, NO.2 1HDFTE..HDJ101 ＮＯ．１  4.41 to 8.49 USD 02 16549 16549-61010 02 01.1998 - 08.2002 COLLAR, RADIATOR SUPPORT, NO.2 1HDFTE..HDJ101 ＮＯ．２  2.60 to 4.14 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9801-0208)1HDFTE ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16470B CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470A HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470R HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 CAP SUB-ASSY, RESERVE TANK 16470 TANK ASSY, RADIATOR RESERVE 16400 RADIATOR ASSY 16401 CAP SUB-ASSY, RADIATOR 16470M GROMMET 9011908539 ** Std Part 16572E CLIP, RADIATOR HOSE, NO.2 16572D HOSE, RADIATOR, NO.2 16711 SHROUD, FAN 16549 COLLAR, RADIATOR SUPPORT, NO.2 16584 INSULATOR, RADIATOR MOUNTING 9415080800 ** Std Part 9162160816 ** Std Part 16585 BRACKET, RADIATOR, NO.3 9151180835 ** Std Part 16582 BRACKET, RADIATOR, NO.1 16571F CLAMP OR CLIP(FOR WATER HOSE) 16571C HOSE, RADIATOR, NO.1 16571D CLIP, RADIATOR HOSE, NO.1 9040610014 ** Std Part 16331 OUTLET, WATER 16341 GASKET, WATER OUTLET 9017908040 ** Std Part 9011608335 ** Std Part 9017906080 ** Std Part 91621B0812 ** Std Part 9046110737 ** Std Part 16346 GASKET, THERMOSTAT 16268 PIPE, WATER BY-PASS, NO.1 16331A THERMOSTAT 9151160820 ** Std Part 16321 INLET, WATER 16284 HOSE, TURBO WATER, NO.1 16284A CLIP(FOR TURBO WATER HOSE NO.1) 16381 BAR, FAN BELT ADJUSTING 16278 PIPE, WATER BY-PASS, NO.2 9151261055 ** Std Part 16361 FAN 9017906070 ** Std Part ** 17-01 16027 PIPE SUB-ASSY, TURBO WATER, NO.1 16285A CLIP(FOR TURBO WATER HOSE NO.2) 16285 HOSE, TURBO WATER, NO.2 16028 PIPE SUB-ASSY, TURBO WATER, NO.2 9011908493 ** Std Part 16385 SLIDER, FAN BELT ADJUSTING 9163160850 ** Std Part ** 87-16

Scheme 2

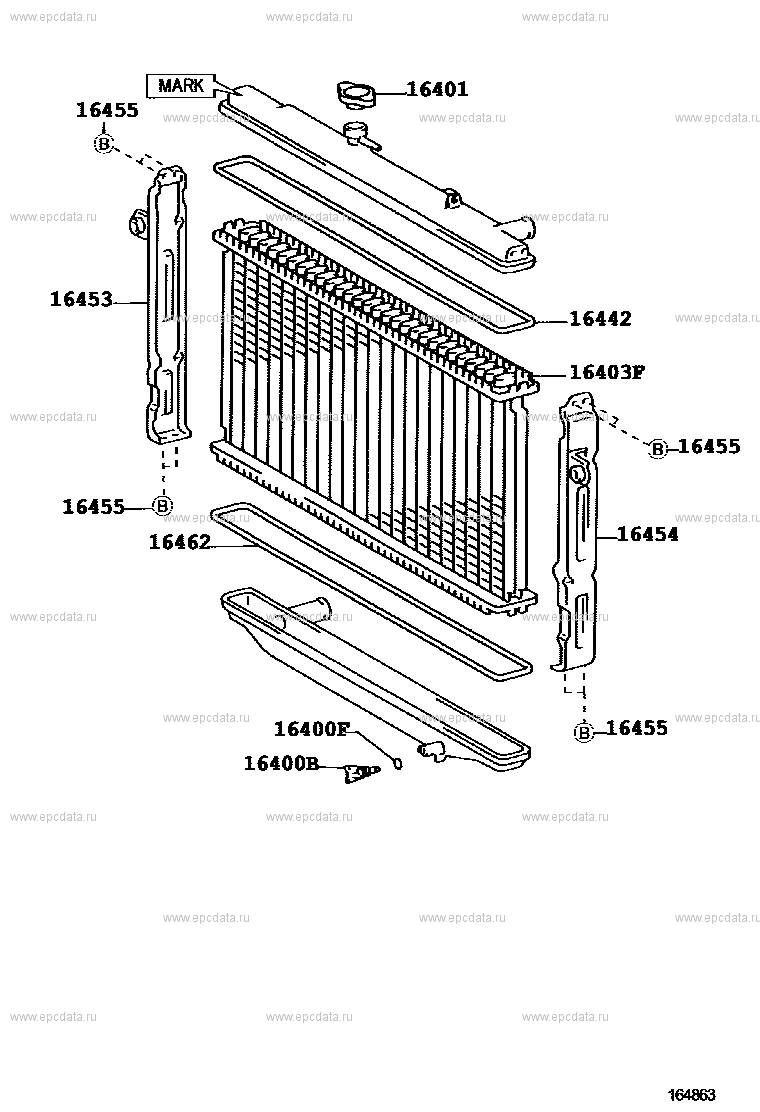

(9801-0208)1HDFTE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16401 CAP SUB-ASSY, RADIATOR 16400B PLUG, RADIATOR DRAIN COCK 16400F PACKING(FOR RADIATOR DRAIN COCK) 16462 RING, O(FOR RADIATOR LOWER TANK) 16454 PLATE, RADIATOR SIDE 16453 PLATE, RADIATOR SIDE 16442 RING, O(FOR RADIATOR UPPER TANK) 16403F CORE SUB-ASSY, RADIATOR 16455 BOLT, RADIATOR SIDE SUPPORT PLATE

Land Cruiser HDJ101K
