Wiring & clamp for Land Cruiser FJ60V
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(8008- ) ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 9166140614 ** Std Part82345 DIODE 82114 WIRE, ENGINE ROOM, NO.4 ** 84-01 82131 WIRE, COWL 82121 WIRE, ENGINE 82165 WIRE, FRAME, NO.2 82112 WIRE, ENGINE ROOM, NO.2 82210E FUSIBLE LINK 82377 WIRE, VOLTAGE CONVERTER 9011908157 ** Std Part 9017905003 ** Std Part 82001 CABLE, BOND, NO.1 9017906158 ** Std Part 82210C FUSIBLE LINK 9011906005 ** Std Part 82046A WIRE SUB-ASSY, BODY GROUND, NO.1 82670 BLOCK ASSY, JUNCTION, NO.1 9011908116 ** Std Part 82172 WIRE, ROOF, NO.2 82141 WIRE, INSTRUMENT PANEL 82241C WIRE, RELAY 82124 WIRE, ENGINE, NO.4 82024 WIRE SUB-ASSY, FOG LAMP FEED 82203 WIRE SUB-ASSY, ALTERNATOR 82132 WIRE, COWL, NO.2 82166 WIRE, CONSOLE BOX 82002 CABLE, BATTERY TO MAGNET SWITCH 82125 WIRE, TRANSMISSION 82282 WIRE, DIFF LOCK INDICATOR 82376 WIRE, MOTOR ANTENNA 82002A CABLE, MAGNET SWITCH TO WINCH 82134 WIRE, COWL, NO.4 82823 CAP, TERMINAL, NO.1 82002B CABLE, WINCH TO GROUND 82219 WIRE, THERMO SENSOR |
Scheme 2
|

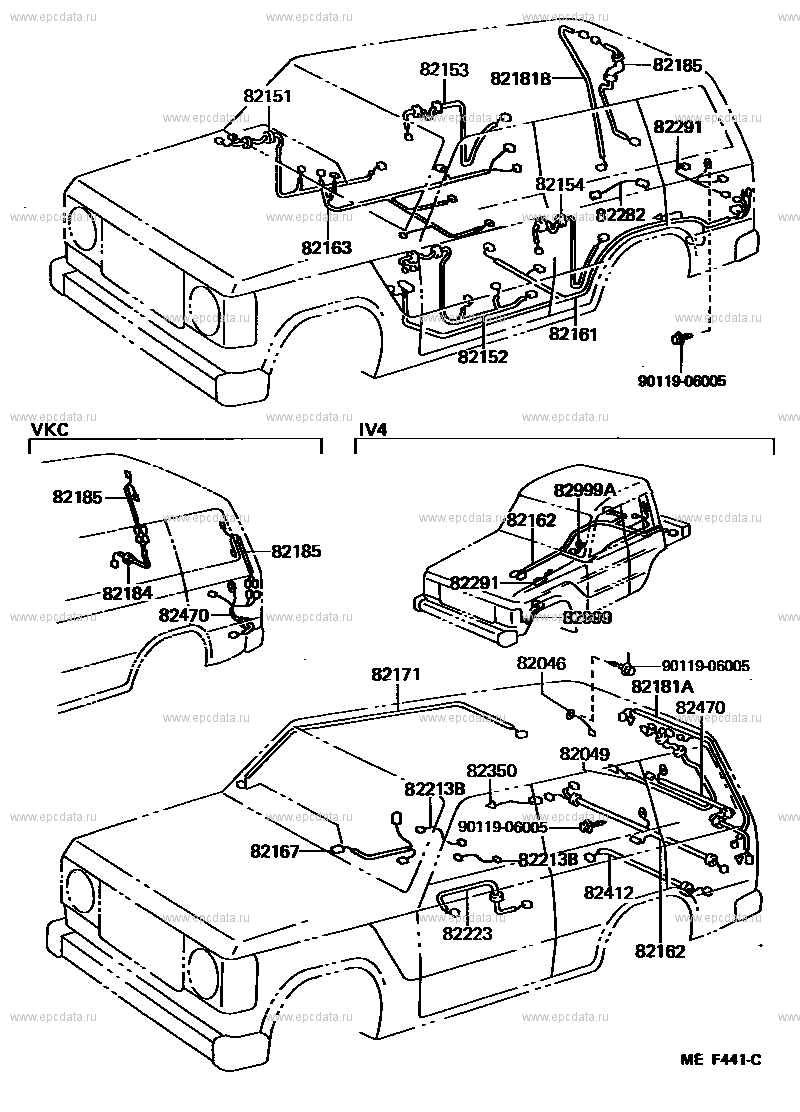

(8008- ) ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 82185 WIRE, BACK DOOR, NO.282153 WIRE, REAR DOOR, NO.1 82181B WIRE, LUGGAGE ROOM, NO.3 82151 WIRE, FRONT DOOR, RH 82291 WIRING, TO SOLENOID 82154 WIRE, REAR DOOR, NO.2 82282 WIRE, DIFF LOCK INDICATOR 82163 WIRE, FLOOR, NO.3 82161 WIRE, FLOOR 82152 WIRE, FRONT DOOR, LH 9011906005 ** Std Part 82999A WIRE SUB-ASSY, OIL TEMPERATURE GAGE 82162 WIRE, FLOOR, NO.2 82184 WIRE, BACK DOOR, NO.1 82470 WIRE ASSY, LICENSE LAMP FEED 82999 WIRE SUB-ASSY, OIL TEMPERATURE SENDER 82046 WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH 82171 WIRE, ROOF, NO.1 82181A WIRE, LUGGAGE ROOM, NO.2 82049 WIRING SUB-ASSY, REAR WIPER 82350 WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) 82213B WIRE, HEATER 82167 WIRE, SEAT, NO.1 82412 WIRE, FUEL GAGE 82223 WIRE, SWITCH |
Scheme 3
Scheme 4
