(6903-7501)F
|

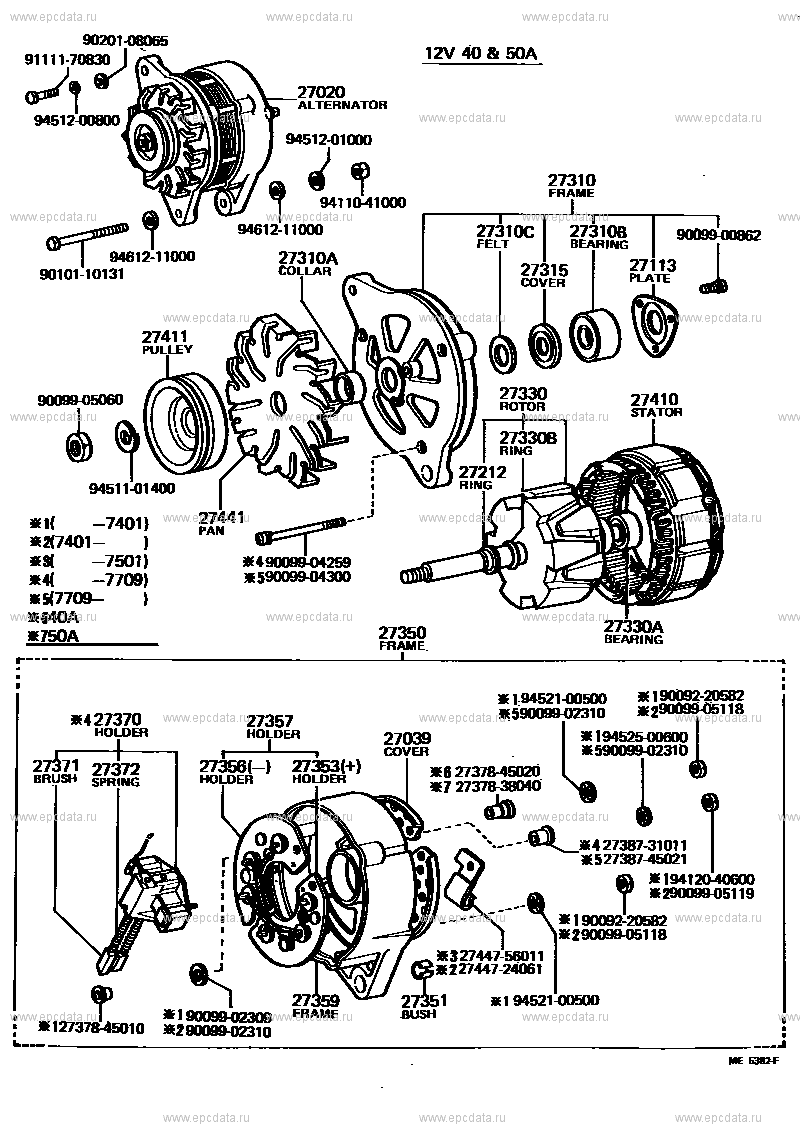

Click part number in the scheme or in the list:
9020108065 ** Std Part
27020 ALTERNATOR ASSY
9111170830 ** Std Part
27310 FRAME ASSY, DRIVE END, ALTERNATOR
9411041000 ** Std Part
9451200800 ** Std Part
9451201000 ** Std Part
27310C FELT(FOR ALTERNATOR DRIVE END FRAME)
9311914010 ** Std Part
27310B BEARING(FOR ALTERNATOR DRIVE END FRAME)
27113 PLATE, BEARING RETAINER, ALTERNATOR
9010110131 ** Std Part
9451100400 ** Std Part
27316 PACKING, RETAINER PLATE, ALTERNATOR
27315 COVER, ALTERNATOR FELT, INNER NO.1
9461211000 ** Std Part
27441 FAN, ALTERNATOR
27411A KEY(FOR ALTERNATOR PULLEY)
27442 BASE, ALTERNATOR FAN
9009905003 ** Std Part
9009901012 ** Std Part
27212 RING, SPACE(FOR ALTERNATOR ROTOR)
27330 ROTOR ASSY, ALTERNATOR
27310A COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27411 PULLEY, ALTERNATOR
27350 FRAME ASSY, RECTIFIER END
27036 TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27410A HOUSING, ALTERNATOR POLE CONNECTOR
27371 BRUSH, ALTERNATOR
2738440010 ** Std Part
27372 SPRING, ALTERNATOR BRUSH
27410 STATOR ASSY, ALTERNATOR
27373 HOLDER, ALTERNATOR BRUSH, A
9321915020 ** Std Part
9321914006 ** Std Part
27376 HOLDER, ALTERNATOR BRUSH, B
2738340020 ** Std Part
9451100500 ** Std Part
27381 SUPPORT, TERMINAL, ALTERNATOR
9461110500 ** Std Part
9009220482 ** Std Part
9412040600 ** Std Part
9009606005 ** Std Part
9461110600 ** Std Part
9321914008 ** Std Part
27352 COVER, FRAME BRUSH
9451100600 ** Std Part
27443 COVER, ALTERNATOR BEARING
9009904829 ** Std Part
9009902102 ** Std Part
27444 PACKING, ALTERNATOR BEARING COVER
9009902129 ** Std Part
9311914008 ** Std Part
9009900806 ** Std Part
27330A BEARING(FOR ALTERNATOR ROTOR)
9009902103 ** Std Part
9009902120 ** Std Part
9009904824 ** Std Part
9009605004 ** Std Part
27359 FRAME, ALTERNATOR RECTIFIER END
27351 BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27353 HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR |
