Seat & seat track for Land Cruiser FJ40
|
Here are parts you've selected:
| ||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

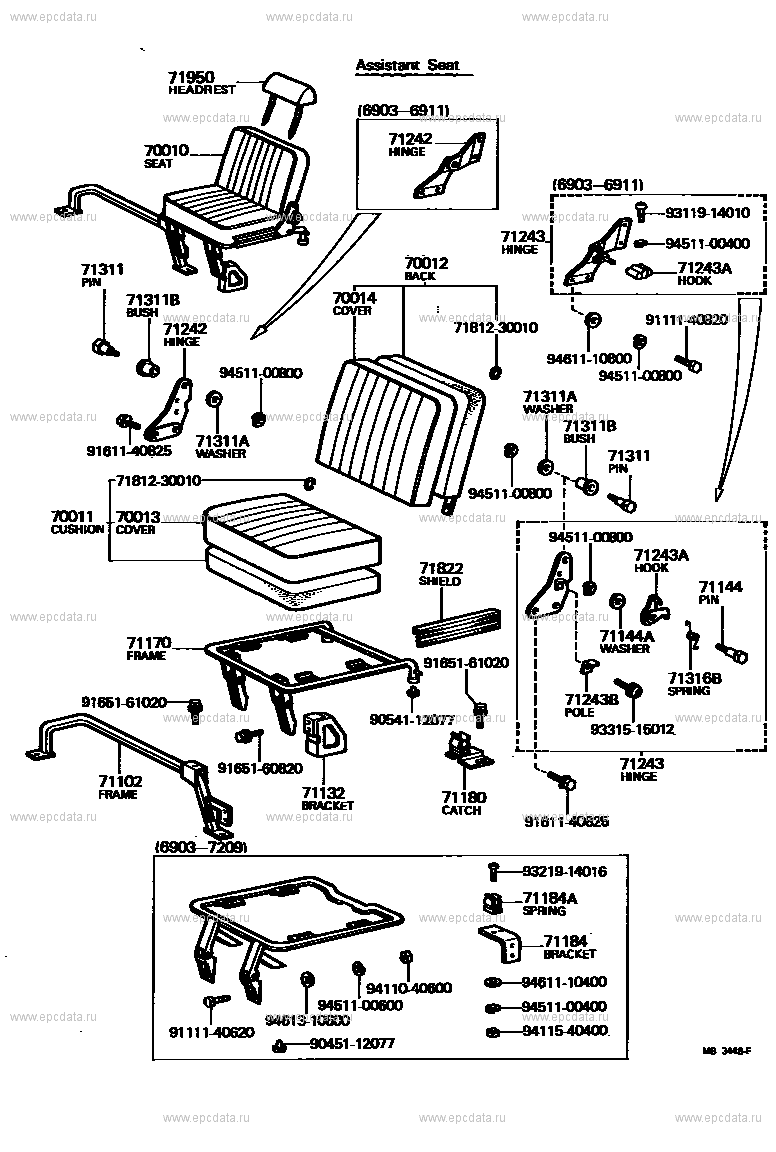

Scheme 1
|
(6903-7902)V ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 71950 HEADREST ASSY, FRONT SEAT70010 SEAT ASSY, NO.1 9311914010 ** Std Part 9165160820 ** Std Part 9451100400 ** Std Part 71307 HINGE SUB-ASSY, DRIVER SEAT, RH 71307A HOOK, DRIVER SEAT HINGE, RH 71311B BUSH (FOR FRONT SEAT HINGE PIN) 71311A WASHER, PLATE (FOR FRONT SEAT HINGE PIN) 9451100800 ** Std Part 71308 HINGE SUB-ASSY, DRIVER SEAT, LH 71311 PIN, FRONT SEAT HINGE 9461110800 ** Std Part 9111140820 ** Std Part 70012 BACK ASSY, NO.1 SEAT 71144 PIN, SEAT HINGE HOOK 70014 COVER ASSY, NO.1 SEAT BACK 71316A SPRING, TORSION, NO.1 71307B POLE, DRIVER SEAT HINGE HOOK, RH 71144A WASHER, PLATE (FOR SEAT HINGE HOOK PIN) 9331515012 ** Std Part 9161140825 ** Std Part 71821 SHIELD, FRONT SEAT SIDE, RH 70013 COVER ASSY, NO.1 SEAT CUSHION 9165161020 ** Std Part 70011 CUSHION ASSY, NO.1 SEAT 71102 FRAME SUB-ASSY, FRONT SEAT SET INNER |
Scheme 2
Scheme 3
