Fuel tank & tube for Land Cruiser FJ40

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 77201 77201-60060 01 09.1972 - 08.1976 PIPE SUB-ASSY, FUEL TANK INLET BJ4#,FJ4# W/STRAINER 0.00 USD           ** Rev.Ref.No ** ( From- , To-0186 )         To 2F-111723   02 77201 77201-60050 01 09.1972 - 02.1979 PIPE SUB-ASSY, FUEL TANK INLET BJ4#,FJ4# 0.00 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

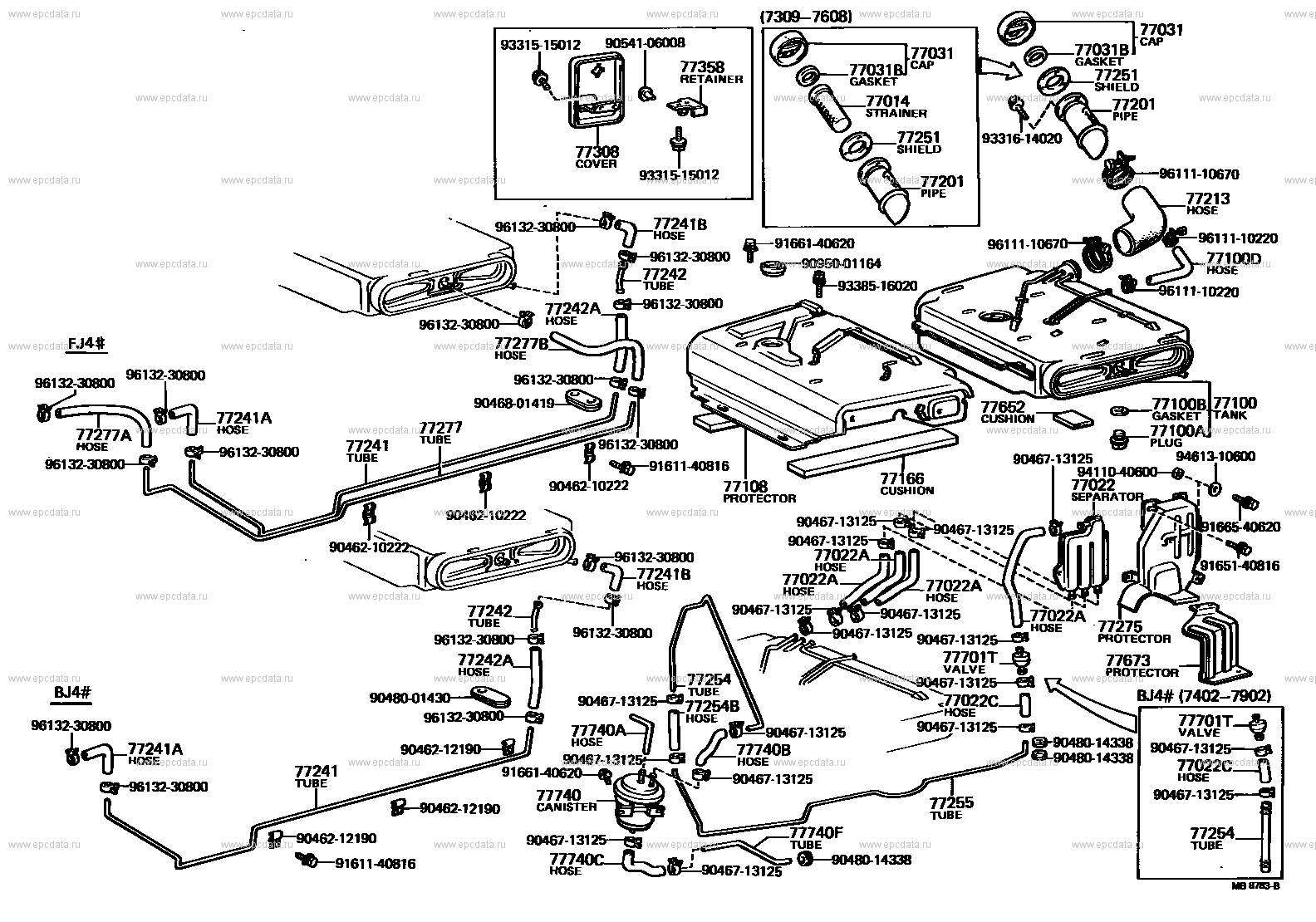

Scheme 1

(7309-7902)BJ4#,FJ4# Open full size scheme Go to top

Click part number in the scheme or in the list: 77031 CAP ASSY, FUEL TANK 9054106008 ** Std Part 9331515012 ** Std Part 77031B GASKET (FOR FUEL TANK CAP) 77358 RETAINER, FUEL INLET CUSHION 77251 SHIELD, FUEL TANK, INLET, NO.1 77014 STRAINER SUB-ASSY, FUEL 77201 PIPE SUB-ASSY, FUEL TANK INLET 9331614020 ** Std Part 77308 COVER SUB-ASSY, FUEL INLET BOX 9611110670 ** Std Part 77213 HOSE, FUEL TANK SUB INLET 77241B HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 9613230800 ** Std Part 9611110220 ** Std Part 9166140620 ** Std Part 77100D HOSE, FUEL, NO.1(FOR FUEL TANK) 9095001164 ** Std Part 77242 TUBE, FUEL MAIN, NO.2 9338516020 ** Std Part 77242A HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77277B HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77100 TANK ASSY, FUEL 9046801419 ** Std Part 77100B GASKET(FOR FUEL TANK) 77652 CUSHION, FUEL TANK, NO.1 77241A HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77277 TUBE, FUEL RETURN, NO.1 77100A PLUG(FOR FUEL TANK) 77277A HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77241 TUBE, FUEL MAIN, NO.1 9461310600 ** Std Part 9046713125 ** Std Part 9161140816 ** Std Part 9411040600 ** Std Part 77166 CUSHION, FUEL TANK PROTECTOR 77022 SEPARATOR SUB-ASSY, FUEL EVAPORATIVE 9046210222 ** Std Part 77108 PROTECTOR SUB-ASSY, FUEL TANK 9166540620 ** Std Part 77022A HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 9165140816 ** Std Part 77275 PROTECTOR, FUEL EVAPORATIVE SEPARATOR 77701T VALVE, CHECK (FOR MAIN FUEL TANK) 77673 PROTECTOR, FUEL TANK BREATHER TUBE, REAR 77254 TUBE, FUEL EMISSION, NO.1 9048001430 ** Std Part 77022C HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77254B HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77740A HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 9048014338 ** Std Part 9046212190 ** Std Part 77740B HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77740 CANISTER ASSY, CHARCOAL 77255 TUBE, FUEL EMISSION, NO.2 77740F TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740C HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

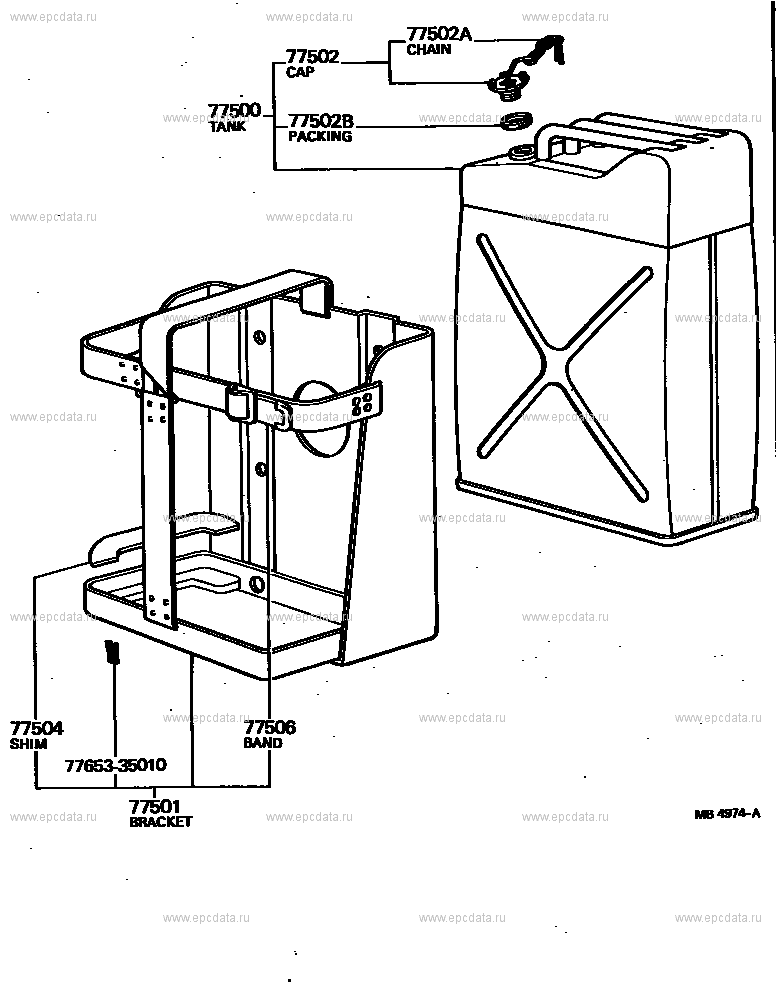

Scheme 2

(6903-7501)BJ4#,FJ4# ; (7501-7608) Open full size scheme Go to top

Click part number in the scheme or in the list: 77502A CHAIN SUB-ASSY, AUXILIARY FUEL TANK CAP 77502 CAP SUB-ASSY, AUXILIARY FUEL TANK 77500 TANK ASSY, AUXILIARY FUEL 77502B PACKING, CAP(FOR AUXILIARY FUEL TANK CAP) 77506 BAND SUB-ASSY, AUXILIARY FUEL TANK 77504 SHIM, AUXILIARY FUEL TANK BRACKET 7765335010 ** Std Part 77501 BRACKET ASSY, AUXILIARY FUEL TANK

Land Cruiser FJ40
