Fuel injection system for Kluger V ACU25W
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|

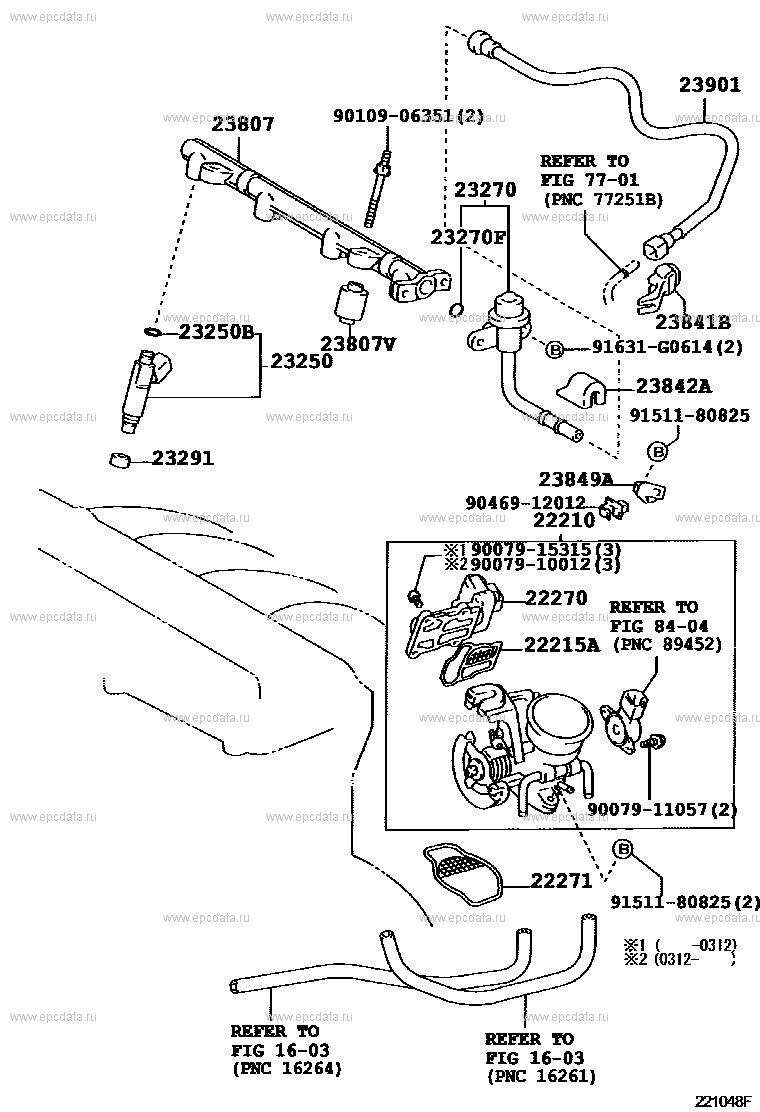

(0011- )2AZFE ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 23807 PIPE SUB-ASSY, FUEL DELIVERY23250B RING, O(FOR FUEL INJECTOR) 23291 INSULATOR, INJECTOR VIBRATION 23250 INJECTOR ASSY, FUEL 23807V SPACER, NO.1(FOR DELIVERY PIPE) 22210 BODY ASSY, THROTTLE 23849A SUPPORT, FUEL PIPE 9046912012 ** Std Part 23841B CLAMP, FUEL PIPE, NO.1(FOR EFI) 23842A CLAMP, FUEL PIPE, NO.2(FOR EFI) 9010906351 ** Std Part 9151180825 ** Std Part 22270 VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22215A GASKET, IDLE SPEED CONTROL VALVE 9007911057 ** Std Part 9007910012 ** Std Part 22271 GASKET, THROTTLE BODY 23901 TUBE SUB-ASSY, FUEL 91631G0614 ** Std Part ** 84-04 ** 77-01 9007915315 ** Std Part 23270 DAMPER ASSY, FUEL PRESSURE PULSATION 23270F RING, O(FOR PULSATION DAMPER) ** 16-03 |
Scheme 2
|
(0011-0308)2AZFE ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: ** 77-0123220P PUMP ASSY, FUEL 23300Z FILTER, FUEL(FOR FUEL TANK) 23217A FILTER, FUEL PUMP 23229 CLIP(FOR FUEL PUMP FILTER) 23249 RUBBER, CUSHION(FOR FUEL PUMP) 23020A REGULATOR ASSY, FUEL PRESSURE W/JET PUMP |
Scheme 3
|
(0308- )2AZFE ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: ** 77-01** 84-01 23300Z FILTER, FUEL(FOR FUEL TANK) 9030108019 ** Std Part 23225 SPACER, FUEL PUMP 23220P PUMP ASSY, FUEL 23280 REGULATOR ASSY, FUEL PRESSURE 23280E RING, O(FOR FUEL PRESSURE REGULATOR) 23217A FILTER, FUEL PUMP 23229 CLIP(FOR FUEL PUMP FILTER) |
