Switch & relay & computer for ist NCP65
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(0204- ) ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ILLUST NO. 1 OF 6 |
Click part number in the scheme or in the list: 84540 SWITCH ASSY, NEUTRAL START83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 89615 SENSOR, KNOCK CONTROL 89465 SENSOR, OXYGEN 9165140620 ** Std Part 8271552630 ** Std Part 9155381014 ** Std Part 8271552840 ** Std Part 8271552830 ** Std Part 827155C020 ** Std Part 89465A SENSOR, OXYGEN NO.2 |
Scheme 2
|
(0204- ) ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 6 |
Click part number in the scheme or in the list: 86530 RELAY ASSY, HORN82663 COVER, RELAY BLOCK, LOWER 82600F FUSE, FUSE BLOCK 82210J FUSIBLE LINK 28300 RELAY ASSY, STARTER 85927 RELAY, COOLING FAN 85927A RELAY, COOLING FAN, NO.2 85926 RELAY, HEADLAMP DIMMER 85916U RELAY, HEADLAMP, NO.2 9030111021 ** Std Part 89448A SENSOR, POWER STEERING OIL PRESSURE 85928B RESISTOR, COOLING FAN 91631J0612 ** Std Part 82741 BLOCK, ENGINE ROOM RELAY 9163160622 ** Std Part 82662A COVER, RELAY BLOCK, UPPER, NO.1 9017906292 ** Std Part 82616 PULLER, FUSE 82620A BLOCK ASSY, FUSIBLE LINK 82618 FUSE, FUSE BLOCK 8267852010 ** Std Part 8267852020 ** Std Part 82621A COVER, FUSIBLE LINK 82662B COVER, RELAY BLOCK, UPPER, NO.2 82663A COVER, RELAY BLOCK, LOWER, NO.2 82742 BLOCK, ENGINE ROOM RELAY, NO.2 ** 82-02 ** 84-14 ** 84-04 |
Scheme 3
|

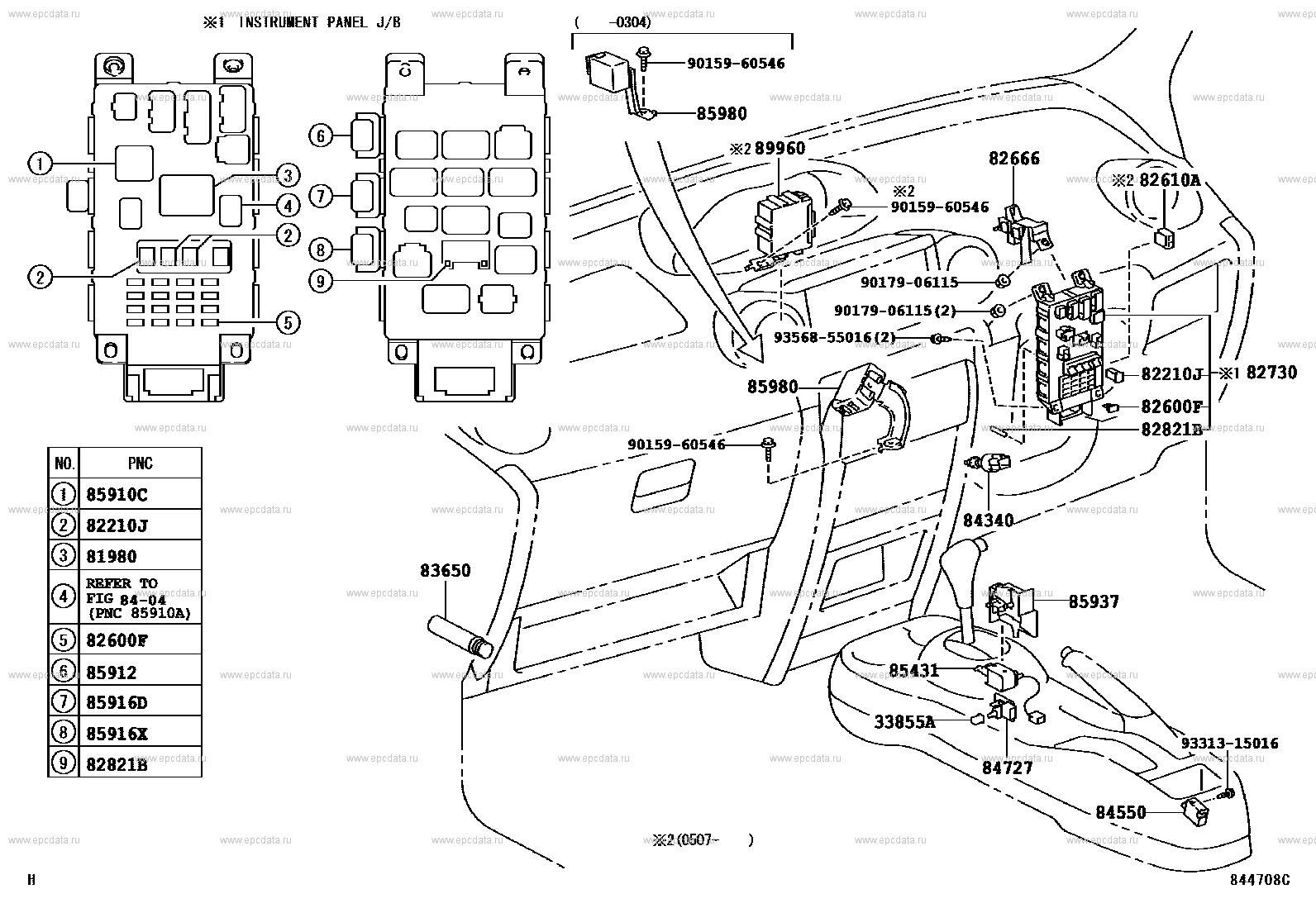

(0204- ) ｶｳﾙ ILLUST NO. 3 OF 6 |
Click part number in the scheme or in the list: 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR)82666 HOLDER, CONNECTOR 89960 COMPUTER ASSY, HEADLAMP LEVELING 82210J FUSIBLE LINK 81980 FLASHER ASSY, TURN SIGNAL ** 84-04 82600F FUSE, FUSE BLOCK 85912 RELAY, DEFOGGER 85916D RELAY, FOG LAMP 85916X RELAY, KEY ILLUMINATION 82821B COVER, CONNECTOR 9015960546 ** Std Part 85980 RELAY ASSY, DOOR CONTROL 9017906115 ** Std Part 9356855016 ** Std Part 83650 FUSEE 85431 SOLENOID, SHIFT LOCK 33855A COVER, SHIFT LOCK UNIT 84727 SWITCH, SHIFT LOCK CONTROL 85937 PROTECTOR, SHIFT LOCK CONTROL 84550 SWITCH ASSY, PARKING BRAKE 9331315016 ** Std Part 84340 SWITCH ASSY, STOP LAMP 82730 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82610A BLOCK ASSY, FUSE |
Scheme 4
|

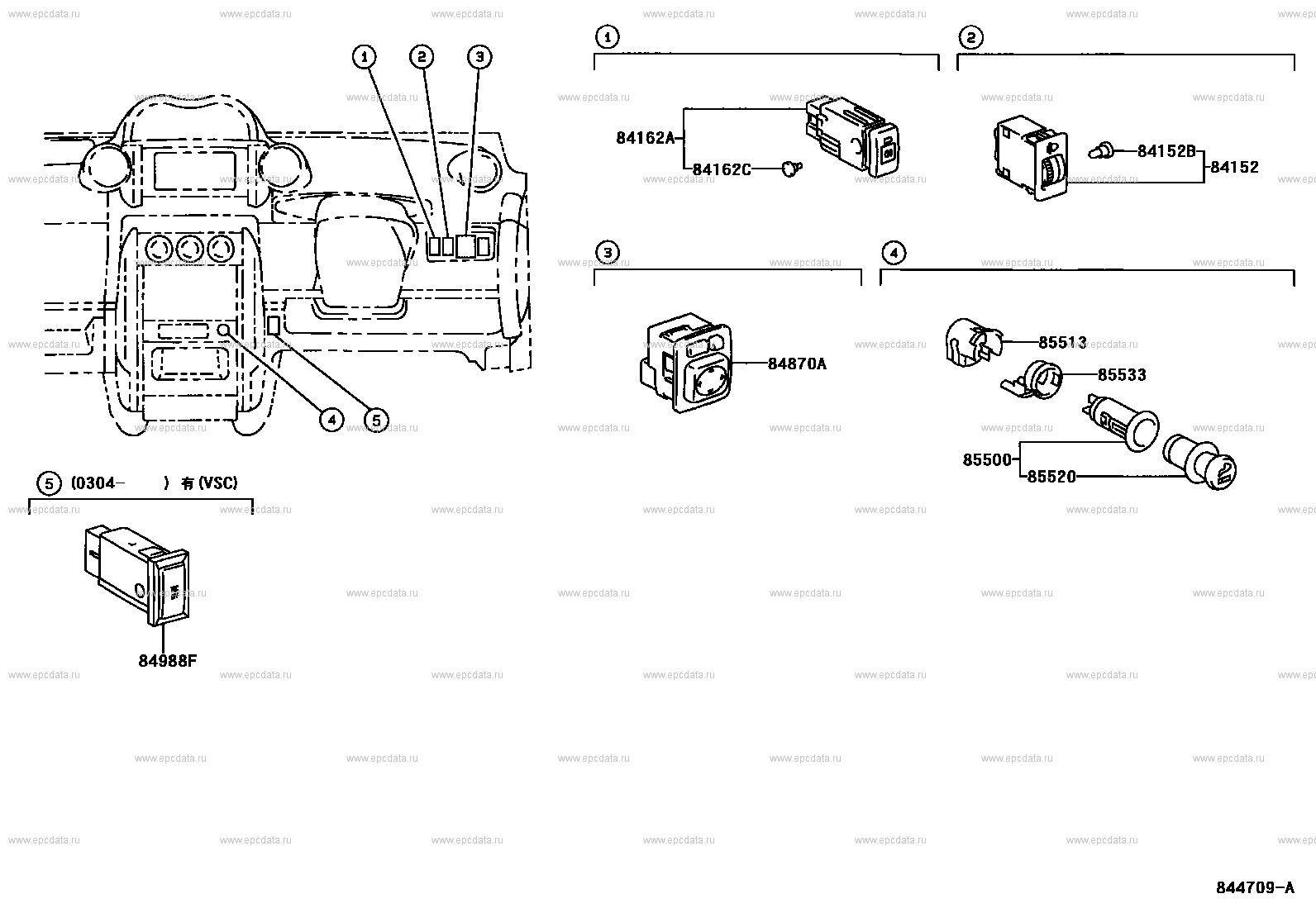

(0204- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 6 |
Click part number in the scheme or in the list: 84162A SWITCH, REAR FOG LAMP84152B BULB (FOR HEADLAMP LEVELING SWITCH) 84152 SWITCH, HEADLAMP LEVELING 84162C BULB (FOR REAR FOG LAMP SWITCH) 85513 COVER, CIGARETTE LIGHTER 84870A SWITCH ASSY, OUTER MIRROR 85533 LENS, CIGARETTE LIGHTER INDICATOR 85500 LIGHTER ASSY, CIGARETTE 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 84988F SWITCH, TRACTION CONTROL |
Scheme 5
|

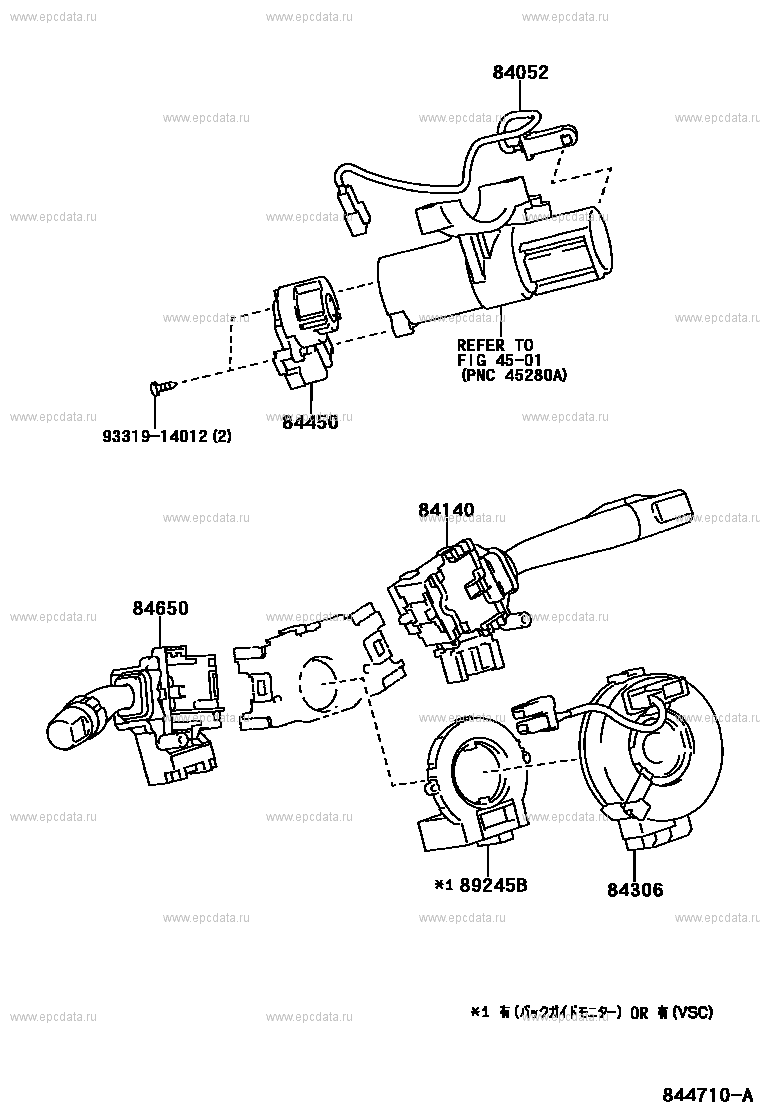

(0204- ) ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ ILLUST NO. 5 OF 6 |
Click part number in the scheme or in the list: 84052 SWITCH ASSY, UN-LOCK WARNING** 45-01 84450 SWITCH ASSY, IGNITION OR STARTER 9331914012 ** Std Part 84140 SWITCH ASSY, HEADLAMP DIMMER 84650 SWITCH ASSY, WINDSHIELD WIPER 89245B SENSOR, STEERING 84306 CABLE SUB-ASSY, SPIRAL |
Scheme 6
|

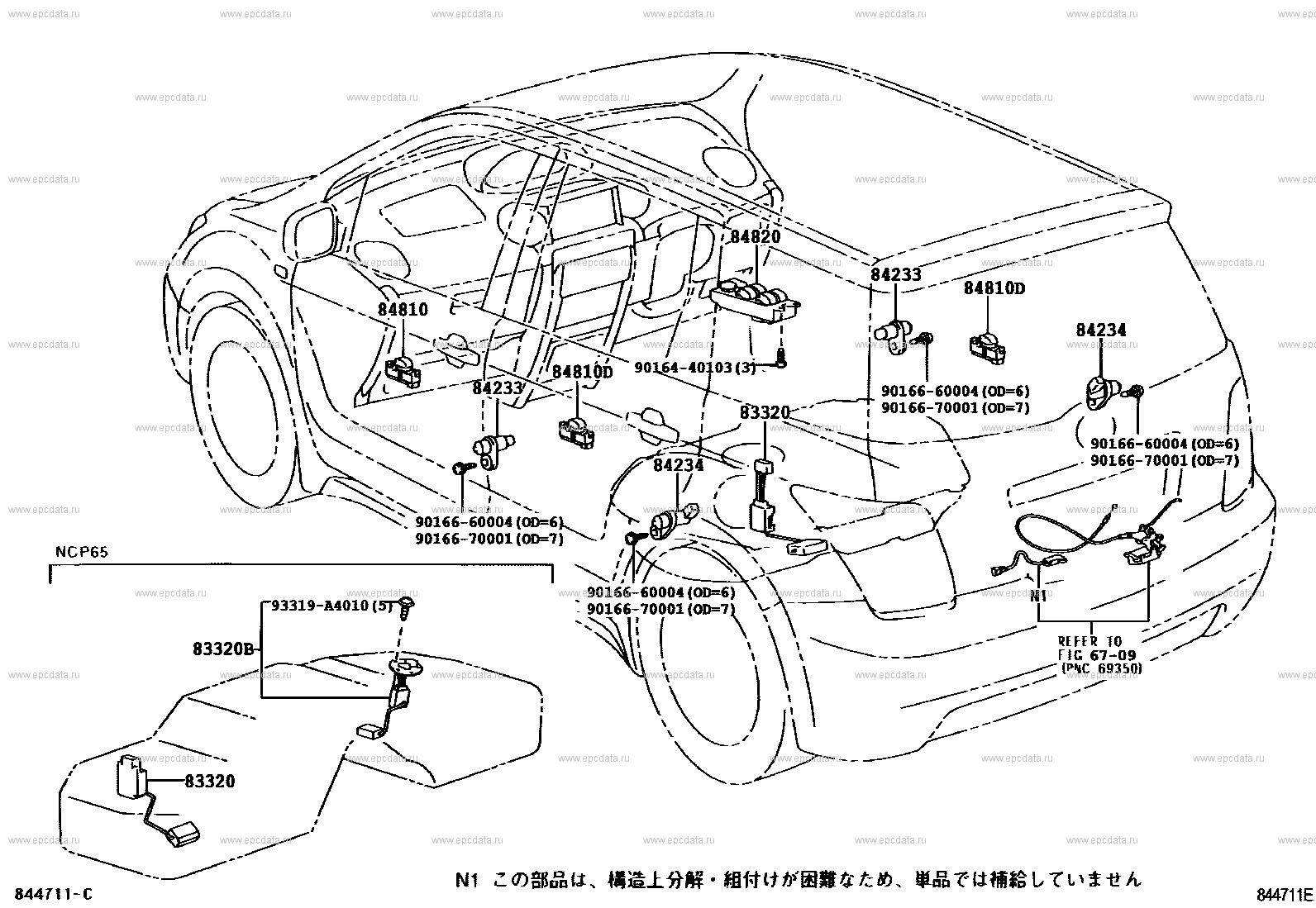

(0204- ) ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ ILLUST NO. 6 OF 6 |
Click part number in the scheme or in the list: 84810 SWITCH ASSY, POWER WINDOW REGULATOR84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84810D SWITCH ASSY, POWER WINDOW REGULATOR, REAR 9016670001 ** Std Part 93319A4010 ** Std Part 83320 GAGE ASSY, FUEL SENDER 83320B GAGE ASSY, FUEL SENDER, NO.2 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 9016440103 ** Std Part 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR ** 67-09 9016660004 ** Std Part |
