ToyotaistNCP115NCP115-AHXEKTransmission and chassisFront drive shaft

Front drive shaft for ist NCP115




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 04438G 04437-52390 01 07.2007 - 03.2010 BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH NCP115 75.91 USD
  (SUBS) 04437-12410 01    71.01
to 75.91 USD
02 04438G 04437-12410 01 03.2010 - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH NCP115  71.01
to 75.91 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0707- )NCP115
RH

Click part number in the scheme or in the list:

43030 JOINT ASSY, FRONT DRIVE INBOARD, RH
43411E RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43410N RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43410C BEARING (FOR FRONT DRIVE SHAFT)
41336D COVER, FRONT DRIVE SHAFT DUST, RH
43447C CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43410 SHAFT ASSY, FRONT DRIVE, RH
43474F CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
43474D DAMPER, FRONT DRIVE SHAFT, RH
43448E CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448C CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
04438G BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438F BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
43460 SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
9011910461 ** Std Part
9052175002 ** Std Part
9012610041 ** Std Part
43457A BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457 BRACKET, DRIVE SHAFT BEARING
9017810032 ** Std Part
43410M OIL SEAL, FRONT DRIVE SHAFT, RH

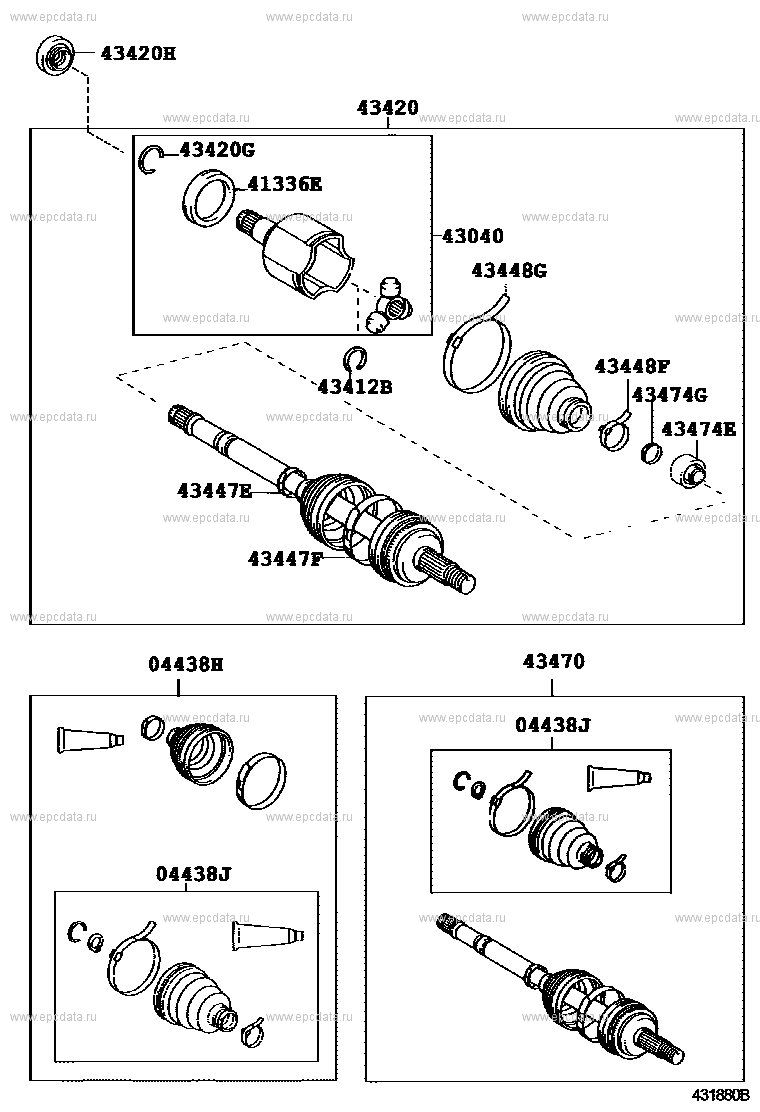

Scheme 2

(0707- )NCP115
LH

Click part number in the scheme or in the list:

43040 JOINT ASSY, FRONT DRIVE INBOARD, LH
41336E COVER, FRONT DRIVE SHAFT DUST, LH
43412B RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43447F CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447E CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448F CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43420 SHAFT ASSY, FRONT DRIVE, LH
43420G RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
04438H BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438J BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
43470 SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43474G CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
43474E DAMPER, FRONT DRIVE SHAFT, LH
43420H OIL SEAL, FRONT DRIVE SHAFT, LH
