Radiator & water outlet for Isis ZNM10G
Click on the part subgroup below to get genuine part numbers.

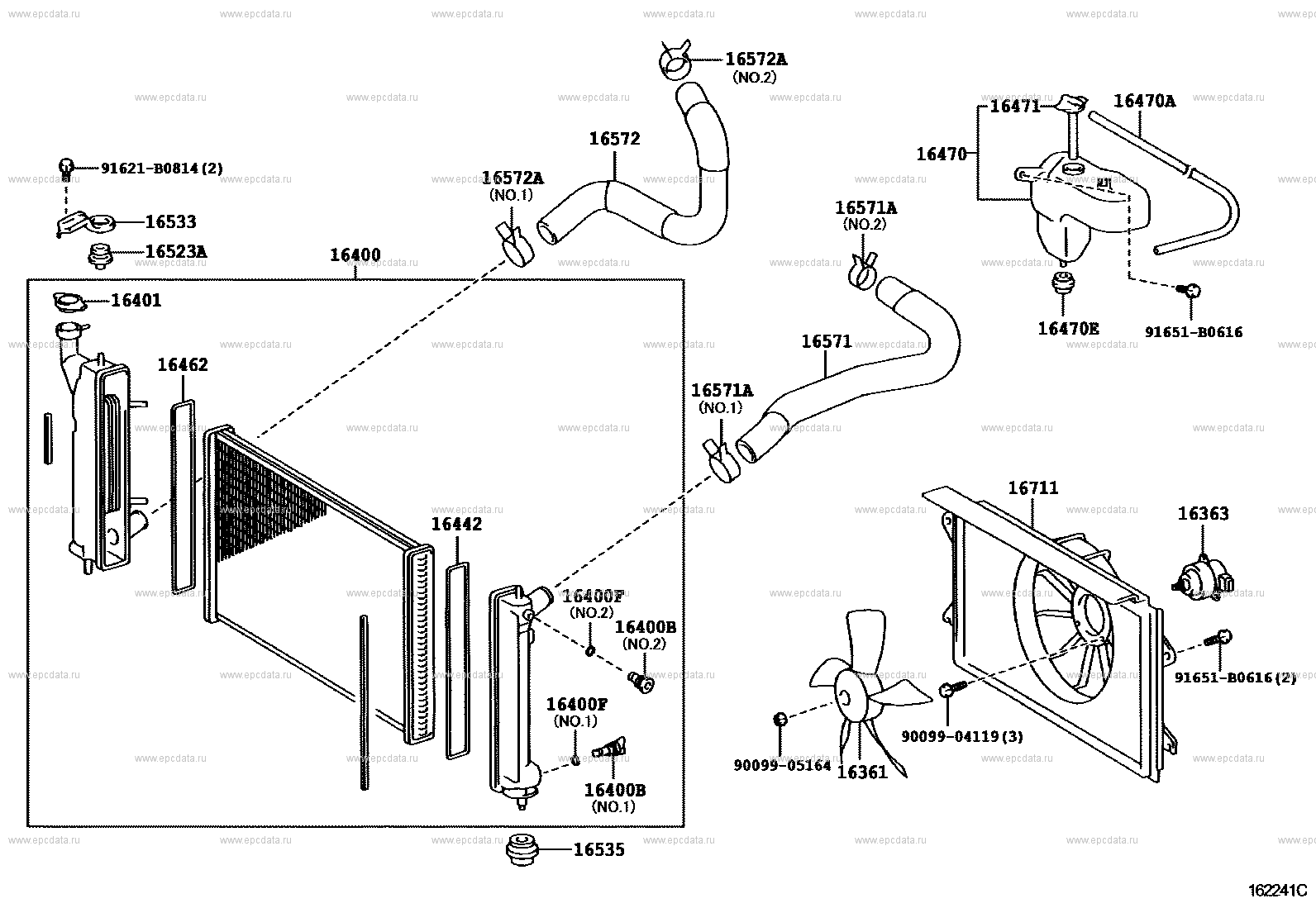

Scheme 1
|
(0409- )1ZZFE ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 16400 RADIATOR ASSY16401 CAP SUB-ASSY, RADIATOR 16533 SUPPORT, RADIATOR, UPPER 16523A CUSHION, RADIATOR SUPPORT 16572 HOSE, RADIATOR, OUTLET 16572A CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 91621B0814 ** Std Part 16571 HOSE, RADIATOR, INLET 16571A CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16470 TANK ASSY, RADIATOR RESERVE 16471 CAP SUB-ASSY, RESERVE TANK 16470A HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470E GROMMET, RADIATOR RESERVE TANK HOSE 16363 MOTOR, COOLING FAN 16711 SHROUD, FAN 91651B0616 ** Std Part 9009904119 ** Std Part 16361 FAN 9009905164 ** Std Part 16535 SUPPORT, RADIATOR, LOWER 16442 RING, O(FOR RADIATOR UPPER TANK) 16400B PLUG, RADIATOR DRAIN COCK 16400F PACKING(FOR RADIATOR DRAIN COCK) 16462 RING, O(FOR RADIATOR LOWER TANK) |

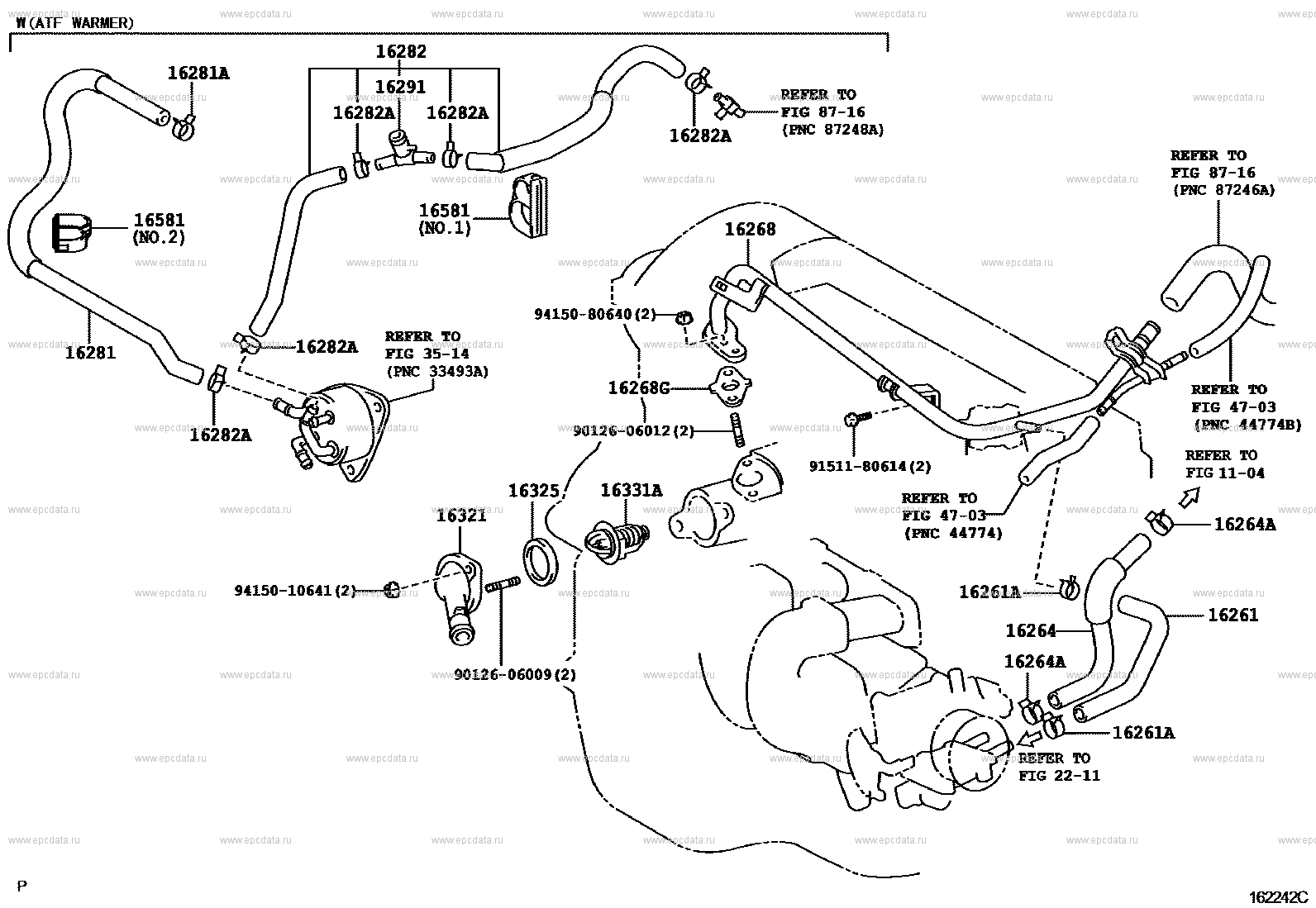

Scheme 2
|
(0409- )1ZZFE ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 16281A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)16581 CLAMP, HOSE(FOR WATER HOSE) 16281 HOSE, WATER BY-PASS, NO.4 16282A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282 HOSE, WATER BY-PASS, NO.5 16291 JOINT, WATER HOSE 9415010641 ** Std Part 16321 INLET, WATER 16325 GASKET, WATER INLET HOUSING, NO.1 16331A THERMOSTAT 9012606012 ** Std Part 16268G GASKET(FOR WATER BY-PASS PIPE) 9415080640 ** Std Part 9012606009 ** Std Part 9151180614 ** Std Part 16261A CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 HOSE, WATER BY-PASS, NO.2 16264A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) ** 22-11 16261 HOSE, WATER BY-PASS ** 11-04 ** 87-16 16268 PIPE, WATER BY-PASS, NO.1 ** 47-03 ** 35-14 |
