Front seat & seat track for Ipsum ACM26W
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

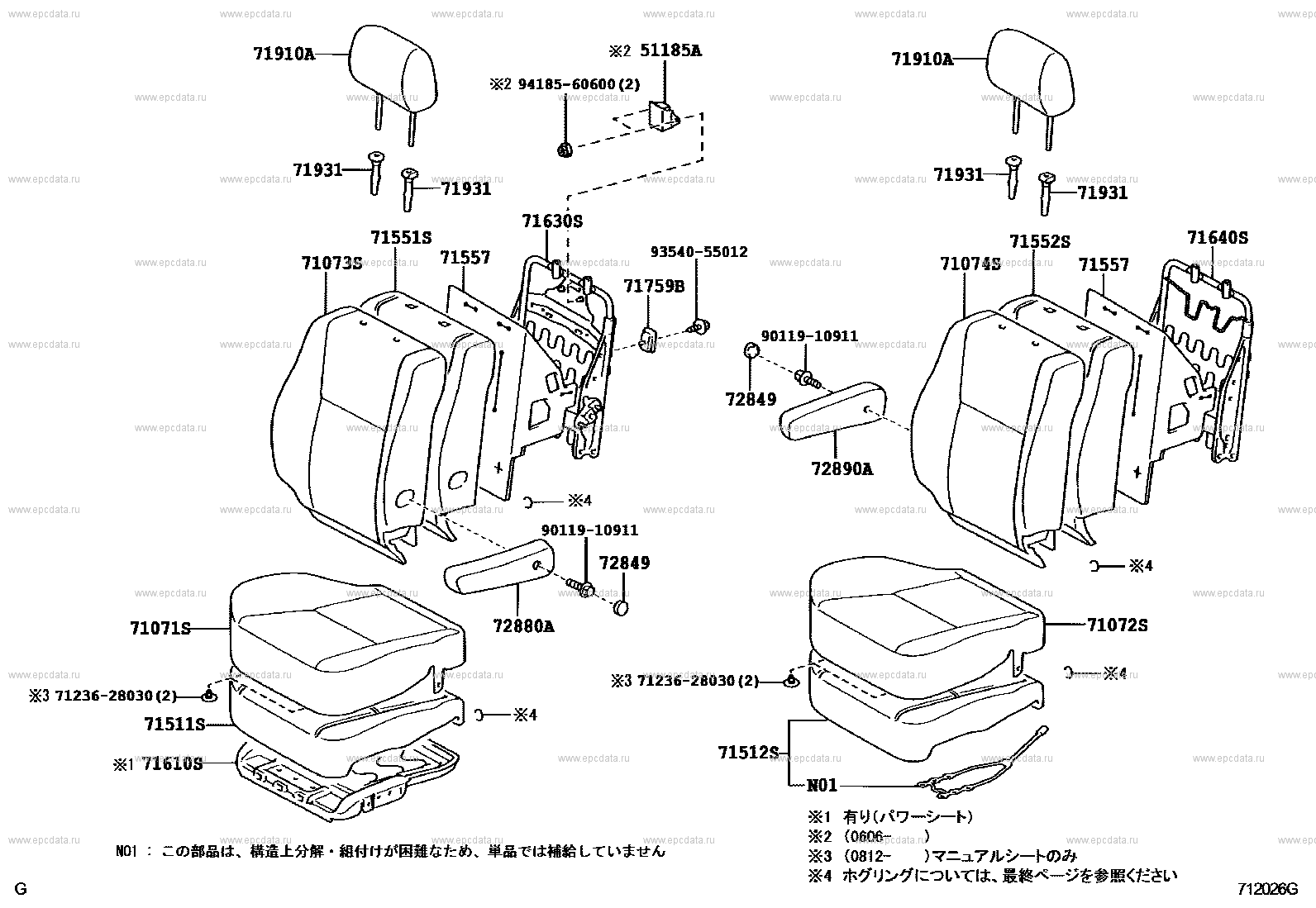

Scheme 1
Scheme 2
|
(0105- ) ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸ) ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 71910A HEADREST ASSY, FRONT SEAT71931 SUPPORT, FRONT SEAT HEADREST 71430S BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71557 CLOTH, FRONT SEAT BACK UNDER 9354055012 ** Std Part 71759B HOOK, FRONT SEAT BACK 9011910911 ** Std Part 71074S COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71440S BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71072S COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71512S PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 72849 CAP, SEAT ARMREST, NO.2 72880A ARMREST ASSY, FRONT SEAT, INNER RH 71071S COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71511S PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71610S SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 72890A ARMREST ASSY, FRONT SEAT, INNER LH 51185A WEIGHT, FRAME, FR NO.1 9418560600 ** Std Part 7123628030 ** Std Part |
Scheme 3
Scheme 4
|
(0105- ) ﾊﾞ-ﾁｶﾙｼｰﾄ ｱｼﾞﾔｽﾀ ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 72457 KNOB, VERTICAL SEAT ADJUSTER9052001006 ** Std Part 72525A HANDLE, RECLINING ADJUSTER RELEASE, RH 71811C COVER, RECLINING ADJUSTER, RH 71819B LABEL, SIDE AIR BAG NAME 9016740044 ** Std Part 72137J COVER, FRONT SEAT TRACK, RH REAR OUTER 71011S FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71875D COVER, RECLINING ADJUSTER OUTSIDE, RH 72127A COVER, SEAT TRACK BRACKET, INNER FRONT RH 71875A COVER, RECLINING ADJUSTER INSIDE, RH 9151581025 ** Std Part 71812C COVER, RECLINING ADJUSTER, LH 72137K COVER, FRONT SEAT TRACK, RH REAR INNER 72123A COVER, SEAT TRACK BRACKET, OUTER FRONT RH 71537A PROTECTOR, FRONT SEAT CUSHION 72201A HANDLE SUB-ASSY, SEAT TRACK RH 72265 COVER, SEAT TRACK UPPER RAIL, RH 9011910409 ** Std Part |
Scheme 5
|
(0105- ) ﾊﾟﾜ-ｼ-ﾄ ｱｼﾞﾔｽﾀ ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 9016740041 ** Std Part9015940159 ** Std Part 9016740044 ** Std Part 71873 SHIELD, FRONT SEAT CUSHION, LOWER RH 72123A COVER, SEAT TRACK BRACKET, OUTER FRONT RH 71873B SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 71537A PROTECTOR, FRONT SEAT CUSHION 72011C ADJUSTER SUB-ASSY, FRONT SEAT, RH 73178H CAP, SEAT BELT ANCHOR COVER, RH 72127A COVER, SEAT TRACK BRACKET, INNER FRONT RH 71875A COVER, RECLINING ADJUSTER INSIDE, RH 71875D COVER, RECLINING ADJUSTER OUTSIDE, RH 71811C COVER, RECLINING ADJUSTER, RH ** 84-01 9151581025 ** Std Part 71812C COVER, RECLINING ADJUSTER, LH 91511B0816 ** Std Part 9011910409 ** Std Part |

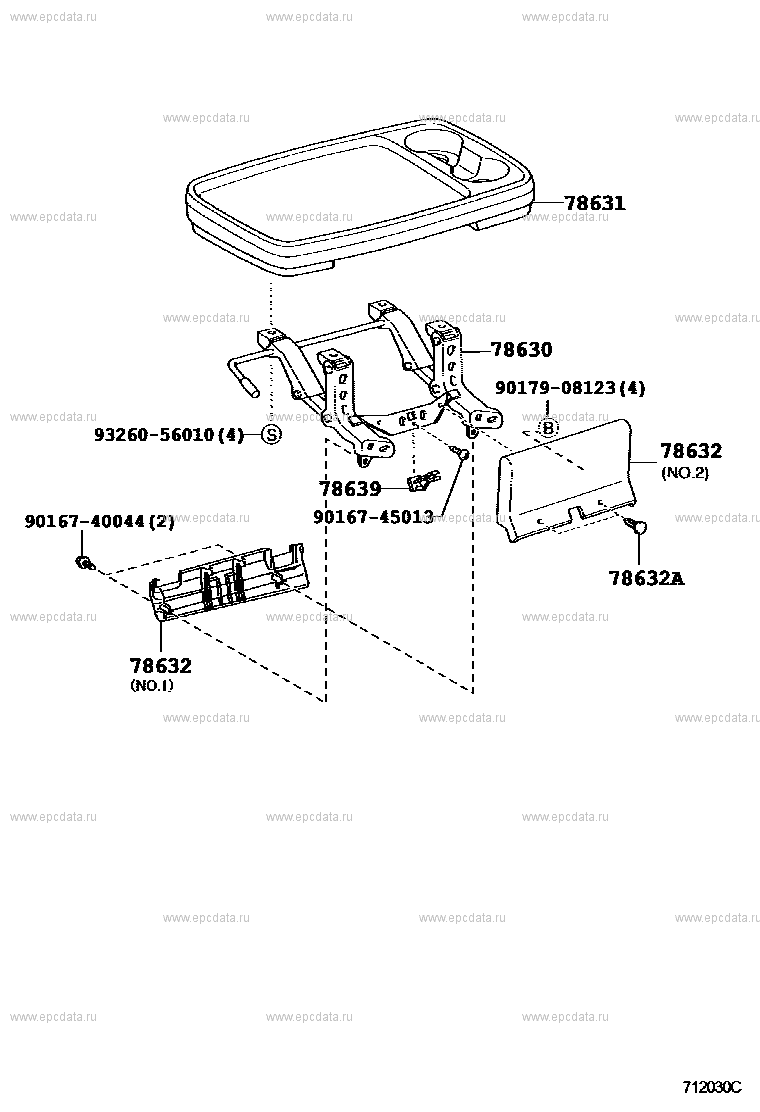

Scheme 6
|
(0105- ) ｻｲﾄﾞ ﾃ-ﾌﾞﾙ ILLUST NO. 3 OF 3 |
Click part number in the scheme or in the list: 78630 ADJUSTER ASSY, FR0NT SEAT SIDE TABLE78631 TABLE, FRONT SEAT SIDE 9326056010 ** Std Part 9016740044 ** Std Part 78639 CLIP, FRONT SEAT SIDE TABLE 9016745013 ** Std Part 78632 COVER, FRONT SEAT SIDE TABLE 78632A CLIP, FRONT SEAT SIDE TABLE COVER 9017908123 ** Std Part |
Scheme 7
|
(0105- ) ﾎｸﾞﾘﾝｸﾞ |
Click part number in the scheme or in the list: 9046818008 ** Std Part9046816019 ** Std Part |
