ToyotaHilux SurfVZN185WVZN185W-GAPGKTransmission and chassisRear spring & shock absorber

Rear spring & shock absorber for Hilux Surf VZN185W




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 48530 48530-39325 01 11.1995 - 07.1996 ABSORBER ASSY, SHOCK, REAR RH KZN185,VZN185..SSRG 265.31 USD
  (SUBS) 48530-39326 01    265.31
to 331.17 USD
02 48530 48530-39326 01 07.1996 - 08.1997 ABSORBER ASSY, SHOCK, REAR RH KZN185,VZN185..SSRG  265.31
to 331.17 USD
03 48530 48530-39485 01 08.1997 - 07.1998 ABSORBER ASSY, SHOCK, REAR RH KZN185,RZN185,VZN185..SSRG,SSRX
ｱﾘ(2ｽﾃｰｼﾞｼﾖﾂｸｱﾌﾞｿｰﾊﾞ)		 266.44 USD
04 48530 48530-39555 01 07.1998 - 08.2000 ABSORBER ASSY, SHOCK, REAR RH KZN185,RZN185,VZN185..SSRG  266.44
to 307.80 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9511-9607)

Click part number in the scheme or in the list:

48539 BRACKET, ACTUATOR SUPPORT, RR
9418401241 ** Std Part
48519A BRACKET, ACTUATOR SUPPORT, FRONT
48530J RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530P RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48530G CUSHION, REAR SHOCK ABSORBER, NO.1
48530K CUSHION, REAR SHOCK ABSORBER, NO.2
9418401041 ** Std Part
9462231200 ** Std Part
9017012039 ** Std Part
9010512288 ** Std Part
48740 ROD ASSY, REAR LATERAL CONTROL
9418300831 ** Std Part
48817S RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48306 BUMPER SUB-ASSY, REAR SPRING
9011908A30 ** Std Part
48231A SPRING, COIL, REAR RH
48231B SPRING, COIL, REAR LH
9010512287 ** Std Part
48710 ARM ASSY, UPPER CONTROL
48817V RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48817R CUSHION, STABILIZER(FOR REAR)
48812 BAR, STABILIZER, REAR
48815R BUSH, STABILIZER(FOR REAR)
48823C COVER, REAR STABILIZER BRACKET
9017912141 ** Std Part
48830 LINK ASSY, REAR STABILIZER
9017914068 ** Std Part
9011914069 ** Std Part
91611G0816 ** Std Part
48720 ARM ASSY, LOWER CONTROL, RH
48730 ARM ASSY, LOWER CONTROL, LH
48530 ABSORBER ASSY, SHOCK, REAR RH
48540 ABSORBER ASSY, SHOCK, REAR LH
48530B WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530C WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
91619G1220 ** Std Part
48530H BUSH, REAR SHOCK ABSORBER

Scheme 2

(9607-0008) ; (0008- )SPR,SSRV,SSRX

Click part number in the scheme or in the list:

48530P RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48530J RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
9462231200 ** Std Part
9017012039 ** Std Part
48740 ROD ASSY, REAR LATERAL CONTROL
48530 ABSORBER ASSY, SHOCK, REAR RH
48540 ABSORBER ASSY, SHOCK, REAR LH
48530H BUSH, REAR SHOCK ABSORBER
9418401041 ** Std Part
48530G CUSHION, REAR SHOCK ABSORBER, NO.1
48530K CUSHION, REAR SHOCK ABSORBER, NO.2
48530C WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530B WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48306 BUMPER SUB-ASSY, REAR SPRING
91619G1222 ** Std Part
9010512288 ** Std Part
9418300831 ** Std Part
48817R CUSHION, STABILIZER(FOR REAR)
48817S RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817V RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48830 LINK ASSY, REAR STABILIZER
48710 ARM ASSY, UPPER CONTROL
9010512287 ** Std Part
9017914068 ** Std Part
9011908A30 ** Std Part
48231A SPRING, COIL, REAR RH
48231B SPRING, COIL, REAR LH
48702C BUSH SUB-ASSY, LOWER CONTROL ARM
48720 ARM ASSY, LOWER CONTROL, RH
48730 ARM ASSY, LOWER CONTROL, LH
9011914069 ** Std Part
48302 SPRING SUB-ASSY, HOLLOW
48815R BUSH, STABILIZER(FOR REAR)
48823C COVER, REAR STABILIZER BRACKET
91611G0816 ** Std Part
48812 BAR, STABILIZER, REAR
9017912141 ** Std Part

Scheme 3

(9607-0008) ; (0008- )SPR,SSRV,SSRX
ｱﾘ(2ｽﾃｰｼﾞ ｼｮｯｸｱﾌﾞｿｰﾊﾞ)

Click part number in the scheme or in the list:

48539 BRACKET, ACTUATOR SUPPORT, RR
48519A BRACKET, ACTUATOR SUPPORT, FRONT
48530P RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48530J RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
9462231200 ** Std Part
9017012039 ** Std Part
48740 ROD ASSY, REAR LATERAL CONTROL
48530 ABSORBER ASSY, SHOCK, REAR RH
48540 ABSORBER ASSY, SHOCK, REAR LH
48530H BUSH, REAR SHOCK ABSORBER
9418401041 ** Std Part
48530G CUSHION, REAR SHOCK ABSORBER, NO.1
48530K CUSHION, REAR SHOCK ABSORBER, NO.2
48530C WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530B WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48306 BUMPER SUB-ASSY, REAR SPRING
91619G1222 ** Std Part
9010512288 ** Std Part
9418300831 ** Std Part
48817R CUSHION, STABILIZER(FOR REAR)
48817S RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817V RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48830 LINK ASSY, REAR STABILIZER
48710 ARM ASSY, UPPER CONTROL
9010512287 ** Std Part
9017914068 ** Std Part
9011908A30 ** Std Part
48231A SPRING, COIL, REAR RH
48231B SPRING, COIL, REAR LH
48702C BUSH SUB-ASSY, LOWER CONTROL ARM
48720 ARM ASSY, LOWER CONTROL, RH
48730 ARM ASSY, LOWER CONTROL, LH
9011914069 ** Std Part
48302 SPRING SUB-ASSY, HOLLOW
48815R BUSH, STABILIZER(FOR REAR)
48823C COVER, REAR STABILIZER BRACKET
91611G0816 ** Std Part
48812 BAR, STABILIZER, REAR
9017912141 ** Std Part

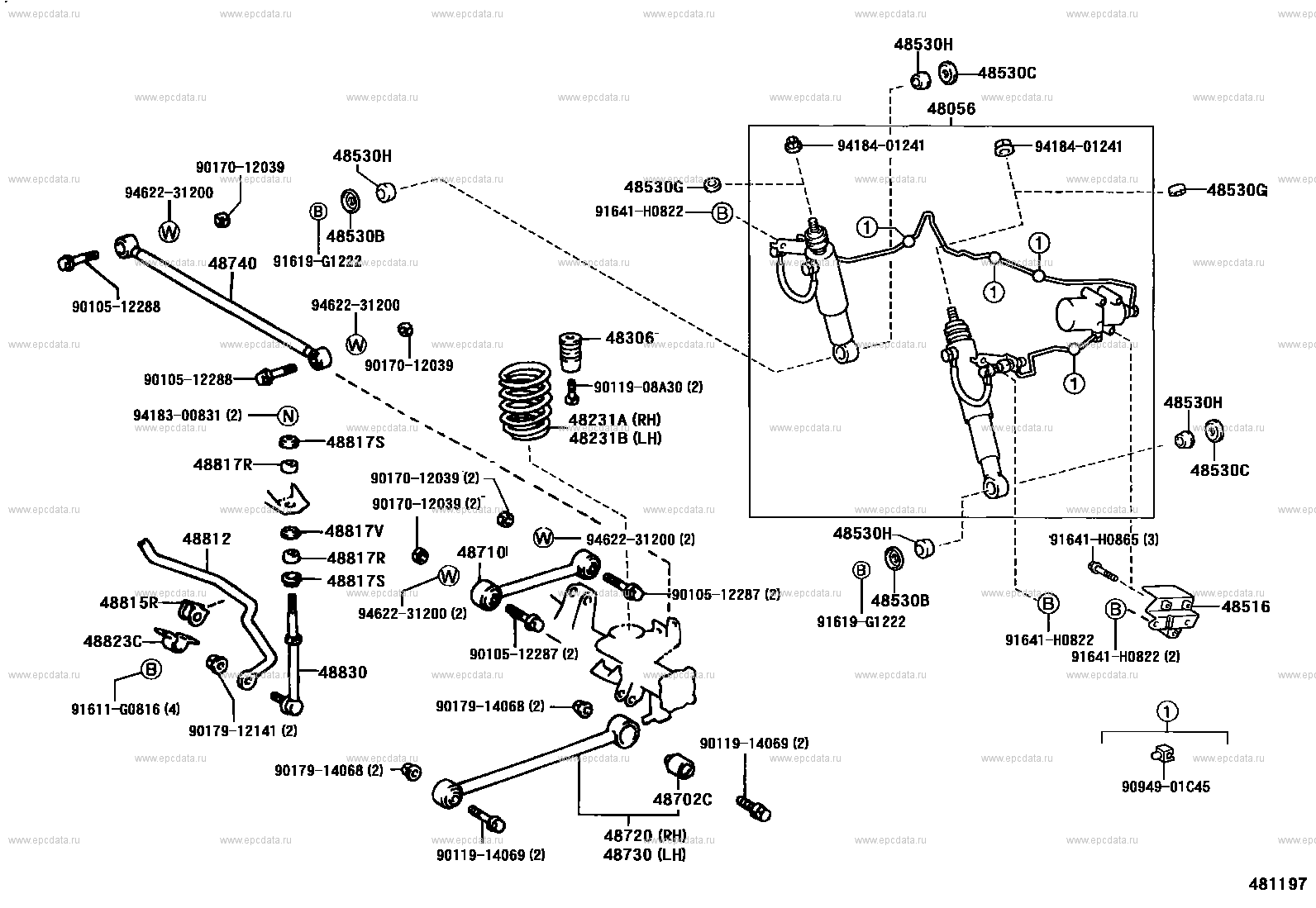

Scheme 4

(0008- )SSRG
REAS

Click part number in the scheme or in the list:

48530H BUSH, REAR SHOCK ABSORBER
48530C WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48056 ABSORBER SET, REAR
9418401241 ** Std Part
9017012039 ** Std Part
48530G CUSHION, REAR SHOCK ABSORBER, NO.1
9462231200 ** Std Part
91641H0822 ** Std Part
48530B WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
91619G1222 ** Std Part
48740 ROD ASSY, REAR LATERAL CONTROL
9010512288 ** Std Part
48306 BUMPER SUB-ASSY, REAR SPRING
9011908A30 ** Std Part
9418300831 ** Std Part
48231A SPRING, COIL, REAR RH
48231B SPRING, COIL, REAR LH
48817S RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817R CUSHION, STABILIZER(FOR REAR)
48817V RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48812 BAR, STABILIZER, REAR
91641H0865 ** Std Part
48710 ARM ASSY, UPPER CONTROL
9010512287 ** Std Part
48815R BUSH, STABILIZER(FOR REAR)
48516 BRACKET, REAR SHOCK ABSORBER, UPPER RH
48823C COVER, REAR STABILIZER BRACKET
48830 LINK ASSY, REAR STABILIZER
9017914068 ** Std Part
91611G0816 ** Std Part
9017912141 ** Std Part
9011914069 ** Std Part
9094901C45 ** Std Part
48702C BUSH SUB-ASSY, LOWER CONTROL ARM
48720 ARM ASSY, LOWER CONTROL, RH
48730 ARM ASSY, LOWER CONTROL, LH
