Cylinder head for Hilux RZN147
Click on the part subgroup below to get genuine part numbers.
| (9708-0308)1RZE |

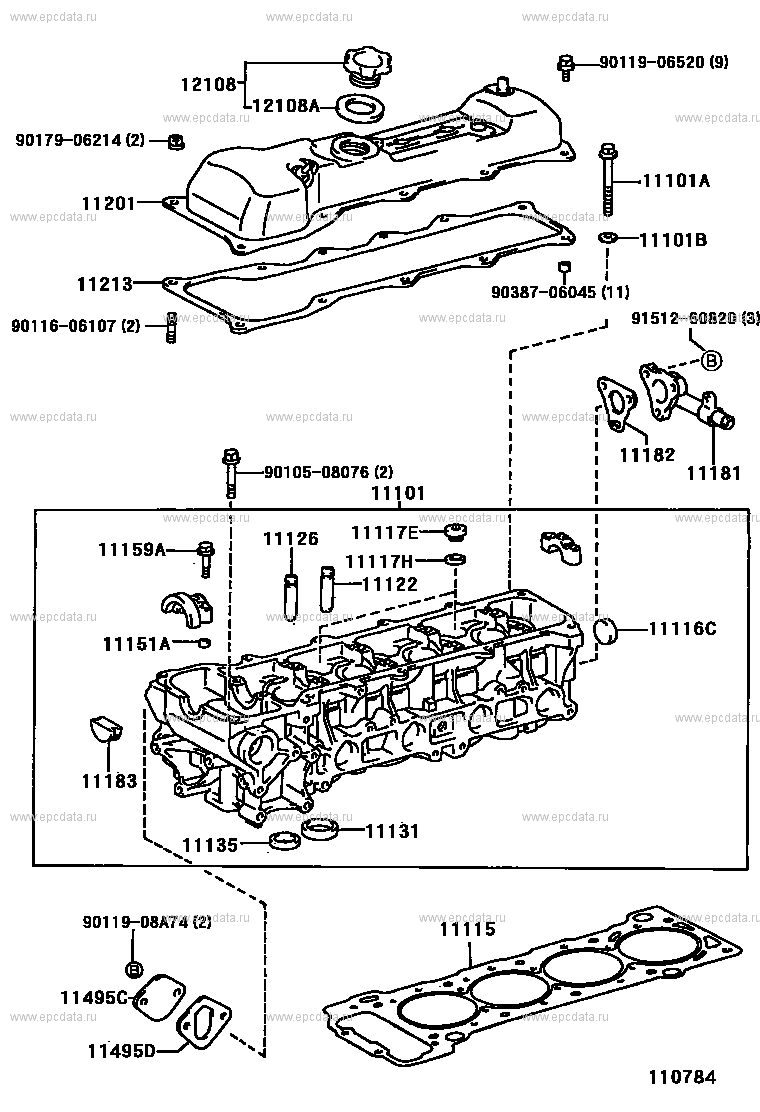

Click part number in the scheme or in the list: 9011906520 ** Std Part12108 CAP SUB-ASSY, OIL FILLER 12108A GASKET(FOR OIL FILLER CAP) 9017906214 ** Std Part 11101A BOLT(FOR CYLINDER HEAD SET) 11201 COVER SUB-ASSY, CYLINDER HEAD 11101B WASHER, PLATE(FOR CYLINDER HEAD SET) 11213 GASKET, CYLINDER HEAD COVER 9038706045 ** Std Part 9151260820 ** Std Part 9011606107 ** Std Part 11182 GASKET, CYLINDER HEAD REAR PLATE 9010508076 ** Std Part 11181 PLATE, CYLINDER HEAD, REAR 11101 HEAD SUB-ASSY, CYLINDER 11117E PLUG, W/HEAD STRAIGHT SCREW, NO.1 11126 BUSH, EXHAUST VALVE GUIDE 11159A BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11117H GASKET(FOR WATER HOLE) 11122 BUSH, INTAKE VALVE GUIDE 11116C PLUG, TIGHT, NO.3 11151A PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11183 PLUG, SEMICIRCULAR 11131 SEAT, INTAKE VALVE 11135 SEAT, EXHAUST VALVE 9011908A74 ** Std Part 11115 GASKET, CYLINDER HEAD 11495C PLUG, PLATE(FOR CYLINDER HEAD) 11495D GASKET(FOR CYLINDER HEAD) |
