(8809-9408)2L
|

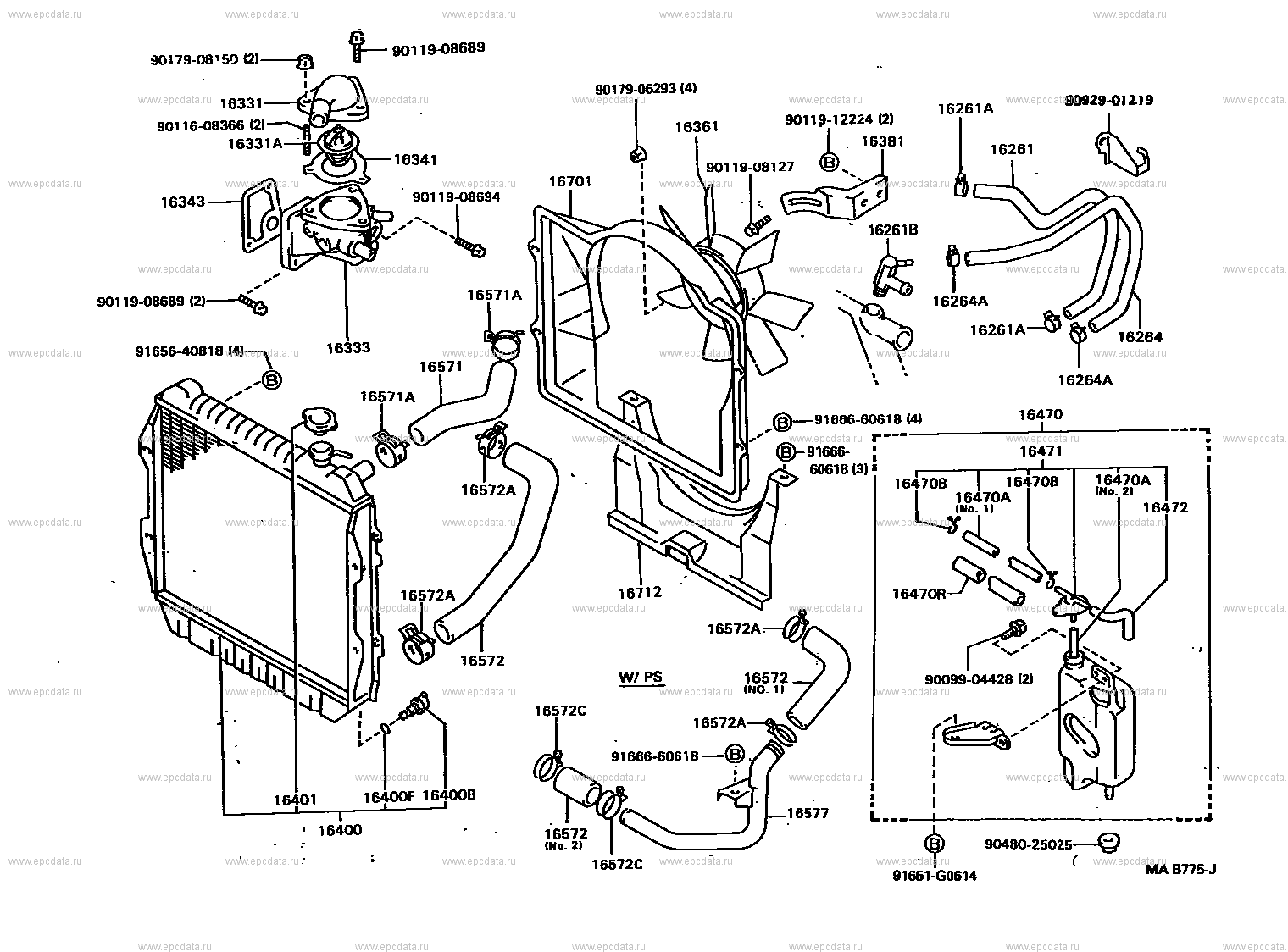

Click part number in the scheme or in the list:
9011908689 ** Std Part
9017908150 ** Std Part
9017906293 ** Std Part
9092901219 ** Std Part
16331 OUTLET, WATER
16261A CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
9011912224 ** Std Part
9011608366 ** Std Part
16361 FAN
16381 BAR, FAN BELT ADJUSTING
16331A THERMOSTAT
16261 HOSE, WATER BY-PASS
16341 GASKET, WATER OUTLET
9011908127 ** Std Part
16701 SHROUD SUB-ASSY, FAN
9011908694 ** Std Part
16343 GASKET, WATER OUTLET HOUSING
16261B UNION(FOR WATER BY-PASS HOSE)
16571A CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16264A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264 HOSE, WATER BY-PASS, NO.2
16333 HOUSING, WATER OUTLET
9165640818 ** Std Part
16571 HOSE, RADIATOR, INLET
16470 TANK ASSY, RADIATOR RESERVE
9166660618 ** Std Part
16471 CAP SUB-ASSY, RESERVE TANK
16470A HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16572A CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16472 HOSE, BREATHER
16712 SHROUD, FAN, NO.2
16470R HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16572 HOSE, RADIATOR, OUTLET
9009904428 ** Std Part
16572C CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
16400B PLUG, RADIATOR DRAIN COCK
16400F PACKING(FOR RADIATOR DRAIN COCK)
16401 CAP SUB-ASSY, RADIATOR
16577 PIPE, RADIATOR, NO.7
16400 RADIATOR ASSY
9048025025 ** Std Part
91651G0614 ** Std Part |
