Steering wheel for Hilux LN85
|
Here are parts you've selected:
| ||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

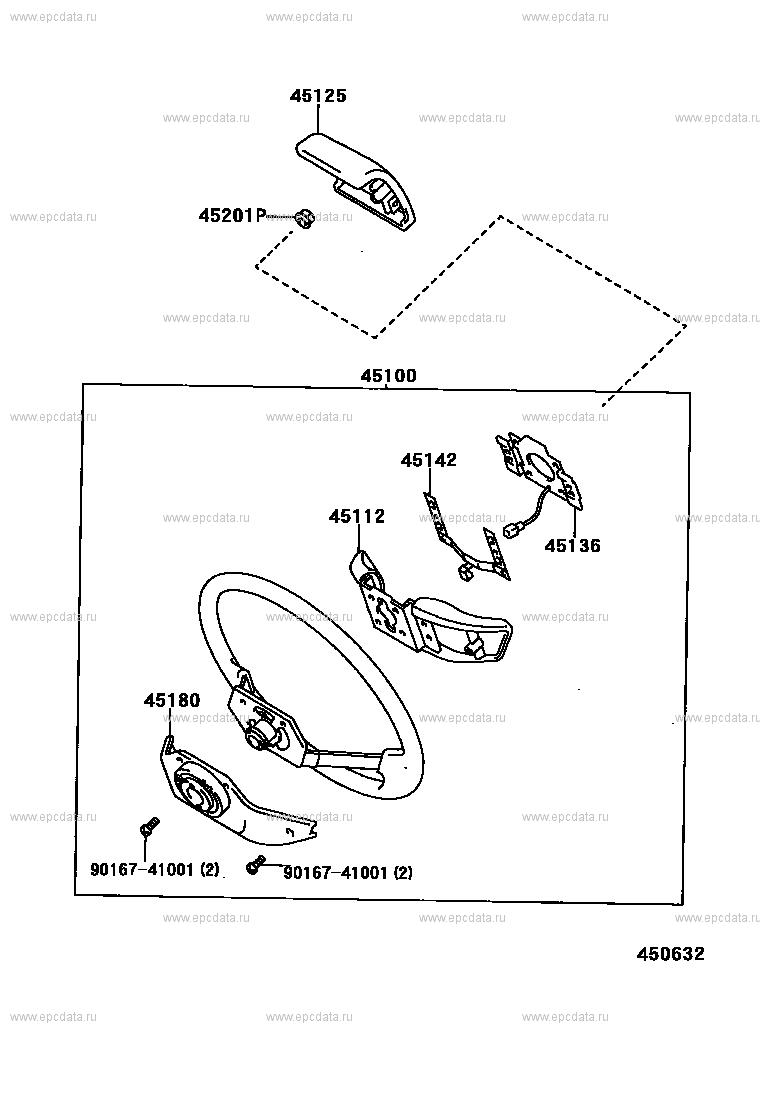

Scheme 1
|
(8809-9108) 2-SPOKE |
Click part number in the scheme or in the list: 45125 MARK, STEERING WHEEL PAD45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 45142 SEAT, HORN BUTTON CONTACT, NO.1 45112 PAD, STEERING WHEEL 45136 PLATE, HORN BUTTON CONTACT 45180 COVER SUB-ASSY, STEERING WHEEL 9016741001 ** Std Part |
Scheme 2
|
(9108-9408) 2-SPOKE |
Click part number in the scheme or in the list: 45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.19015740012 ** Std Part 45130 BUTTON ASSY, HORN 45100 WHEEL ASSY, STEERING 45180 COVER SUB-ASSY, STEERING WHEEL 9016741001 ** Std Part 45201P NUT, STEERING WHEEL SET 9331515014 ** Std Part |
Scheme 3
|
(8809-9108) 3-SPOKE |
Click part number in the scheme or in the list: 45130 BUTTON ASSY, HORN45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 45105A CUSHION(FOR HORN BUTTON CONTACT PLATE) 45147 SPACER, HORN BUTTON 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 45180 COVER SUB-ASSY, STEERING WHEEL 9331515010 ** Std Part 9331515014 ** Std Part |
Scheme 4
|
(9108- ) 3-SPOKE |
Click part number in the scheme or in the list: 45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.19351013010 ** Std Part 45142E PIECE, HORN CONTACT 45130 BUTTON ASSY, HORN 9015940208 ** Std Part 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 45180 COVER SUB-ASSY, STEERING WHEEL 9331515010 ** Std Part 9331515014 ** Std Part |
Scheme 5
|
(8904- ) 3-SPOKE,ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
Click part number in the scheme or in the list: 45125 MARK, STEERING WHEEL PAD45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 9351013010 ** Std Part 45142E PIECE, HORN CONTACT 45130 BUTTON ASSY, HORN 9015940208 ** Std Part 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING ** 84-08 45180 COVER SUB-ASSY, STEERING WHEEL 9331515010 ** Std Part 9351015014 ** Std Part 9331515014 ** Std Part |
