Front steering gear & link for Hilux LN85
Click on the part subgroup below to get genuine part numbers.
Scheme 1
Scheme 2
|

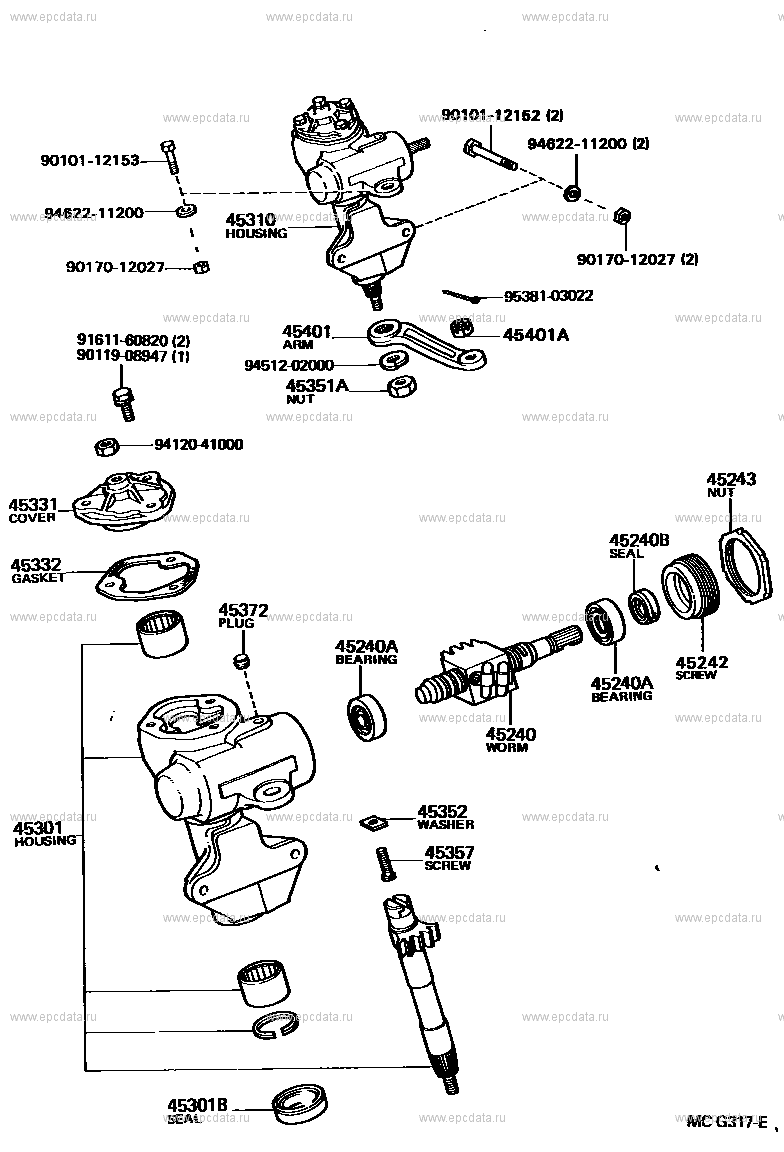

(8809-9408)LN8#,YN8# MANUAL STEERING ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 9010112152 ** Std Part9462211200 ** Std Part 9010112153 ** Std Part 45310 HOUSING ASSY, STEERING GEAR 9017012027 ** Std Part 9538103022 ** Std Part 45401 ARM SUB-ASSY, PITMAN 45401A NUT, CASTLE(FOR PITMAN ARM) 9161160820 ** Std Part 9011908947 ** Std Part 9451202000 ** Std Part 45351A NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) 9412041000 ** Std Part 45243 NUT, WORM BEARING ADJUSTING SCREW LOCK 45331 COVER, SECTOR SHAFT END 45240B SEAL, OIL(FOR STEERING WORM) 45332 GASKET, SECTOR SHAFT END COVER 45372 PLUG, STEERING GEAR HOUSING OIL 45240A BEARING(FOR STEERING WORM) 45242 SCREW, WORM BEARING ADJUSTING 45240 WORM ASSY, STEERING 45352 WASHER, SECTOR SHAFT THRUST 45301 HOUSING SUB-ASSY, STEERING GEAR 45357 SCREW, SECTOR SHAFT ADJUSTING 45301B SEAL, OIL(FOR SECTOR SHAFT) |
Scheme 3
|
(8809- )KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# POWER STEERING ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 44110 GEAR ASSY, POWER STEERING9010112153 ** Std Part 9462211200 ** Std Part 9017012027 ** Std Part 9010512110 ** Std Part 9010512113 ** Std Part 9017912020 ** Std Part 45401 ARM SUB-ASSY, PITMAN 9451102200 ** Std Part 45351A NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) 04455A GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE 04445 GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) |
Scheme 4
