Front steering gear & link for Hilux LN106
Click on the part subgroup below to get genuine part numbers.

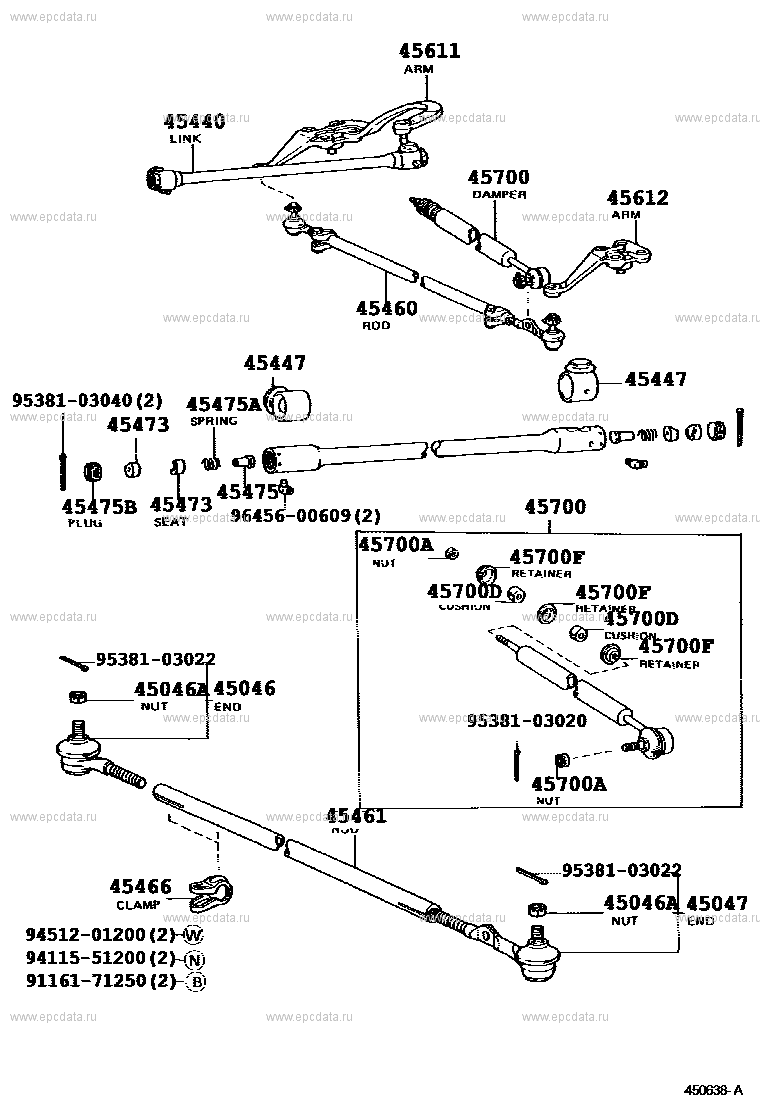

Scheme 1
|
(8809- )LN100,106,YN100,105 ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 45440 LINK ASSY, STEERING DRAG45460 ROD ASSY, TIE, RH 45447 SEAL, DRAG LINK DUST 45611 ARM, STEERING KNUCKLE, RH 45700 DAMPER ASSY, STEERING 45612 ARM, STEERING KNUCKLE, LH 45700A NUT(FOR STEERING DAMPER) 45700D CUSHION, STEERING DAMPER 45700F RETAINER, STEERING DAMPER CUSHION 45473 SEAT, BALL STUD 45475B PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) 45475 SEAT, STEERING LINK JOINT SPRING 45475A SPRING, COMPRESSION(FOR STEERING LINK JOINT) 9538103040 ** Std Part 9645600609 ** Std Part 45046 END SUB-ASSY, TIE ROD, RH 45046A NUT, CASTLE(FOR TIE ROD END) 9538103022 ** Std Part 45461 ROD, STEERING TIE 45466 CLAMP, TIE ROD END 9451201200 ** Std Part 9411551200 ** Std Part 9538103020 ** Std Part 45047 END SUB-ASSY, TIE ROD, LH 9116171250 ** Std Part |
Scheme 2
|
(8809- )LN100,106,YN100,105 MANUAL STEERING ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 9011910069 ** Std Part9451102200 ** Std Part 45310 HOUSING ASSY, STEERING GEAR 45351A NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) 9010110070 ** Std Part 45401 ARM SUB-ASSY, PITMAN 9451201000 ** Std Part 45312 BRACKET, STEERING GEAR HOUSING 45242 SCREW, WORM BEARING ADJUSTING 9015950010 ** Std Part 45240A BEARING(FOR STEERING WORM) 45240 WORM ASSY, STEERING 45243 NUT, WORM BEARING ADJUSTING SCREW LOCK 45372 PLUG, STEERING GEAR HOUSING OIL 45301B SEAL, OIL(FOR SECTOR SHAFT) 45240B SEAL, OIL(FOR STEERING WORM) 45351 SHAFT, STEERING SECTOR 45301H BUSH OR BEARING, SECTOR SHAFT, NO.2 45301A BUSH OR BEARING, SECTOR SHAFT, NO.1 45352 WASHER, SECTOR SHAFT THRUST 45301 HOUSING SUB-ASSY, STEERING GEAR 45332 GASKET, SECTOR SHAFT END COVER 9010512068 ** Std Part 45357 SCREW, SECTOR SHAFT ADJUSTING 9017012011 ** Std Part 45331 COVER, SECTOR SHAFT END |
Scheme 3
|
(8809- )LN100,106,YN100,105 POWER STEERING ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 9451102200 ** Std Part9011910069 ** Std Part 44110 GEAR ASSY, POWER STEERING 45351A NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) 45401 ARM SUB-ASSY, PITMAN 9010110070 ** Std Part 9451201000 ** Std Part 45312 BRACKET, STEERING GEAR HOUSING 04445 GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) 04455A GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE |
Scheme 4
|
(8809- )LN100,106,YN100,105 POWER STEERING ILLUST NO. 3 OF 3 |
Click part number in the scheme or in the list: 44120 VALVE ASSY, W/BALL NUT44105C SEAT, UNION(FOR VALVE BODY HOUSING) 44114B RING, O(FOR POWER PISTON NUT) 44114A RING(FOR POWER PISTON NUT) 44107E SEAL, OIL(FOR POWER STEERING GEAR HOUSING) 44107 HOUSING SUB-ASSY, POWER STEERING GEAR 44107C RING(FOR POWER STEERING GEAR HOUSING) 44107A BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) 44107B RING, O(FOR POWER STEERING GEAR HOUSING) 44107D RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) 9011910070 ** Std Part 44142A NUT, LOCK, NO.1 44111 SHAFT, CROSS 45357 SCREW, SECTOR SHAFT ADJUSTING 44257A WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) 44108A RING, O(FOR SIDE COVER) 44108 COVER SUB-ASSY, SIDE 9017010208 ** Std Part |
