(8809- )3L..LN100,106,107,109
|

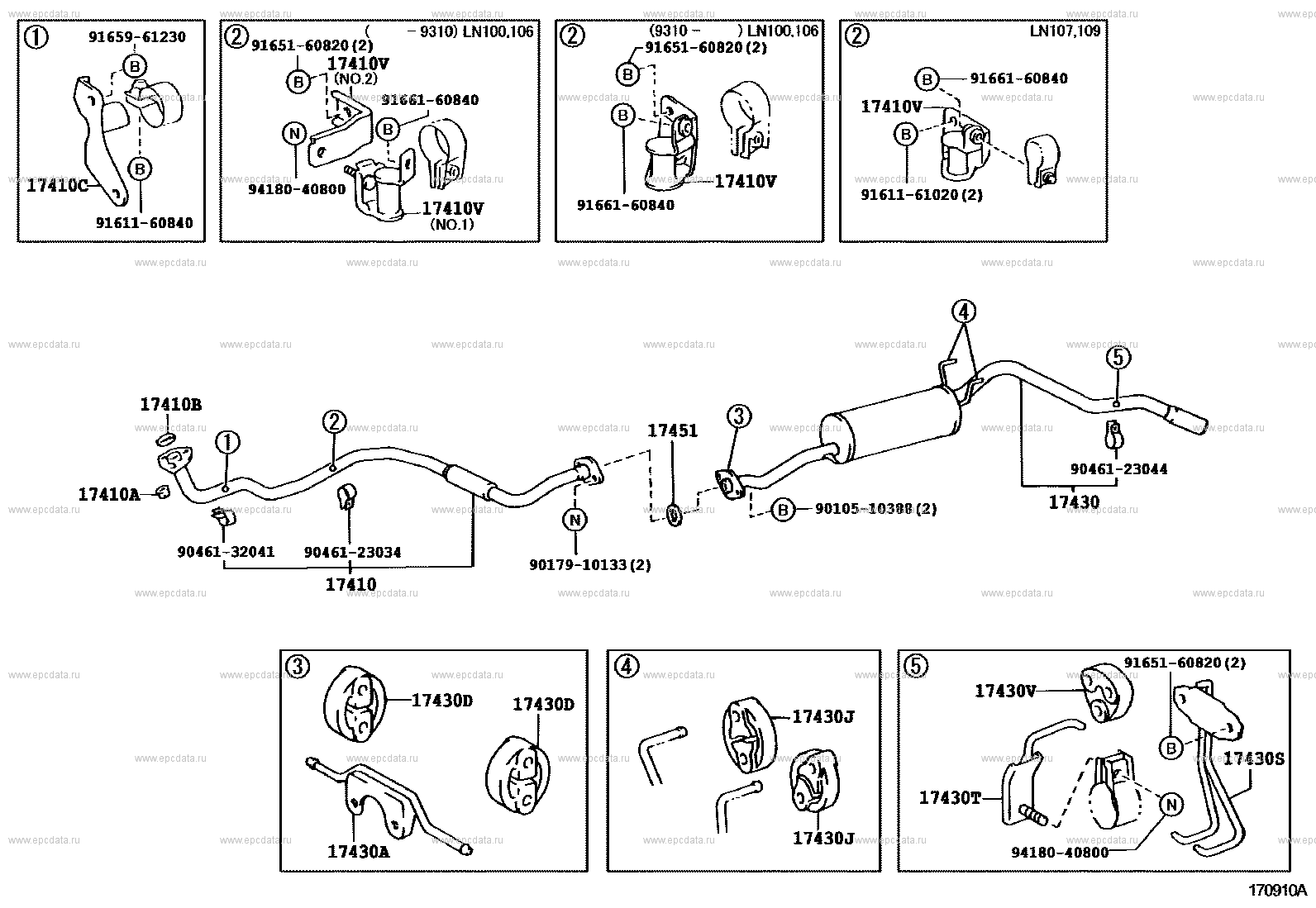

Click part number in the scheme or in the list:
9165961230 ** Std Part
17410C BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
9161160840 ** Std Part
9165160820 ** Std Part
17410V BRACKET, EXHAUST PIPE FRONT (FOR REAR)
9418040800 ** Std Part
17410B GASKET, EXHAUST PIPE
9166160840 ** Std Part
9161161020 ** Std Part
9046123044 ** Std Part
17430 PIPE ASSY, EXHAUST, TAIL
9010510388 ** Std Part
17451 GASKET, EXHAUST PIPE
9017910133 ** Std Part
17430J BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
9046123034 ** Std Part
17410 PIPE ASSY, EXHAUST, FRONT
17430D BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17430A BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17410A NUT, EXHAUST PIPE SET STUD BOLT
9046132041 ** Std Part
17430T CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17430V BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17430S BRACKET, EXHAUST TAIL PIPE (FOR REAR) |
