Roof headlining & silencer pad for Gaia ACM15G

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9805- ) Open full size scheme Go to top

Click part number in the scheme or in the list: 63310 HEADLINING ASSY, ROOF 63310D CLIP, ROOF HEADLINING 63351B PAD, ROOF HEADLINING 63303 TRIM SUB-ASSY, SUNSHADE, NO.2 63328C KNOB, SUNSHADE TRIM 63306 TRIM SUB-ASSY, SUNSHADE 63319C JOINT, SUN ROOF OPENING TRIM 63329 MOULDING, SUN ROOF OPENING TRIM, NO.2 63318C MOULDING, SUN ROOF OPENING TRIM

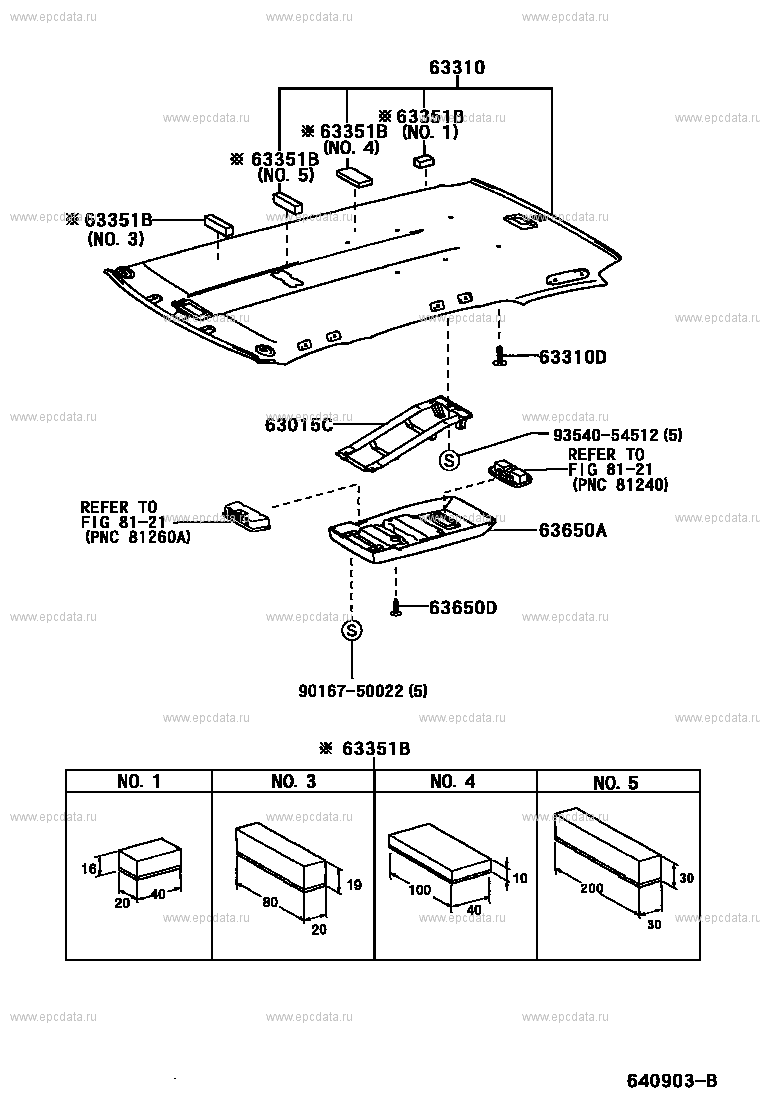

Scheme 2

(0104- ) ｱﾘ(ｵ-ﾊﾞ-ﾍﾂﾄﾞ ｺﾝｿ-ﾙ) Open full size scheme Go to top

Click part number in the scheme or in the list: 63310 HEADLINING ASSY, ROOF 63351B PAD, ROOF HEADLINING 63310D CLIP, ROOF HEADLINING 63015C BRACKET SUB-ASSY, ROOF CONSOLE 9354054512 ** Std Part ** 81-21 63650A BOX ASSY, ROOF CONSOLE 63650D CLIP(FOR ROOF CONSOLE BOX) 9016750022 ** Std Part

Gaia ACM15G
