Heating & air conditioning - cooler unit for FJ Cruiser GSJ15W

Click on the part subgroup below to get genuine part numbers.

Scheme 1

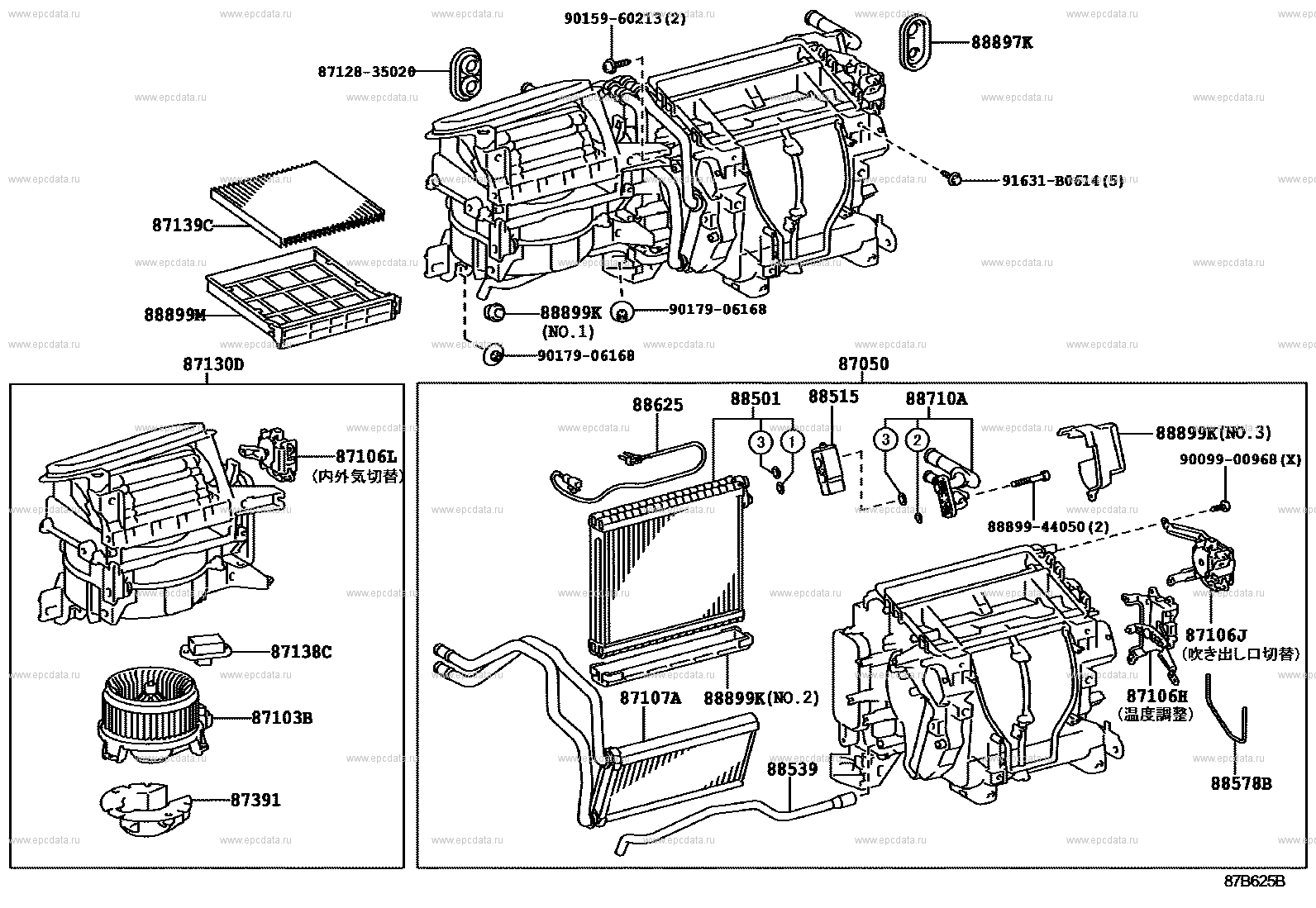

(1011- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 87106H SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87130D BLOWER ASSY 88899M PLATE, COVER(FOR AIR FILTER) 87139C FILTER, CLEAN AIR 87103B MOTOR SUB-ASSY, BLOWER W/FAN 87138C RESISTOR, BLOWER 87106L SERVO SUB-ASSY, DAMPER 87391 COVER, BLOWER MOTOR 87106J SERVO SUB-ASSY, DAMPER(FOR MODE) 88578B PACKING, COOLING UNIT, NO.1 88539 HOSE, COOLER UNIT DRAIN, NO.1 87107A UNIT SUB-ASSY, HEATER RADIATOR 88710A TUBE ASSY, AIRCONDITIONER 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 VALVE, COOLER EXPANSION 88625 THERMISTOR, COOLER, NO.1 87050 RADIATOR ASSY, AIR CONDITIONER 88897K GROMMET, (FOR COOLER PIPE) 88899K PLATE, COVER 9017906168 ** Std Part 91631B0614 ** Std Part 9009900968 ** Std Part 8889944050 ** Std Part 8712835020 ** Std Part 9015960213 ** Std Part

Scheme 2

(1011- ) O-ﾘﾝｸﾞ ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9009914120 ** Std Part 9009914119 ** Std Part 9009914121 ** Std Part

FJ Cruiser GSJ15W
