Manifold for Estima AHR20W

Click on the part subgroup below to get genuine part numbers.

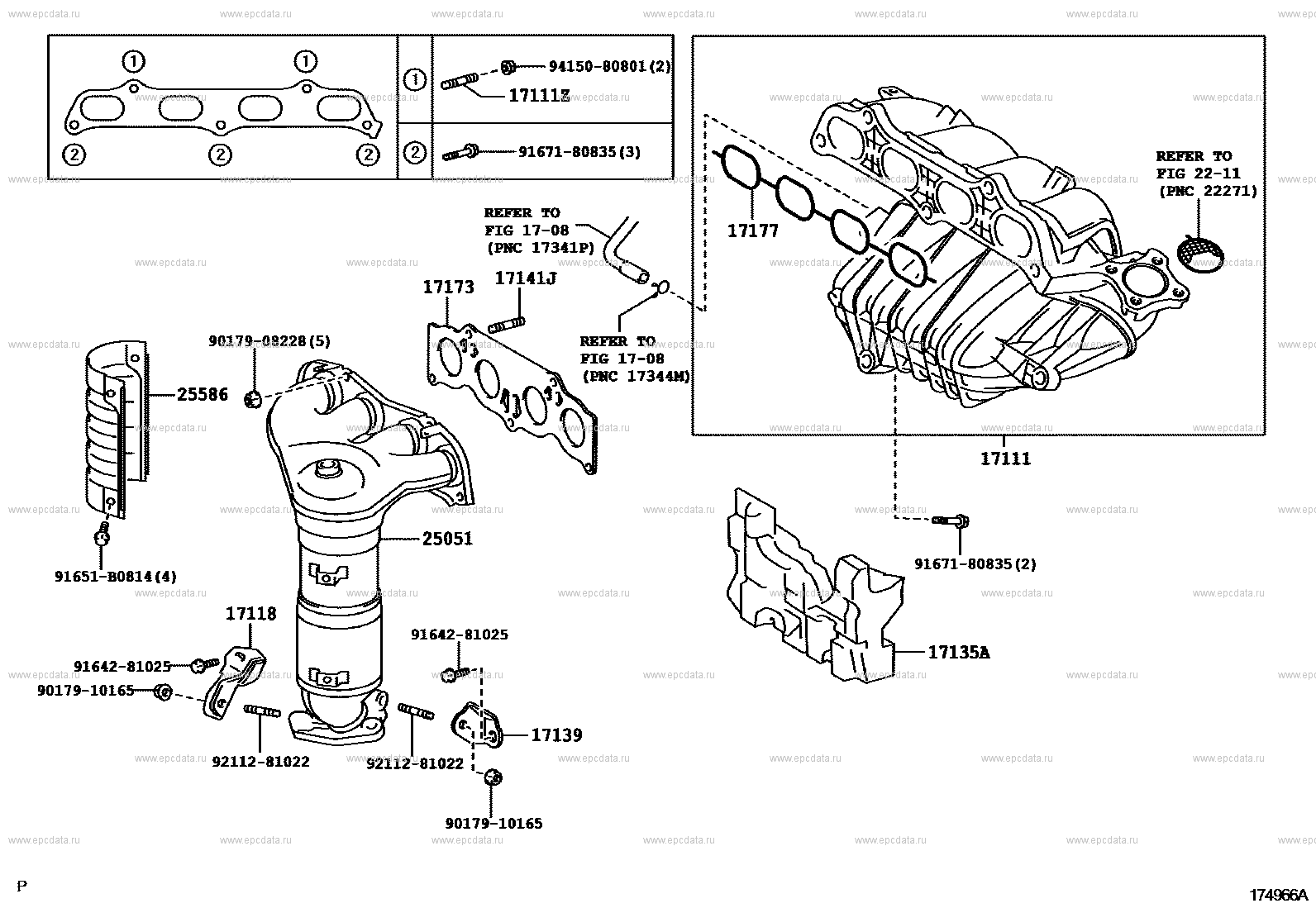

(0606- ) Open full size scheme

Click part number in the scheme or in the list: 9415080801 ** Std Part 17111Z BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 25586 INSULATOR, MANIFOLD CONVERTER, NO.1 25051 CONVERTER SUB-ASSY, EXHAUST MANIFOLD 9167180835 ** Std Part 17141J BOLT, STUD(FOR EXHAUST MANIFOLD, RH) 17173 GASKET, EXHAUST MANIFOLD TO HEAD 9211281022 ** Std Part 9017910165 ** Std Part 17139 STAY, MANIFOLD, NO.2 17118 STAY, MANIFOLD 17135A INSULATOR, INTAKE MANIFOLD, NO.1 91651B0814 ** Std Part 9017908228 ** Std Part 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17111 MANIFOLD, INTAKE 9164281025 ** Std Part ** 17-08 ** 22-11

Estima AHR20W
