Rear axle shaft & hub for Estima AHR20W

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 42312B 90177-22001 01 06.2006 - 12.2008 NUT (FOR REAR AXLE SHAFT LH) AHR20  1.70 to 2.08 USD 02 42312B 90177-22001 01 12.2008 - 04.2012 NUT (FOR REAR AXLE SHAFT LH) AHR20  1.70 to 2.08 USD 03 42312B 90177-22001 01 04.2012 - NUT (FOR REAR AXLE SHAFT LH) AHR20  1.70 to 2.08 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0606- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 42311U BOLT, HUB (FOR REAR AXLE RH) 42431 DISC, REAR 42410 HUB & BEARING ASSY, REAR AXLE, RH 42440 HUB & BEARING ASSY, REAR AXLE, LH 42424 RETAINER, REAR AXLE BEARING, OUTER, RH 42454 RETAINER, REAR AXLE BEARING, OUTER, LH 42491 PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) 42312B NUT (FOR REAR AXLE SHAFT LH) 42311N NUT (FOR REAR AXLE SHAFT RH) 42312E BOLT, HUB (FOR REAR AXLE LH) 9010512359 ** Std Part

Scheme 2

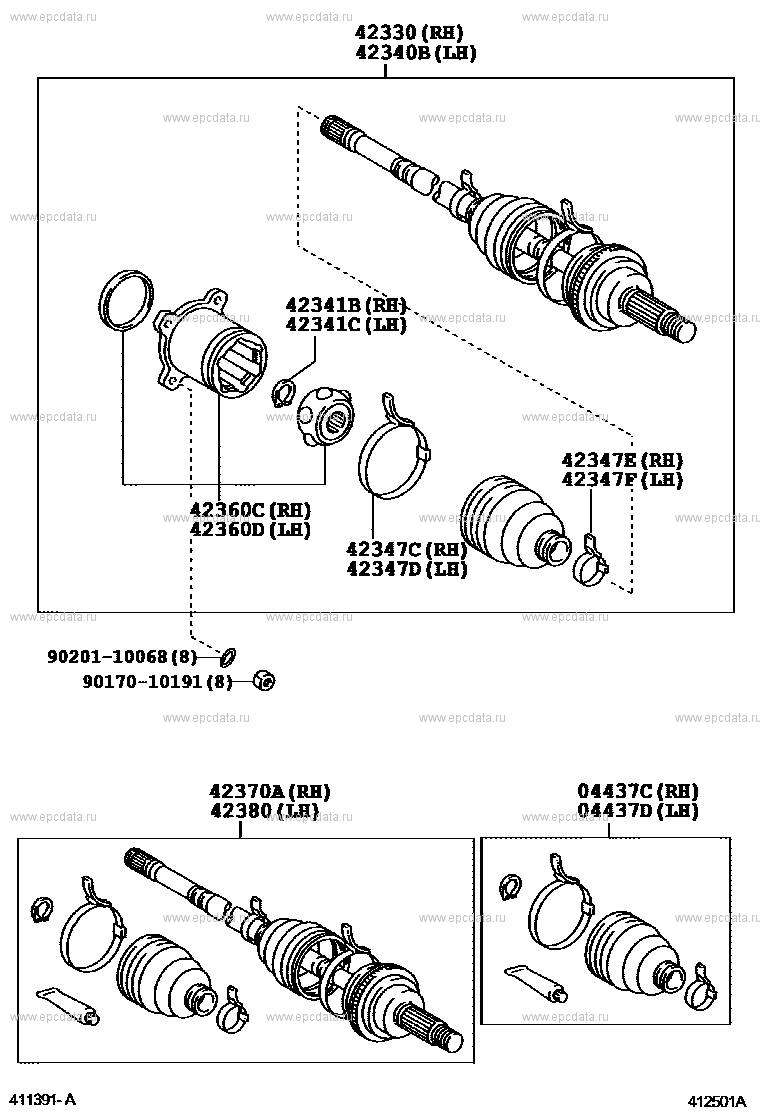

(0606- ) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 42330 SHAFT ASSY, REAR DRIVE, RH 42340B SHAFT ASSY, REAR DRIVE, LH 42341B RING, SNAP (FOR REAR DRIVE SHAFT RH) 42341C RING, SNAP (FOR REAR DRIVE SHAFT LH) 42347E CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) 42347F CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH 42347C CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) 42347D CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) 42370A SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH 42380 SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH 9020110068 ** Std Part 9017010191 ** Std Part 42360C JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH 42360D JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH 04437C BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH 04437D BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH

Estima AHR20W
