Switch & relay & computer for Estima AHR20W
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(0606- ) ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ILLUST NO. 1 OF 8 |
Click part number in the scheme or in the list: 83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE)8761642020 ** Std Part 8761628030 ** Std Part 89467B SENSOR, AIR FUEL RATIO 89465 SENSOR, OXYGEN 90178C0017 ** Std Part 9017908153 ** Std Part 9012608039 ** Std Part 89615 SENSOR, KNOCK CONTROL |
Scheme 2
Scheme 3
Scheme 4
|

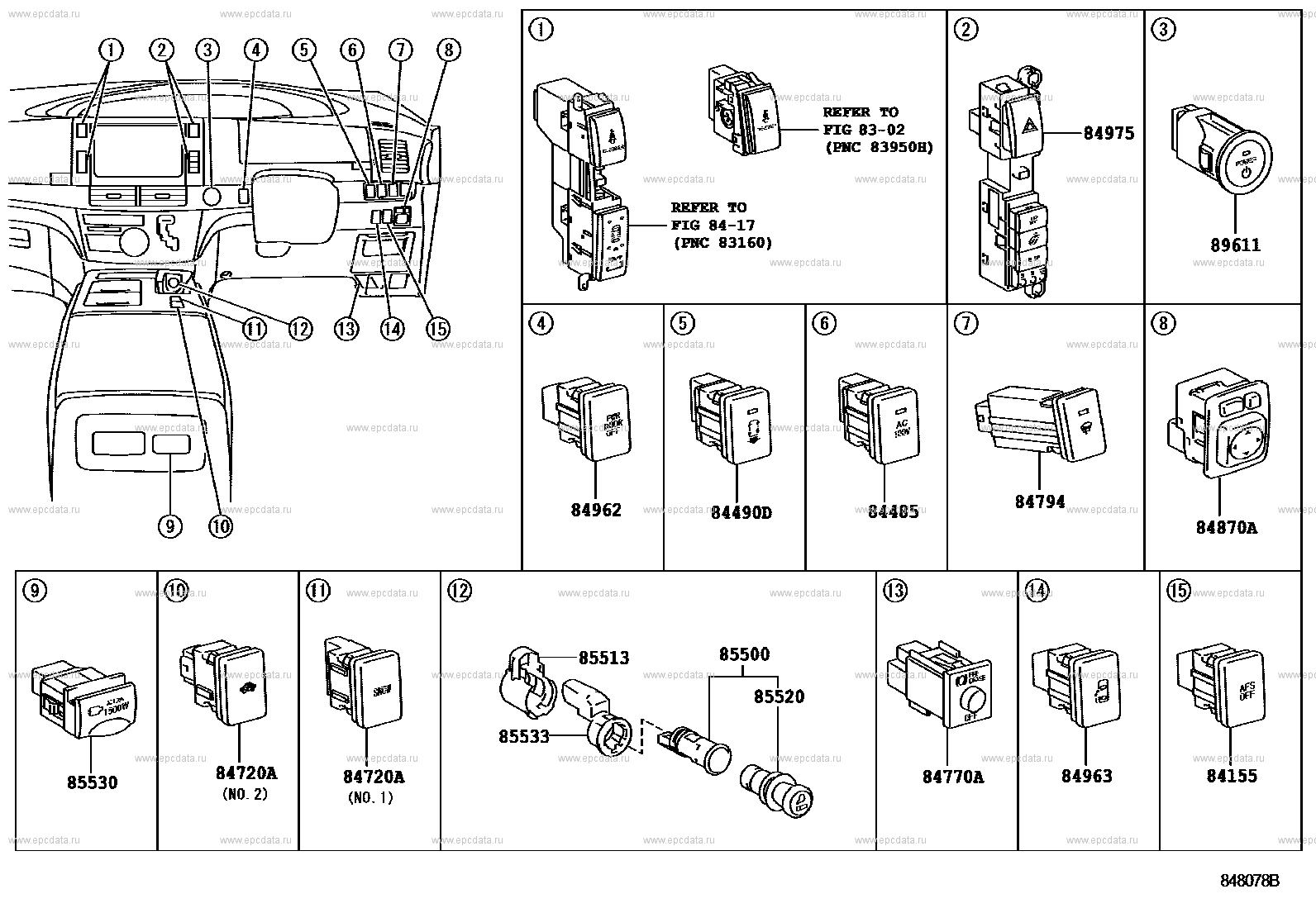

(0606-0812) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 8 |
Click part number in the scheme or in the list: 84975 SWITCH, TRIP85530 SOCKET ASSY, POWER OUTLET, NO.1 84870A SWITCH ASSY, OUTER MIRROR 84770A SWITCH ASSY, PRECRASH SYSTEM CANCEL 84963 SWITCH, POWER SLIDE DOOR CONTROL, NO.1 84794 SWITCH, FR WIPER DEICER 84155 SWITCH, HEADLAMP SWIVEL MAIN 84485 SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) 84962 SWITCH, POWER SLIDE DOOR MAIN 85533 LENS, CIGARETTE LIGHTER INDICATOR 85513 COVER, CIGARETTE LIGHTER 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85500 LIGHTER ASSY, CIGARETTE 84490D SWITCH ASSY, IPA MAIN 89611 SWITCH, PUSH START 84720A SWITCH ASSY, PATTERN SELECT, NO.1 ** 84-17 ** 83-02 |
Scheme 5
|
(0812- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 4 OF 8 |
Click part number in the scheme or in the list: ** 84-17** 83-02 84975 SWITCH, TRIP 85530 SOCKET ASSY, POWER OUTLET, NO.1 84870A SWITCH ASSY, OUTER MIRROR 84770A SWITCH ASSY, PRECRASH SYSTEM CANCEL 84963 SWITCH, POWER SLIDE DOOR CONTROL, NO.1 84794 SWITCH, FR WIPER DEICER 84155 SWITCH, HEADLAMP SWIVEL MAIN 84485 SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) 85533 LENS, CIGARETTE LIGHTER INDICATOR 85513 COVER, CIGARETTE LIGHTER 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85500 LIGHTER ASSY, CIGARETTE 84490E SWITCH ASSY, IPA PRE SUPPORT 89611 SWITCH, PUSH START 84751 SWITCH, SEAT HEATER 84720A SWITCH ASSY, PATTERN SELECT, NO.1 84962 SWITCH, POWER SLIDE DOOR MAIN 84740B SWITCH ASSY, AIR PURIFIER 84431 SWITCH, VEHICLE APPROACHING SPEAKER ** 58-55 84988L SWITCH, VSC OFF |
Scheme 6
|
(0606- ) ｽﾃｱﾘﾝｸﾞ ILLUST NO. 5 OF 8 |
Click part number in the scheme or in the list: 84140 SWITCH ASSY, HEADLAMP DIMMER84650 SWITCH ASSY, WINDSHIELD WIPER 84306 CABLE SUB-ASSY, SPIRAL 89245B SENSOR, STEERING 9015950199 ** Std Part 84250A SWITCH ASSY, STEERING PAD 84247A SWITCH, STEERING PAD, LH ** 45-04 |
Scheme 7
|
(0606- ) ｼｰﾄ 1/2 ILLUST NO. 6 OF 8 |
Click part number in the scheme or in the list: 84921A KNOB, POWER SEAT SWITCH (FOR RECLINING)84921B KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 84922 SWITCH, FRONT POWER SEAT 9016740044 ** Std Part 89715 COMPUTER, FOLD SEAT CONTROL 84923 SWITCH, REAR POWER SEAT 9418560600 ** Std Part |
Scheme 8
|
(0606-1204) ｼｰﾄ 2/2 ILLUST NO. 7 OF 8 |
Click part number in the scheme or in the list: 84920 SWITCH ASSY, POWER SEATC8560 RELAY ASSY, LIFTER 827111E360 ** Std Part C2593 BRACKET, WIRELESS BOX, FR ** 71-51 84290 SWITCH ASSY, LIMIT C8410A SWITCH ASSY, POWER LIFT CONTROL C8545A RELAY, POWER LIFT CONTROL |
Scheme 9
|
(1204- ) ｼｰﾄ 2/2(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ) ILLUST NO. 7 OF 8 |
Click part number in the scheme or in the list: 84290 SWITCH ASSY, LIMIT84920 SWITCH ASSY, POWER SEAT 84920L SWITCH ASSY, POWER SEAT, NO.2 85999H BRACKET, RELAY C8560 RELAY ASSY, LIFTER 827111A750 ** Std Part 827111E360 ** Std Part 9326056008 ** Std Part 9326963016 ** Std Part 9353054010 ** Std Part C8410A SWITCH ASSY, POWER LIFT CONTROL C8545A RELAY, POWER LIFT CONTROL |
Scheme 10
|
(0606- ) ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ ILLUST NO. 8 OF 8 |
Click part number in the scheme or in the list: 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)9090148003 ** Std Part 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84190 SWITCH ASSY, FOLD SEAT 9017906298 ** Std Part 8271135060 ** Std Part 9015960303 ** Std Part 9018906197 ** Std Part 84930 SWITCH ASSY, DOOR CONTROL 84963A SWITCH, POWER SLIDE DOOR CONTROL, NO.2 85975B RELAY, SLIDE DOOR CLOSER, RH 84840G SWITCH ASSY, BACK DOOR OPENER 85531 SOCKET, POWER OUTLET 88630Y RELAY, REAR COOLER 84040 MASTER SWITCH ASSY,MULTIPLEX NETWORK 9016440103 ** Std Part 9011908103 ** Std Part 84810 SWITCH ASSY, POWER WINDOW REGULATOR 84810D SWITCH ASSY, POWER WINDOW REGULATOR, REAR 86210A INVERTER ASSY, VOLTAGE 89747C BUZZER, POWER SLIDE BACK DOOR WARNING 85530 SOCKET ASSY, POWER OUTLET, NO.1 84963B BULB, POWER SLIDE CONTROL SWITCH, NO.1 83320 GAGE ASSY, FUEL SENDER C8460A SWITCH ASSY, LIMIT, LH NO.2 9155180608 ** Std Part |
