Hv inverter for Estima AHR10W
|
Here are parts you've selected:
| ||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
Scheme 2
|

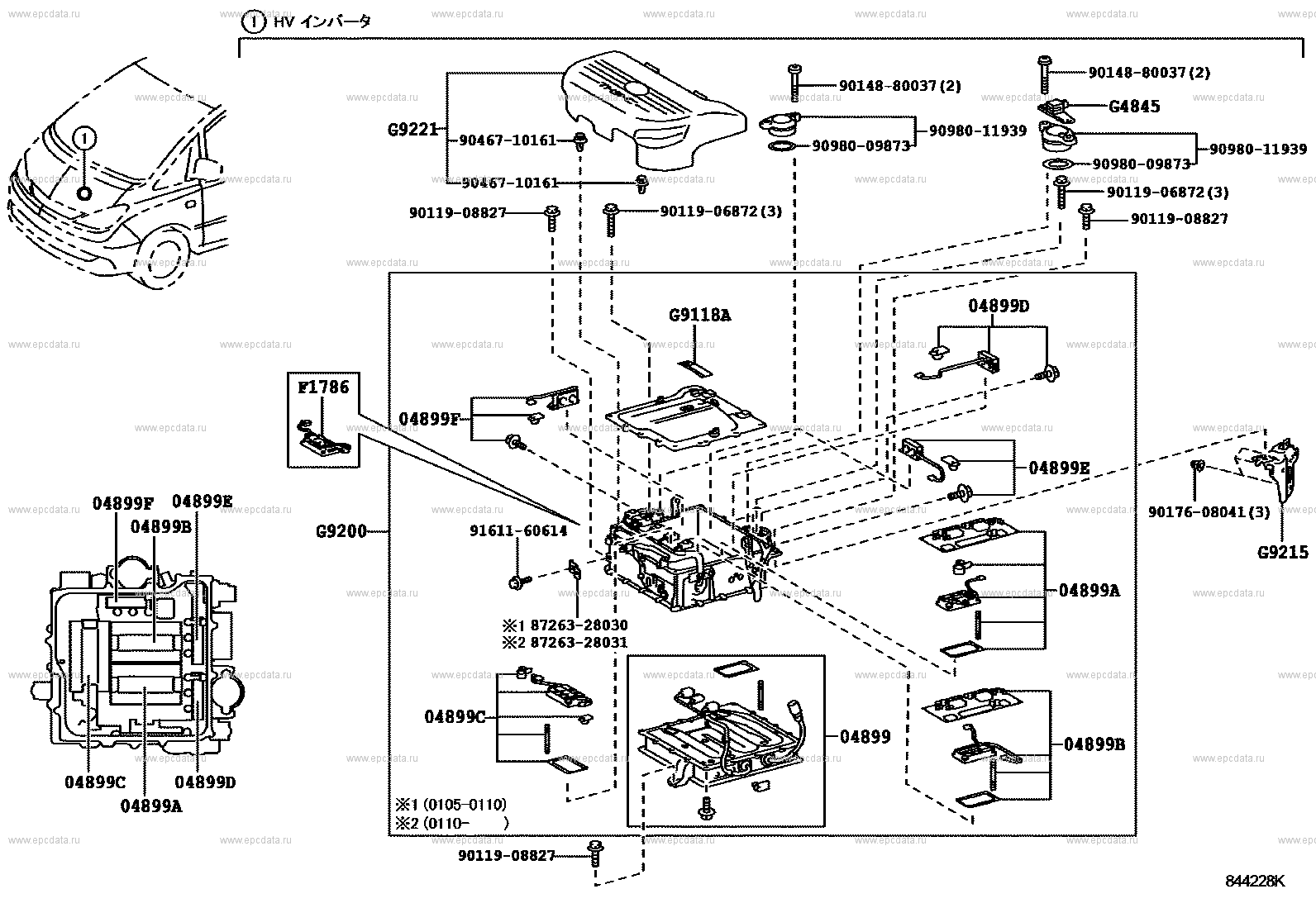

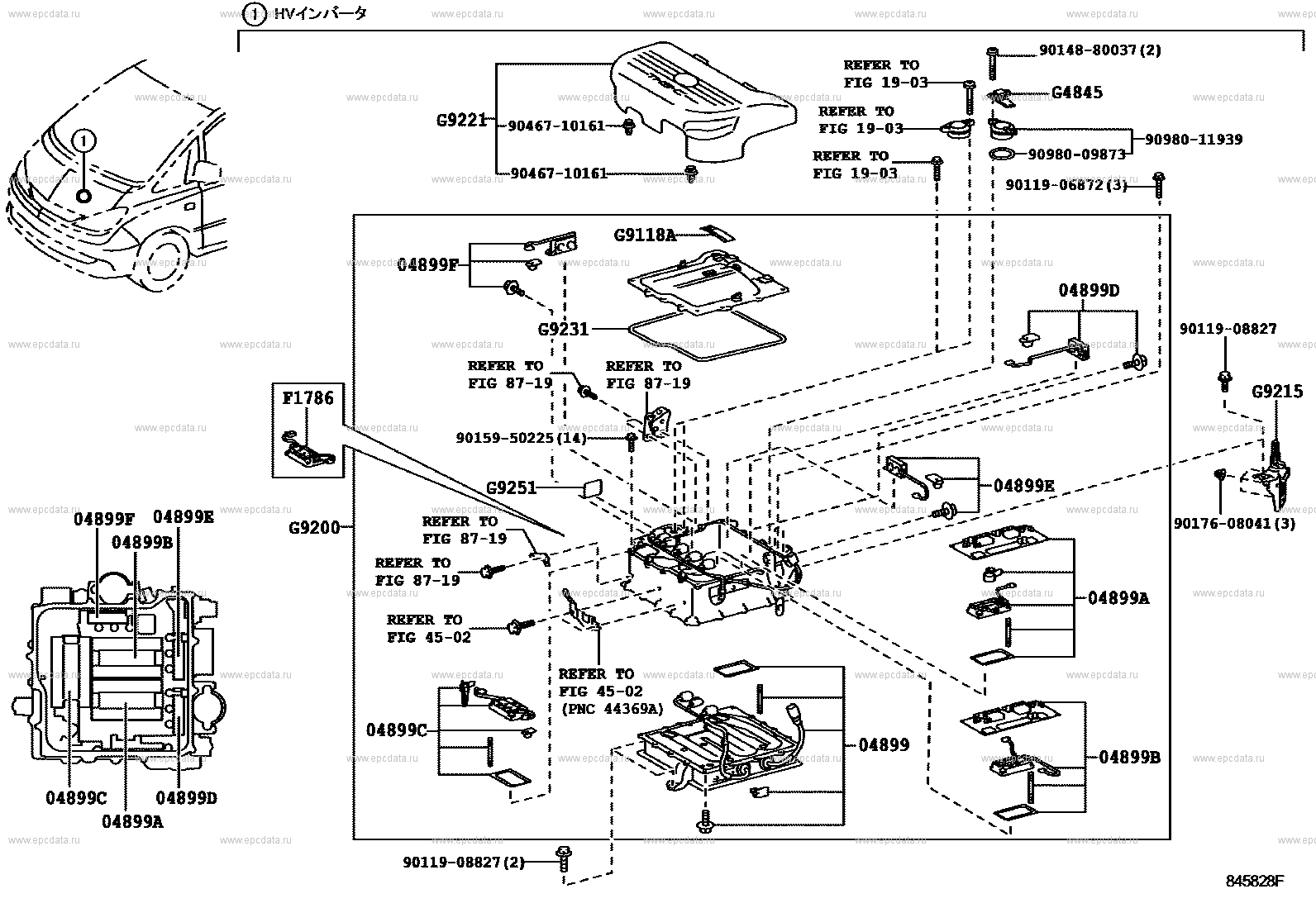

(0308- ) HVｲﾝﾊﾞｰﾀ ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: ** 45-02** 19-03 ** 87-19 04899 CONVERTER KIT, HV 04899A TRANSISTOR KIT, POWER MODULE INTELLIGENT(FRONT IPM) 04899D SENSOR KIT, INVERTER CURRENT(FRONT IPM) 04899F SENSOR KIT, INVERTER CURRENT(STARTER IPM) 04899E SENSOR KIT, INVERTER CURRENT(REAR IPM) 04899C TRANSISTOR KIT, POWER MODULE INTELLIGENT(STARTER IPM) G9118A LABEL, ELECTRIC VEHICLE UNIT CONTROLLER CAUTION, NO.1 G9231 GASKET, INVERTER COVER G9200 INVERTER ASSY, W/CONVERTER 9011908827 ** Std Part 9017608041 ** Std Part G9215 BRACKET, INVERTER, NO.2 G4845 SENSOR, CIRCUIT BREAKER, NO.1 9014880037 ** Std Part 9011906872 ** Std Part 04899B TRANSISTOR KIT, POWER MODULE INTELLIGENT(REAR IPM) 9015950225 ** Std Part G9251 SEAT, INVERTER NAME 9046710161 ** Std Part G9221 COVER, INVERTER 9098011939 ** Std Part 9098009873 ** Std Part F1786 TRANSISTOR, POWER MODULE INTELLIGENT, NO.1 |
Scheme 3
|

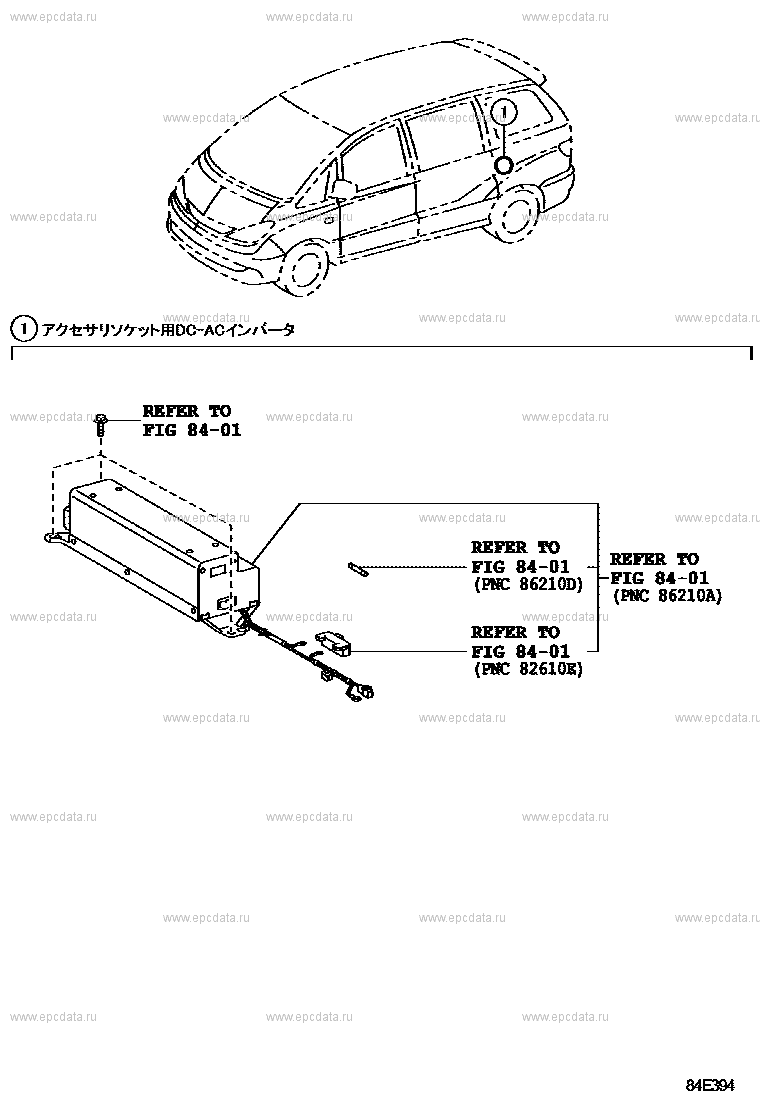

(0105- ) ｱｸｾｻﾘｰｿｹｯﾄﾖｳ DC-ACｲﾝﾊﾞｰﾀ ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: ** 84-01 |
