Headlamp for Estima ACR50W

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0601-0812)AERAS,G ﾃﾞｨｽﾁｬｰｼﾞ ﾍｯﾄﾞﾗﾝﾌﾟ & W(AFS) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 85669 PACKING, HEADLAMP LEVELING MOTOR BASE 81107 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH 81510C BULB (FOR FRONT TURN SIGNAL LAMP) 81515B SOCKET, FRONT TURN SIGNAL LAMP 81615D SOCKET, CLEARANCE LAMP 81110D BULB(FOR HEADLAMP, NO.2) 81144 COVER, HEADLAMP, NO.1 81610F BULB(FOR CLEARANCE LAMP) 81110L BULB, DISCHARGE HEADLAMP 53271A BRACKET, HEADLAMP MOUNTING 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 85661 MOTOR, HEADLAMP LEVELING, RH 85662 MOTOR, HEADLAMP LEVELING, LH 81110 HEADLAMP ASSY, RH 81150 HEADLAMP ASSY, LH 9015950311 ** Std Part 9018905142 ** Std Part 9007502727 ** Std Part 9018905050 ** Std Part 81134 GASKET, HEADLAMP 81108 COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH 81129A REFLECTOR, HEADLAMP, RH 81169 REFLECTOR, HEADLAMP, LH 81125A CORD, HEADLAMP, RH 81165 CORD, HEADLAMP, LH 81125 CORD, HEADLAMP 81139 COVER, HEADLAMP SOCKET 9007515508 ** Std Part

Scheme 2

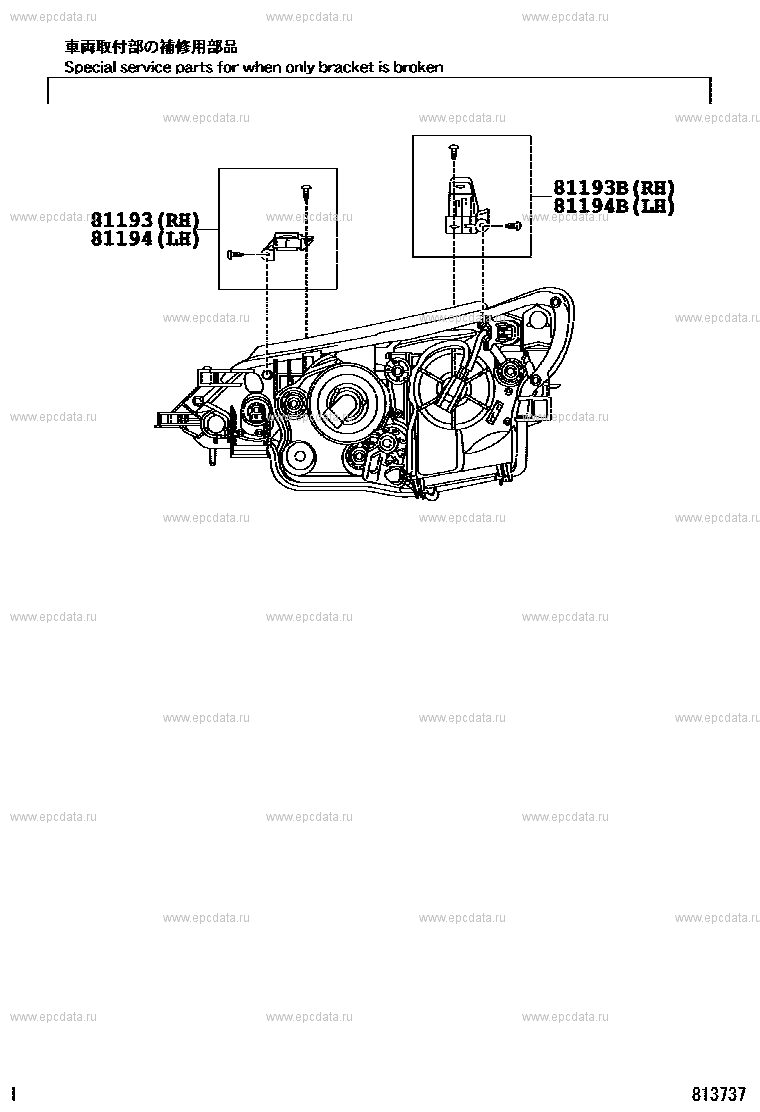

(0601-0812) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 81193B RETAINER, HEADLAMP PROTECTOR, UPR RH NO.2 81194B RETAINER, HEADLAMP PROTECTOR, UPR LH NO.2 81193 RETAINER, HEADLAMP PROTECTOR, UPR RH 81194 RETAINER, HEADLAMP PROTECTOR, UPR LH

Estima ACR50W
