Antenna for Estima ACR50W
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

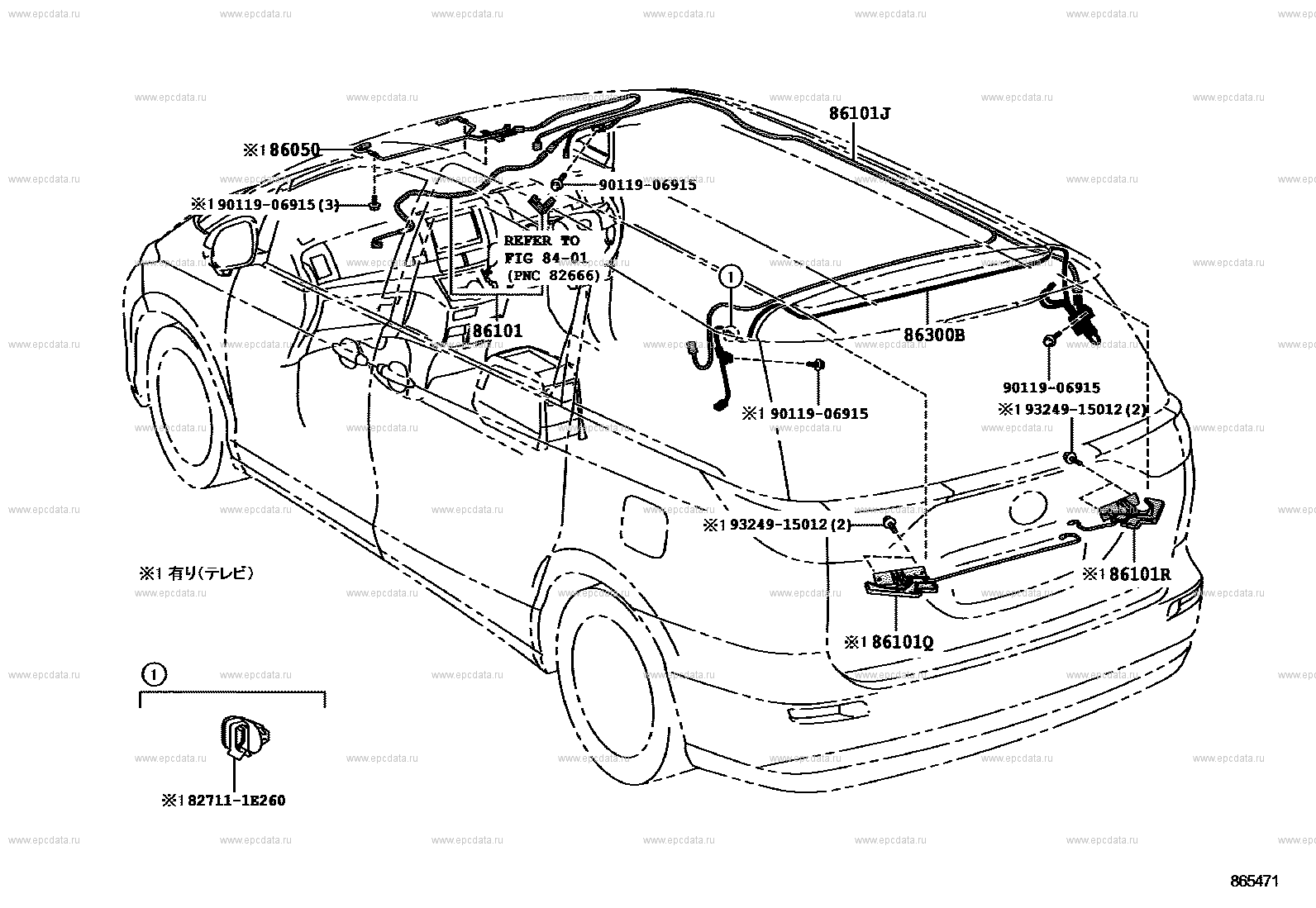

Scheme 1
|
(0601-0812) ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 86101J CORD SUB-ASSY, ANTENNA, NO.286050 ANTENNA ASSY, TELEVISION 86300B ANTENNA ASSY, AMPLIFIER, NO.1 86101 CORD SUB-ASSY, ANTENNA 9011906915 ** Std Part 827111E300 ** Std Part 827112C150 ** Std Part |
Scheme 2
|
(0601-0812) ｱﾘ(ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ ﾁｭｰﾅ) ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 86092A BRACKET, DIGITAL TELEVISION, REAR86842E CABLE, DIGITAL TELEVISION 82822E BRACKET,CONNECTOR BLOCK 82667A HOLDER, CONNECTOR 86092 BRACKET, DIGITAL TELEVISION, FRONT 86091 PARTS SET, DIGITAL TELEVISION 86050F ANTENNA ASSY, TELEVISION 86101Q CORD SUB-ASSY, ANTENNA, NO.4 86101R CORD SUB-ASSY, ANTENNA, NO.5 86101S CORD SUB-ASSY, ANTENNA 86050E ANTENNA ASSY, TELEVISION 86101D CORD SUB-ASSY, ANTENNA, NO.3 86101T CORD SUB-ASSY, ANTENNA 9011908826 ** Std Part 9356855014 ** Std Part 9018305094 ** Std Part 9155180618 ** Std Part 9017906274 ** Std Part 9011906915 ** Std Part 9015350012 ** Std Part ** 86-01 9324915012 ** Std Part |
Scheme 3
| (0812-1204) |
Click part number in the scheme or in the list: 9015350010 ** Std Part827112C150 ** Std Part 86092 BRACKET, DIGITAL TELEVISION, FRONT 86091 PARTS SET, DIGITAL TELEVISION 86092A BRACKET, DIGITAL TELEVISION, REAR ** 86-01 9011906915 ** Std Part 86050 ANTENNA ASSY, TELEVISION 86101 CORD SUB-ASSY, ANTENNA 86101J CORD SUB-ASSY, ANTENNA, NO.2 86300B ANTENNA ASSY, AMPLIFIER, NO.1 86050E ANTENNA ASSY, TELEVISION 7539628070 ** Std Part 827111E260 ** Std Part 86101R CORD SUB-ASSY, ANTENNA, NO.5 9324915012 ** Std Part 86101Q CORD SUB-ASSY, ANTENNA, NO.4 ** 84-01 |
Scheme 4
| (1204-1304) |
Click part number in the scheme or in the list: 9011906915 ** Std Part86050 ANTENNA ASSY, TELEVISION 86101 CORD SUB-ASSY, ANTENNA 86101J CORD SUB-ASSY, ANTENNA, NO.2 86300B ANTENNA ASSY, AMPLIFIER, NO.1 86050E ANTENNA ASSY, TELEVISION 7539628070 ** Std Part 827111E260 ** Std Part 86101R CORD SUB-ASSY, ANTENNA, NO.5 9324915012 ** Std Part 86101Q CORD SUB-ASSY, ANTENNA, NO.4 ** 84-01 |
Scheme 5
| (1304- ) |
Click part number in the scheme or in the list: 9011906915 ** Std Part86050 ANTENNA ASSY, TELEVISION 86101 CORD SUB-ASSY, ANTENNA 86101J CORD SUB-ASSY, ANTENNA, NO.2 86300B ANTENNA ASSY, AMPLIFIER, NO.1 827111E260 ** Std Part 86101R CORD SUB-ASSY, ANTENNA, NO.5 9324915012 ** Std Part 86101Q CORD SUB-ASSY, ANTENNA, NO.4 ** 84-01 |
